OPFXS Dig Deep MK3 Advanced Octave Down Bass Synth Pedal

OPFXS Dig Deep MK3 Advanced Octave Down Bass Synth Pedal

by OPFXS
$499.00
$499.00 - $499.00
$499.00
$449.00
$449.00 - $449.00
$449.00
Seen it cheaper? Ask us for a PRICE MATCH

or 4x fortnight payments of $112.25 AUD with ⓘ

AU & NZ Shipping Free shipping over $99 within Australia and over $199 to New Zealand. Excludes bulky, heavy and rural deliveries.
14-day returns Eligible returns may be accepted as store credit within 14 days, subject to product condition and our returns policy.
Manufacturer warranty All new products are covered by the applicable manufacturer warranty and your rights under Australian Consumer Law.
Shipping & Returns · Contact us
{formbuilder:6507}

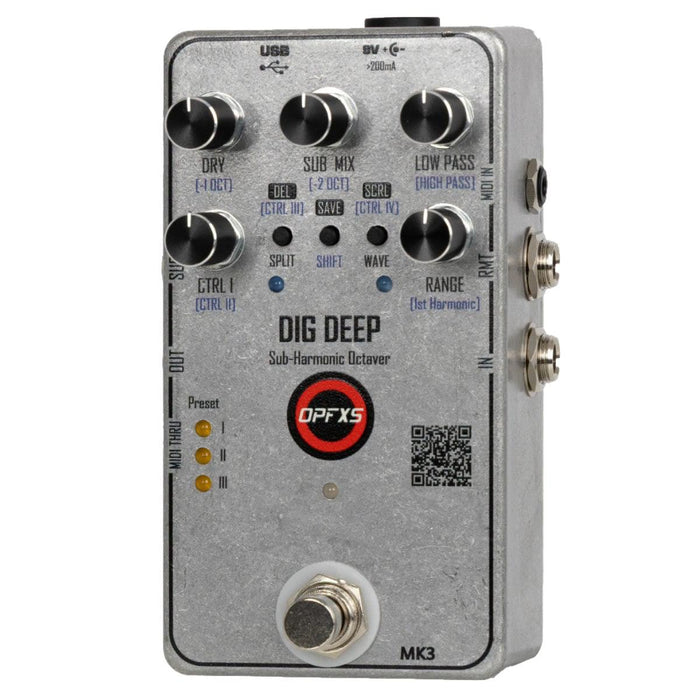

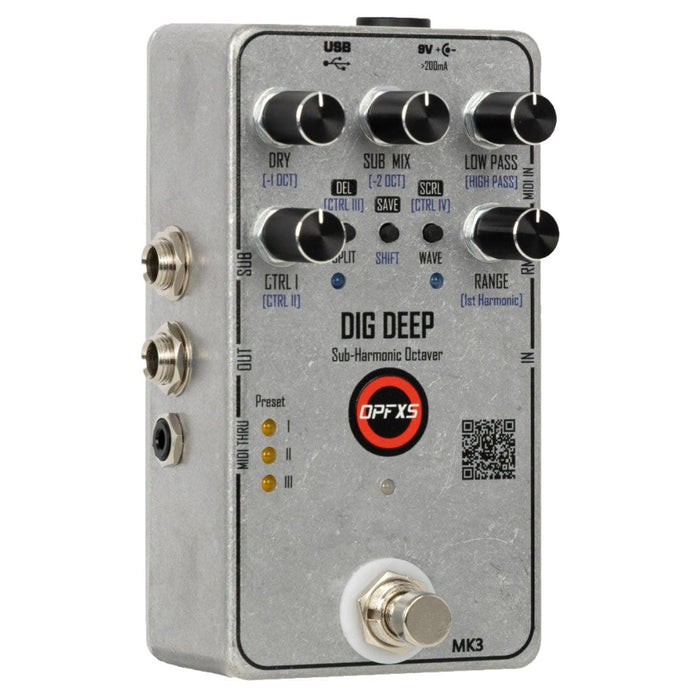

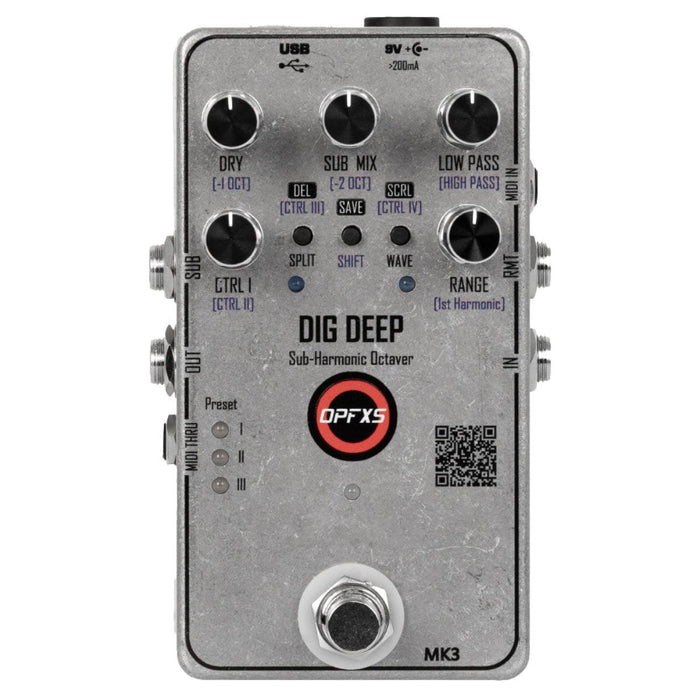

The OPFXS Dig Deep MK3 is an advanced octave-down pedal designed to generate a deep, monophonic bass line from your guitar signal while keeping the upper strings clear and unaffected. It is ideal for players who want to add real low-end weight, thicken a thin guitar tone, or create bass-style parts directly from a guitar.

The MK3 expands on the original Dig Deep design with 5 control knobs, two control buttons and a SHIFT function for access to primary and secondary parameters. You can blend the dry signal, sub mix, -1 octave and -2 octave voices, then shape the generated bass tone with low-pass, high-pass, range and harmonic controls.

Tracking is designed to work across arpeggios, chord strumming, complex chords and inversions, with advanced tracking tools including Dominant Notes Cut and High Notes Cut. The Split function also lets you separate the dry and sub signals, sending the dry guitar to the main output and the generated bass signal to the dedicated SUB output.

With 3 onboard presets, USB-C editor connectivity, MIDI In/Thru, remote control options and low-latency response of approximately 5–7ms, the Dig Deep MK3 is a powerful tool for solo performers, loopers, experimental players and guitarists who want convincing bass depth from a compact pedal.

• Advanced octave-down bass generation pedal
• Creates a monophonic bass line from guitar signal
• Designed to keep upper strings clear and unaffected
• Low-latency response of approximately 5–7ms
• Dry, Sub Mix, -1 Oct and -2 Oct level control
• Low Pass and High Pass filtering for sub tone shaping
• Range control for tracking area across the fretboard
• 1st Harmonic control for bass voice character
• Wave button for selectable sub waveforms
• Split mode sends dry and sub signals to separate outputs
• Dominant Notes Cut and High Notes Cut tracking functions
• Works with 6-string, 7-string, baritone, semi-acoustic and acoustic guitars
• Up to 3 onboard presets
• Presets can be loaded by footswitch, remote switch or MIDI
• Assignable CTRL I, CTRL II, CTRL III and CTRL IV functions
• USB-C for power, editor connection, updates and customization
• MIDI In and MIDI Thru via 3.5mm TRS mini jack
• Mono input, main output and dedicated SUB output

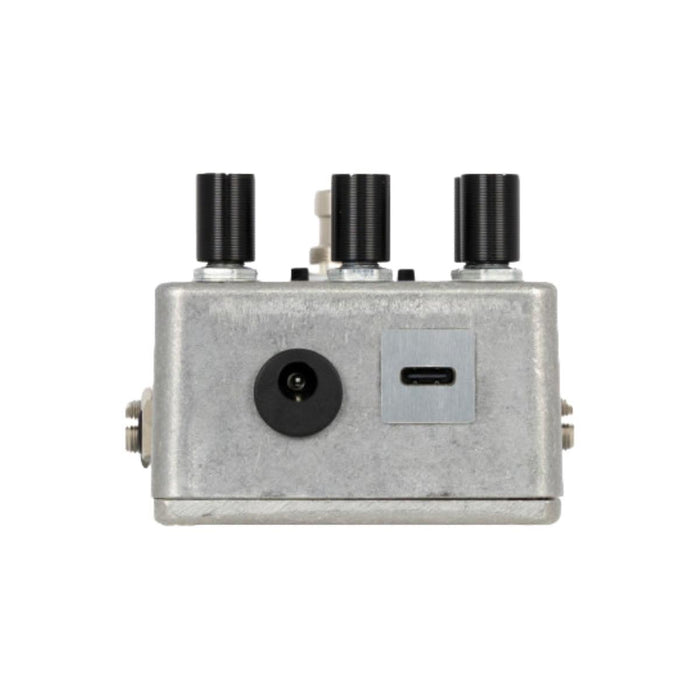

• Powered by USB-C or 9V DC centre negative power supply
• Over-voltage, polarity inversion and over-current protection
• Made in Italy
