Morningstar | ML5R | Re-Orderable Loop Switcher | MIDI Controlled
Maintain order. Or not.
ML5R is a reorderable loop switcher that redefines your approach to audio effects. Experience entirely new sounds from your existing effects - just by switching up their order.
Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.
No editor required.
Everything you can do on ML5R, you can do on ML5R.

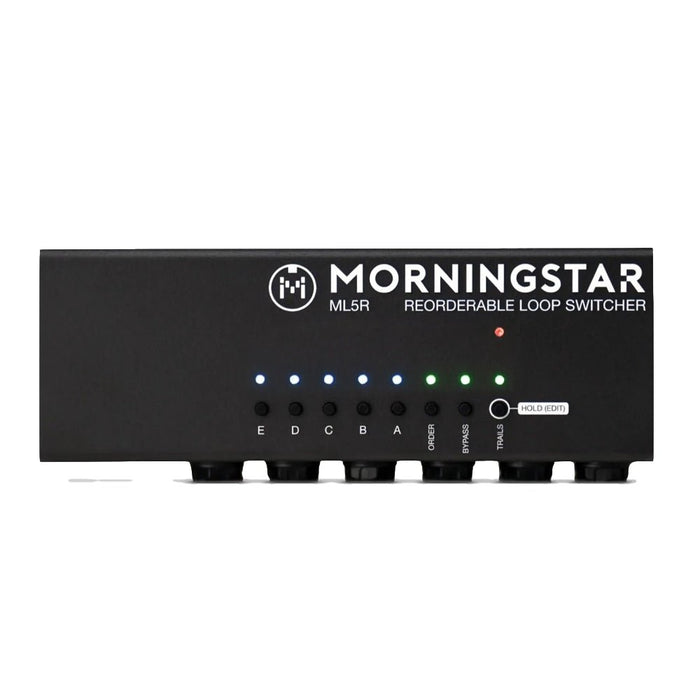

Set loop Order, Bypass and Trails with just a few simple switch presses.
Simply press the loop buttons in your desired order, and the effect loops will be arranged accordingly. In the example below, the order is B > A > D > C > E.
Select the loops that you want engaged when you recall an ML5R preset.
Bypassed loops can be engaged individually after a preset has been recalled.
Enable spillover trails for your desired loop.
Save your custom loop order, bypass states and trails as a preset in any of the 128 user slots.
Simply send ML5R a Program Change message from 0 to 127 to recall your desired presets.
Full MIDI Capabilities.
Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute and more. Take full control of ML5R with your MIDI controller.
If you use a Morningstar MIDI controller, a dedicated ML5R message type allows quick and easy access to all functions without needing to refer to any MIDI chart.
TECH SPECS
Dimensions 169 x 58 x 58 mm (400g)
Memory No. of presets: 128

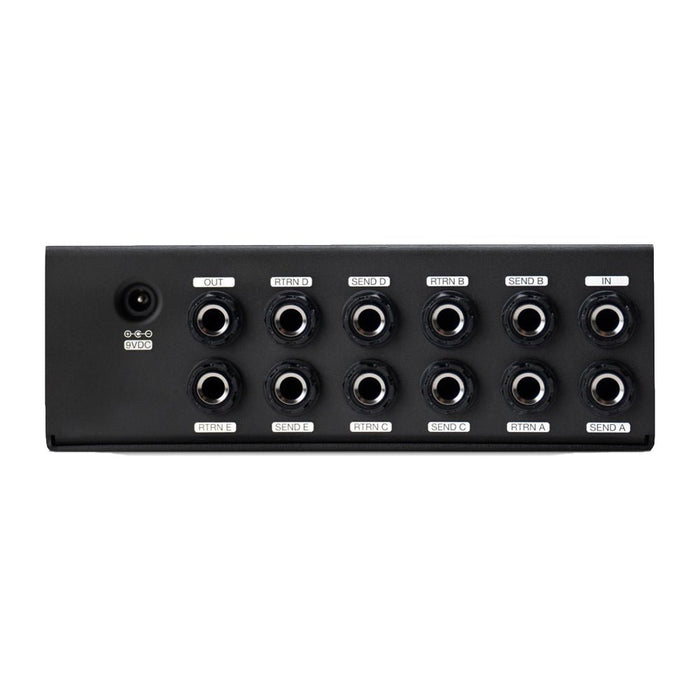

I/O Ports (buffered)
1x Audio In
1x Audio Out
5x Sends (mono)
5x Returns (mono)
1x 5-pin MIDI In
1x 5-pin MIDI Thru
Impedance Input/Returns: 1M ohm
Output/Sends: Approx 100 ohm
Power Requirements: 9-18V DC center negative Minimum 160mA
