Download the Latest Firmware updates & Desktop Editor HERE

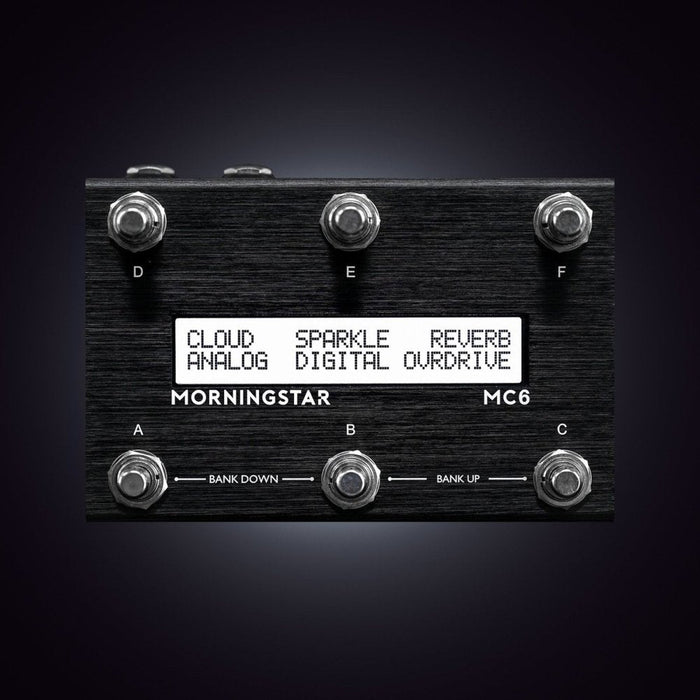

The MC6 is a fully programmable midi controller, capable of sending up to 16 different MIDI messages per switch. Each of these messages can be triggered separately by performing different actions, giving you precise and customizable control with just one switch. With 30 banks of 6 switches in a compact low-profile chasis, the MC6 sits comfortably on any pedalboard, meeting the needs of even the most demanding musician.
FULLY PROGRAMMABLE
30 banks of 12 preset slots, and each preset capable of sending up to 16 different MIDI messages
MULTI-USE INPUTS
Connect expression pedals or aux switches to enable access to more presets and functions
EASY EDITING
Easily program on the MC6 itself, or with the PC/Mac Editor. Programming the MC6 has never been easier
SUPER COMPACT
Allows for easy integration into pedalboards and rigs. 145mm x 95mm x 45mm
USB CLASS COMPLIANT
With MIDI over USB, control your favourite DAWs and music software like Ableton Live and Logic Pro
POWER OPTIONS
Can be powered by USB buss power, MIDI phantom power or standard 9-12v DC power supply
ACTION-BASED CONTROL
Send different messages depending on what action you perform. Press, Release, Double Tap, Long Press and more.
MIDI MESSAGES TYPES
Each switch can send up to 16 different MIDI messages through 16 different MIDI channels. Choose from a wide range of useful MIDI message types including PC, CC, Note on/off, SysEx, MIDI Clock (preset or tap), Preset Scroll, Bank Up/Down, Toggle Page and more.
CONNECTIVITY
MIDI IN
Receive MIDI messages to control the MC6, or relay messages through the MIDI OUT port.
MIDI OUT
Send MIDI messages generated by the MC6, and relay messages received from the MIDI IN port. Phantom power the MC6 via MIDI pins 6 & 7.
USB
Send USB MIDI messages to your PC or Mac. MC6 can be powered via USB.
9VDC IN
Power the MC6 with a 9-12VDC power supply. Requires at least 75mA.
EXPRESSION INPUTS
Connect expression pedals to send sweeping CC messages, or aux switches (up to 6) for additional presets.
POWERFUL MIDI EDITOR
While you can program your switches on the MC6 itself, it also comes with a free and intuitive desktop editor to make programming even faster. It allows you to view all your preset settings on one screen, quickly make changes and easily name your switches.
