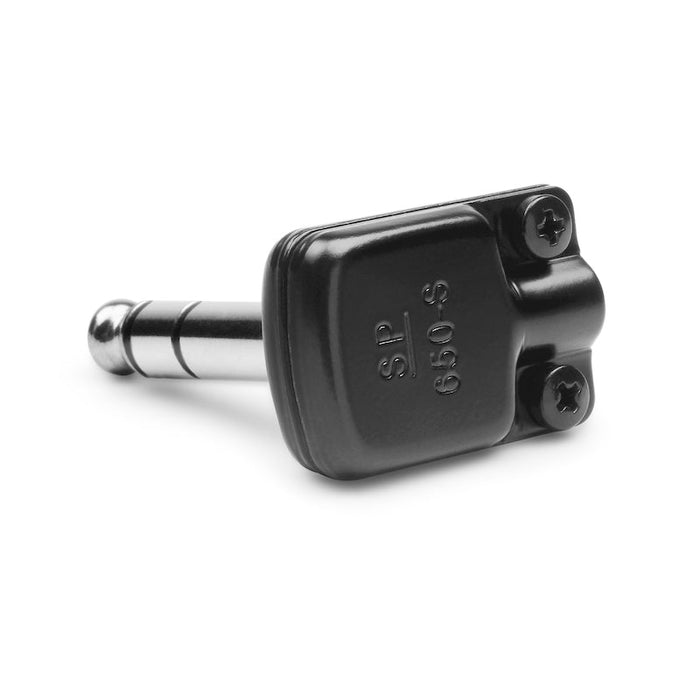

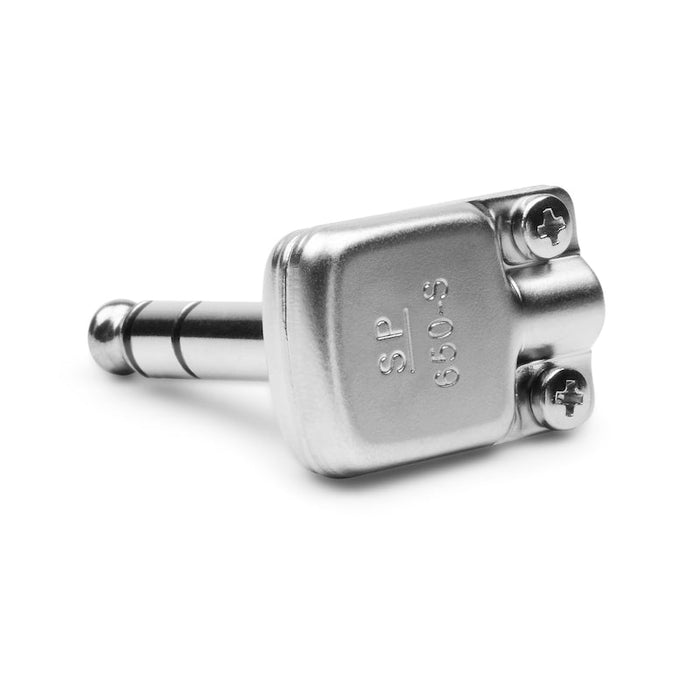

The SP650-S right angle TRS connector is unlike anything of its kind! Currently the lowest profile soldered TRS right angle connector on the market, the SP550-S features a thickness of only 9.7mm. (28.0 x 18.5 x 9.7 mm)
What makes SP650-S stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.
With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!
The square connector allows it to be plugged adjacent to other square plug connectors, unlike the common "pancake" connectors within the industry.
The SP550-S connector fits cables with an O.D. of up to 6.3MM.
- Ultra–low–profile connector for highest packing density
- Serviceable, all–metal plug designed to snug–fit smaller diameter cables for optimum strain relief and improved EMI protection

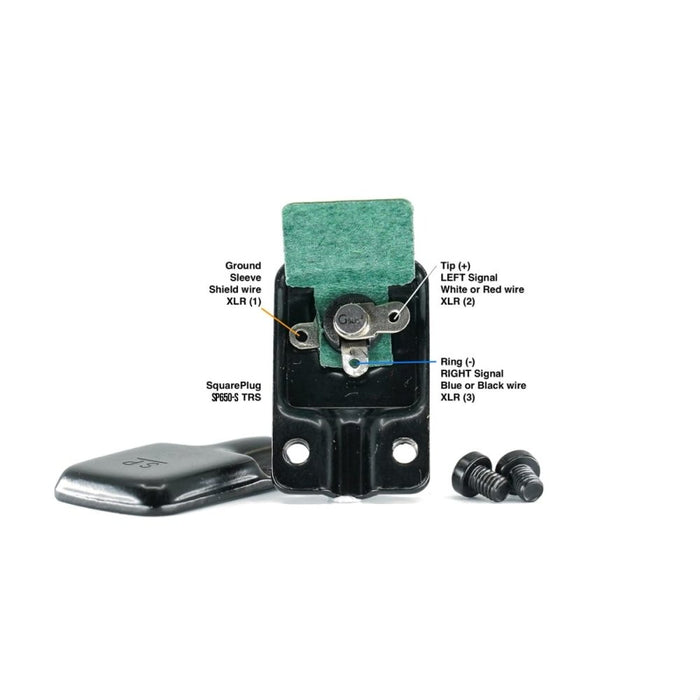

- 3 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting
Works Great with Van Damme 268-001-000 (OD 3.6mm), Mogami W2549 (OD 6mm), Mogami W2528 For Y-Cable
Compatible Switching systems are,
RJM Mastermind PBC/10
RJM Mastermind PBC/6X
RJM Mini Effect Gizmo
Disaster Area DPC5
Disaster Area DPC8EZ
Lehle Parallel L / Little Dual / SGoS series / P-Split II / 1AT3
Musicom Lab EFX 6M / 62M / 8L / MKIV / MKV / LE
The Gig Rig Quarter Master QMX2 / 4 / 6 / 8 / 10
SP400, SP500 and SP550 series are NOT compatible with,
BOSS ES5 / ES8, The Gig Rig G2 and VoodooLab Hex.
