Zoom | LiveTrak L-20R | 20Ch Wireless Digital Mixer / Recorder | 22-in / 4-out USB Audio Interface

by Zoom
Original price $823.00
Original price $823.00 - Original price $823.00
Original price $823.00
Current price $810.00
$810.00 - $810.00
Current price $810.00

or 4x fortnight payments of $202.50 AUD with


The Zoom L20R LiveTrak brings you a rack-mountable digital mixer. Giving you the ability to control your live mix straight from the stage using your iPad. Sporting wireless control, 20 discrete channels, 22 tracks of recording, and six custom monitor mixes. Above all, the L20R is a complete solution for any venue. While also featuring 16 mono mic/line inputs and two stereo inputs; so your L20R will handle even the most demanding stage applications. As well as offering two EFX busses and a 3-band EQ, pan controls, and compressor on each channel. Giving you complete control over your sound.

So jump on stage and record 20 channels and a stereo mix directly to your SD card. All while combining with the  L-20 Control app. Then, transfer your tracks into your favourite DAW for any final edits.

Overall, the L20R is a great digital mixer for any venue.

  • 20-channel rackmount digital mixer (16 mono/2 stereo)
  • 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
  • 22-track 24-bit/96kHz recording directly to an SD card
  • Record up to 48kHz to a computer and an SD card simultaneously
  • Create customizable, savable headphone mixes for up to 6 band members
  • Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing

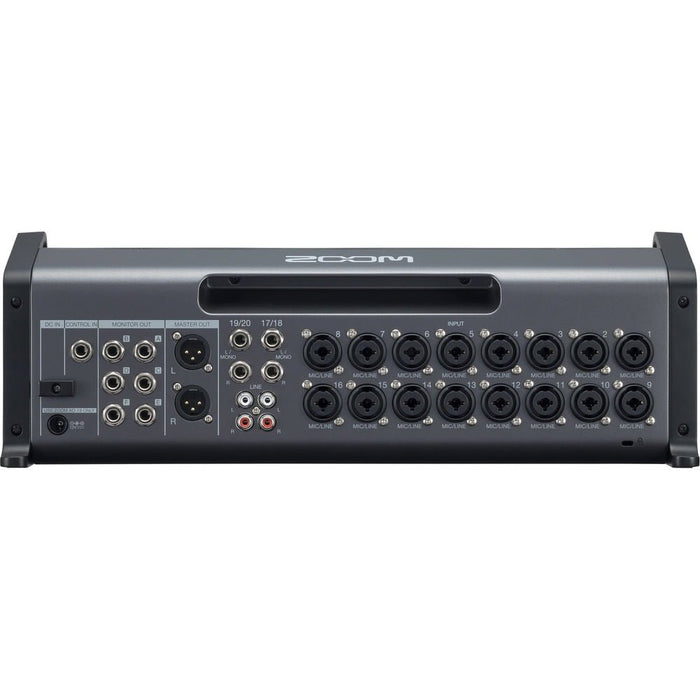

  • 16 combo jacks accommodate both XLR and 1/4″ connectors
  • 16 great-sounding mic preamps with phantom power and +60dB of gain
  • Channels 1–2 offer hi-Z inputs for your electric guitar or bass
  • Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
  • Each channel features a 3-band mid-parametric EQ and 20 built-in effects
  • Channels 1–16 include a dedicated compressor for controlling dynamics
  • Channels 3–16 have a -26dB pad for capturing loud sources
  • Clear 12-segment LED metering for keeping an eye on your levels
  • Save up to 9 scenes and recall your custom settings automatically
  • FOH engineer and 6 musicians can take command of their own mix via the Remote Mixer app for iPad
