Trickfish FlexCore Preamp Mike Pope Designed Onboard Bass Preamp - Layout 81 (500-FLEXCORE-81) - Gsus4

Trickfish FlexCore Preamp Mike Pope Designed Onboard Bass Preamp - Layout #81

by Trickfish Amplification
$549.00
$549.00 - $549.00
$549.00
$499.00
$499.00 - $499.00
$499.00
Seen it cheaper? Ask us for a PRICE MATCH

or 4x fortnight payments of $124.75 AUD with ⓘ

AU & NZ Shipping Free shipping over $99 within Australia and over $199 to New Zealand. Excludes bulky, heavy and rural deliveries.
14-day returns Eligible returns may be accepted as store credit within 14 days, subject to product condition and our returns policy.
Manufacturer warranty All new products are covered by the applicable manufacturer warranty and your rights under Australian Consumer Law.
Shipping & Returns · Contact us
{formbuilder:6507}

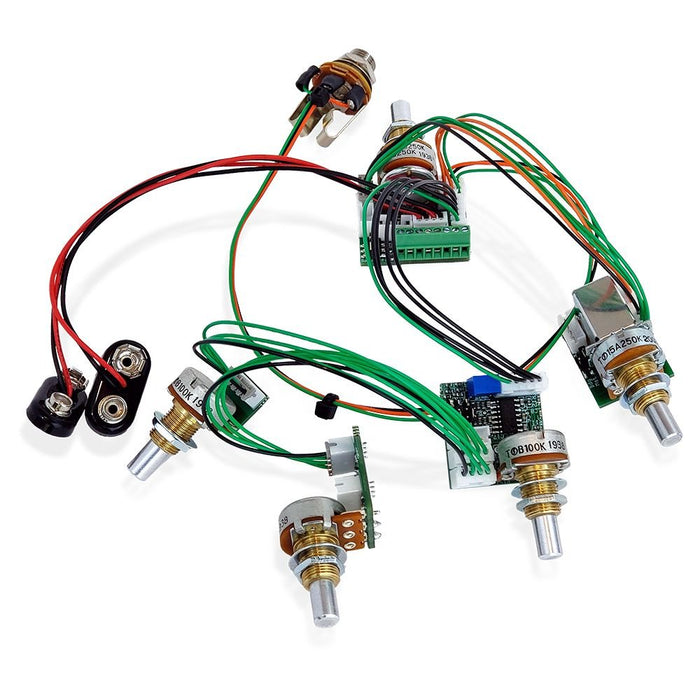

The Trickfish Flexcore System is a high-performance onboard bass preamp designed for players who want serious tone control built directly into their instrument. With its modular configuration system, Flexcore can be tailored for different pickup layouts, EQ requirements and control preferences, making it suitable for both bass upgrades and custom instrument builds.

Flexcore is designed as an internally mounted bass preamp with flexible options for one or two pickups, passive or active operation, and 2-band, 3-band or 4-band EQ configurations. Its plug-and-play wiring harnesses and solderless pickup terminals make installation much easier than many traditional onboard preamp systems.

The EQ section offers wide musical control, with selectable frequency points across treble, high mid, low mid and bass ranges. This gives players the ability to fine-tune the response of the instrument, from clean and natural enhancement through to more modern, focused and aggressive active bass tones. The uploaded product page also shows layout options for stacked volume/tone, pickup blend, stacked bass/treble and stacked mid controls.

Whether you are upgrading a favourite bass or building a new instrument from scratch, the Flexcore System gives you a powerful and highly configurable tone platform while keeping the control layout practical and player-friendly.

• Modular onboard bass preamp system
• Designed for internal bass guitar installation
• Configurable for one or two pickups
• Supports passive or active operation
• Available with 2-band, 3-band or 4-band EQ configurations
• Plug-and-play prewired harness system
• Solderless screw terminals for pickup connection
• Works with almost any pickup type
• 9V or 18V operation
• Wide-range EQ with selectable frequency points
• Treble: +/- 15dB at 6kHz or 10kHz
• High Mid: +/- 15dB at 1kHz or 1.8kHz
• Low Mid: +/- 12dB at 330Hz or 473Hz
• Bass: +/- 12dB at 46Hz or 90Hz

Layout #81

  • 4 Band EQ
  • Two Pickups
  • Master Volume & Pickup Blend
  • Passive Tone Control: Yes
  • Stacked Volume / Tone Control
  • Separate Bass / Treble
  • Stacked Hi Mid / Lo Mid
  • 18V / Premium Black Toggle Switch

All Flexcore systems are pre-wired for your convenience. We recommend you to download the manual for detailed a explanation of all the components and their functions.

DOWNLOAD THE MANUAL
