SquarePlug | SP600 | Low Profile Flat Right Angle TS Connector | up to 6.2mm OD

Original price $8.00 - Original price $9.00
Original price $9.00
$9.00 - $9.00
Current price $9.00

or 4x fortnight payments of $2.25 AUD with

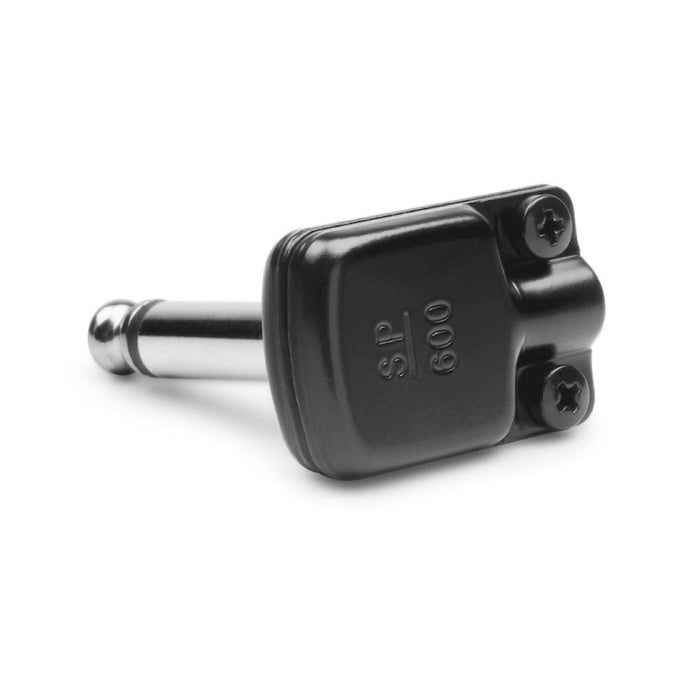

Colour: BLACK

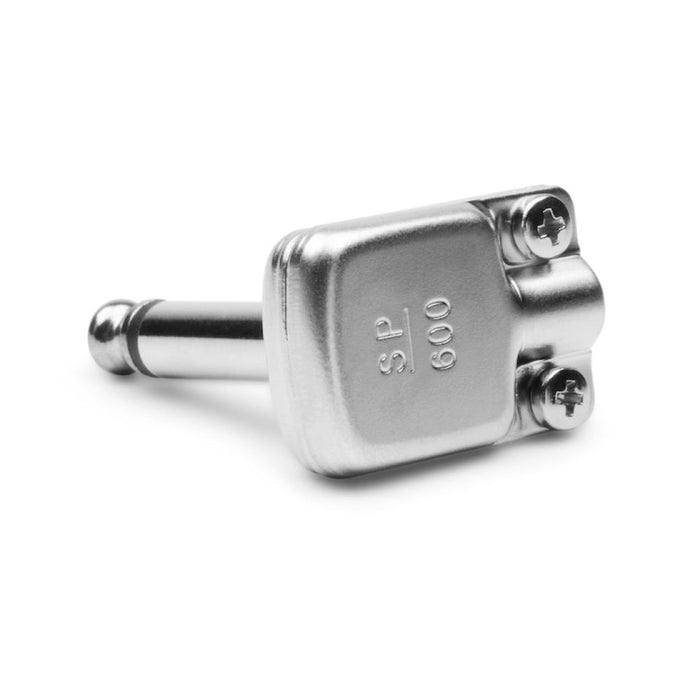

SquarePlug™ SP600 is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and much less than any currently available soldered and solder-less connectors.

What makes SP600 stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.

With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!

- Shares the same form-factor as SP500, SP600 is an ultra–low–profile connector measures only 9.7mm x 18.5mm x 28mm
- Serviceable, all–metal plug designed to snug–fit small diameter cables for optimum strain relief and improved EMI protection
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting

Works Great with Van Damme 268-011-000 and Mogami W2524

Compatible Switching systems are,
RJM Mastermind PBC/10
RJM Mastermind PBC/6X
RJM Mini Effect Gizmo
Disaster Area DPC5
Disaster Area DPC8EZ
Lehle Parallel L / Little Dual / SGoS series / P-Split II / 1AT3
Musicom Lab EFX 6M / 62M / 8L / MKIV / MKV / LE
The Gig Rig Quarter Master QMX2 / 4 / 6 / 8 / 10

SP400, SP500, SP600 and SP550 are NOT compatible with,
BOSS ES5 / ES8, The Gig Rig G2 and VoodooLab Hex.
