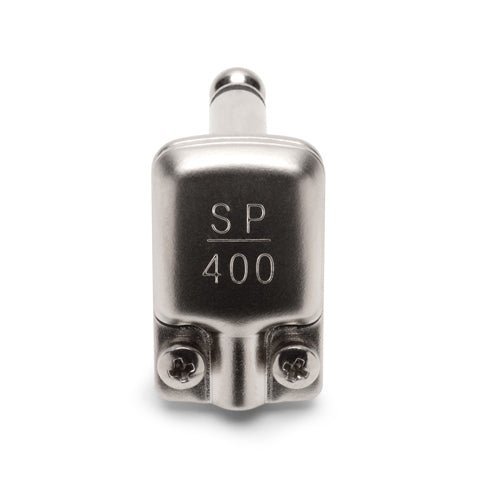

SquarePlug | SP400 | Low Profile Flat Right Angle TS Connector | up to 4.6mm OD

Original price $8.00 - Original price $8.00
Original price $8.00
$8.00 - $8.00
Current price $8.00

or 4x fortnight payments of $2.00 AUD with

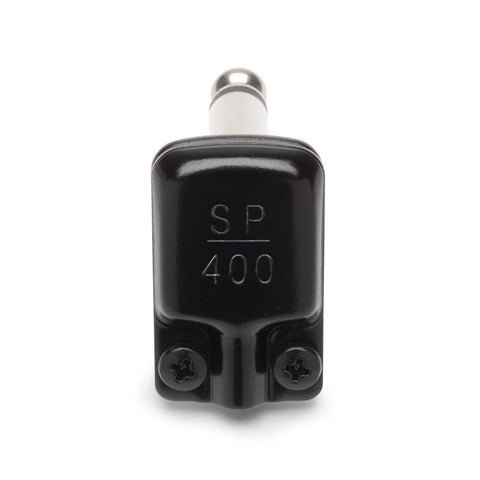

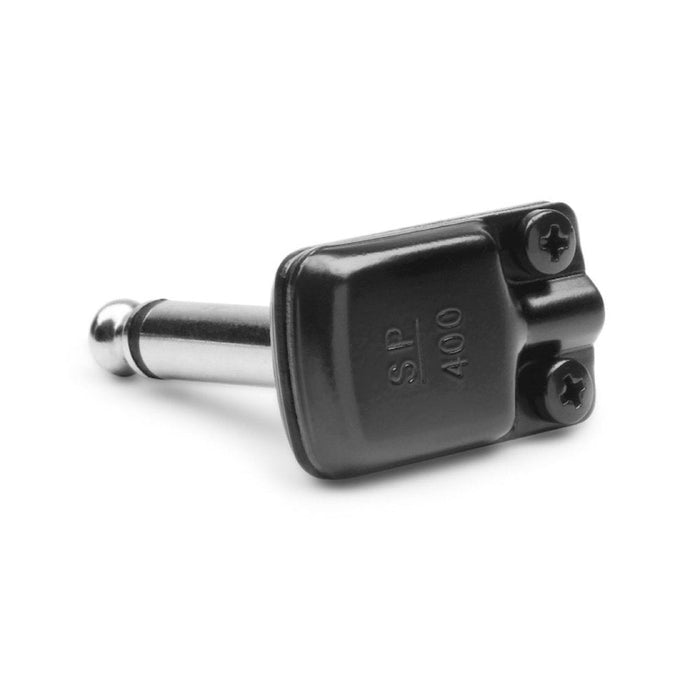

Colour: BLACK

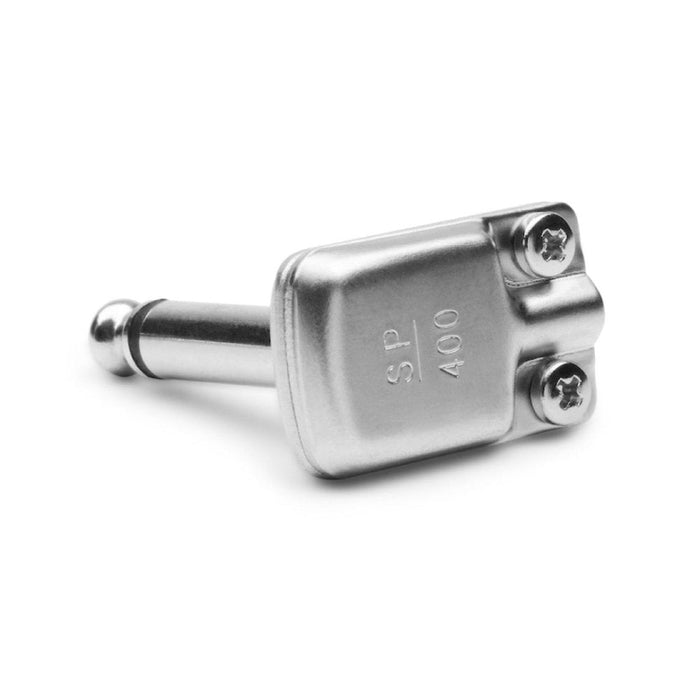

SquarePlug™ SP400 is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm which is much less than any currently available soldered and solder-less connectors.

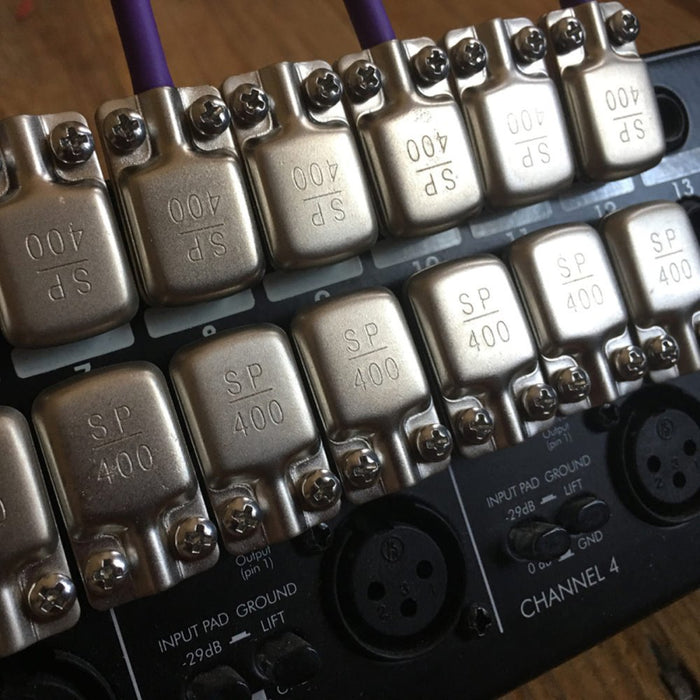

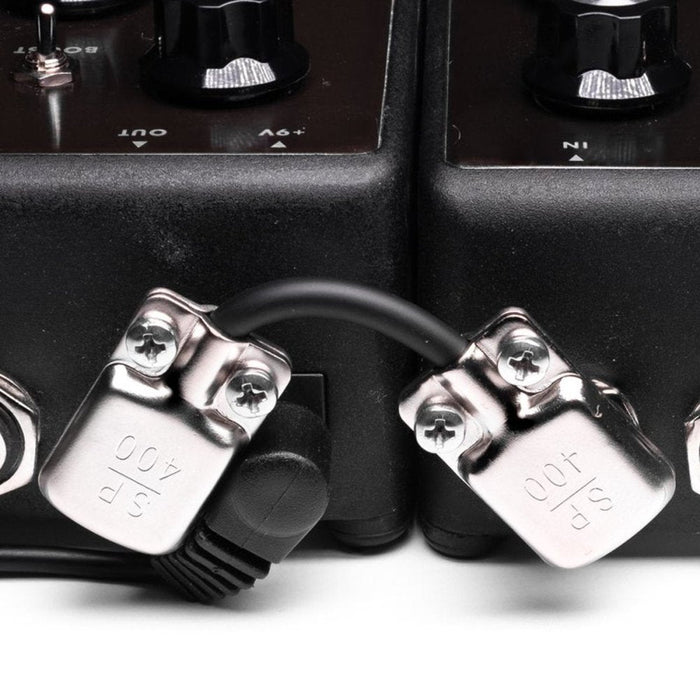

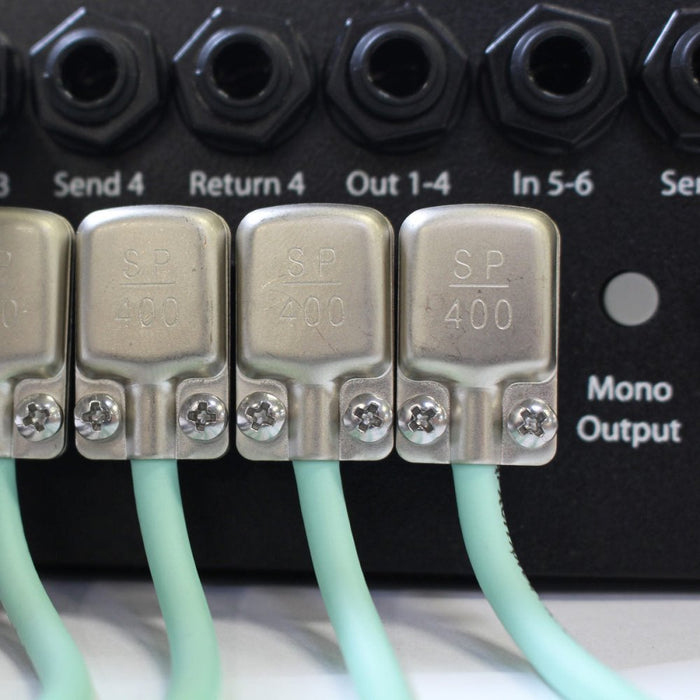

What makes SP400 stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.

With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!

- Ultra–low–profile connector [measures only 8.3mm / 0.326" Deep x 17mm / 0.67" Wide x 28mm / 1.10" Tall] for highest packing density

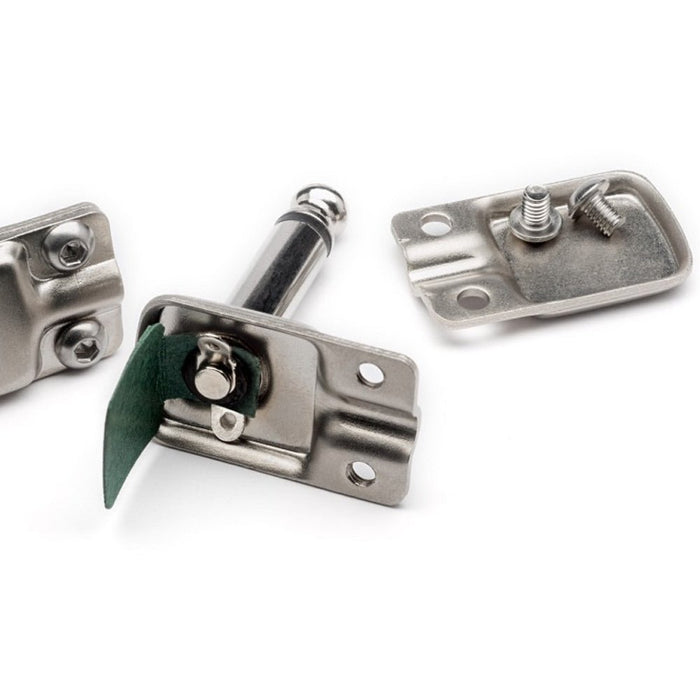

- Serviceable, all–metal plug designed to snug–fit smaller diameter cables (4 to 4.6mm) for optimum strain relief and improved EMI protection
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting

Works Great with Van Damme 268-005-000 (OD 4.5mm)Mogami W2333 (OD 4mm), W2319 (OD 5mm, but it gives SP400 a perfect snug fit!), Canare GS-4 and Belden 1865A & 8218

Compatible Switching systems are,
RJM Mastermind PBC/10
RJM Mastermind PBC/6X
RJM Mini Effect Gizmo
Disaster Area DPC5
Disaster Area DPC8EZ
Lehle Parallel L / Little Dual / SGoS series / P-Split II / 1AT3

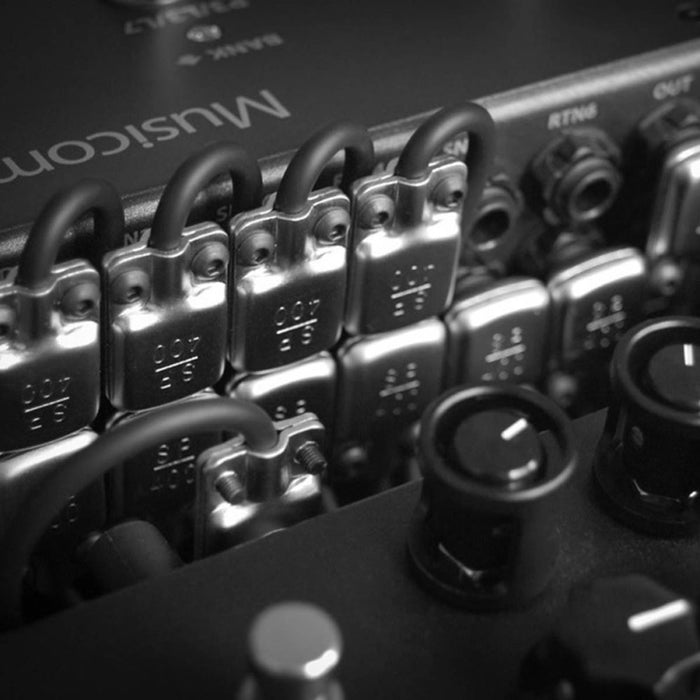

Musicom Lab EFX 6M / 62M / 8L / MKIV / MKV / LE
The Gig Rig Quarter Master QMX2 / 4 / 6 / 8 / 10

SP400, SP500 and SP550 are NOT compatible with,
BOSS ES5 / ES8, The Gig Rig G2 and VoodooLab Hex.
