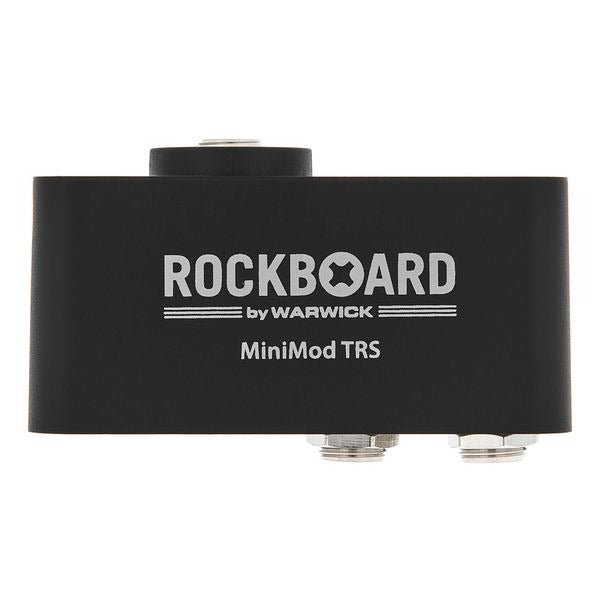

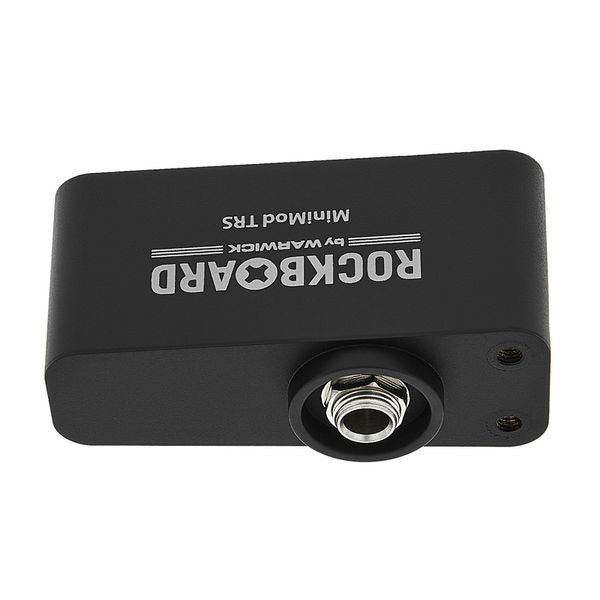

Rockboard | Mini MOD TRS | Pedalboard Mounting Solution

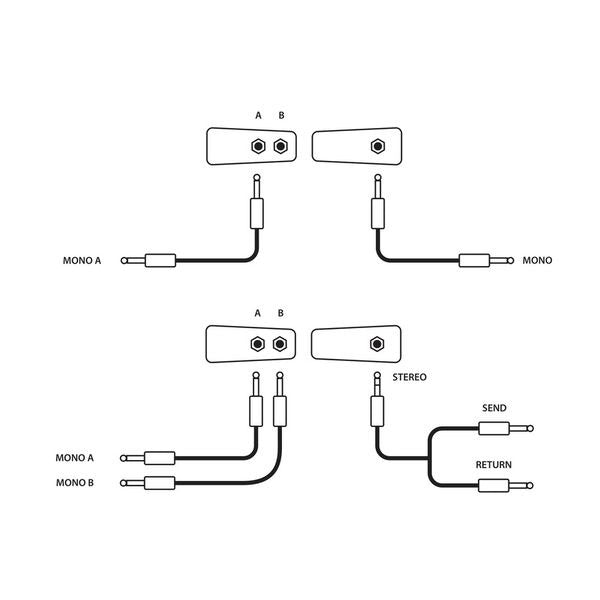

The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the mounting holes of the RockBoard® LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards. Central access to the signal supply is provided by a 6.3 mm TRS stereo jack. Since the TRS jacks are pass-through jacks, it is also possible to route signals in the opposite direction to external pedals, such as a Wah. Using TRS stereo jacks also makes it easy to implement "send/return" applications (A- = tip and B- = ring).

• Mounting solution for all RockBoard pedalboards

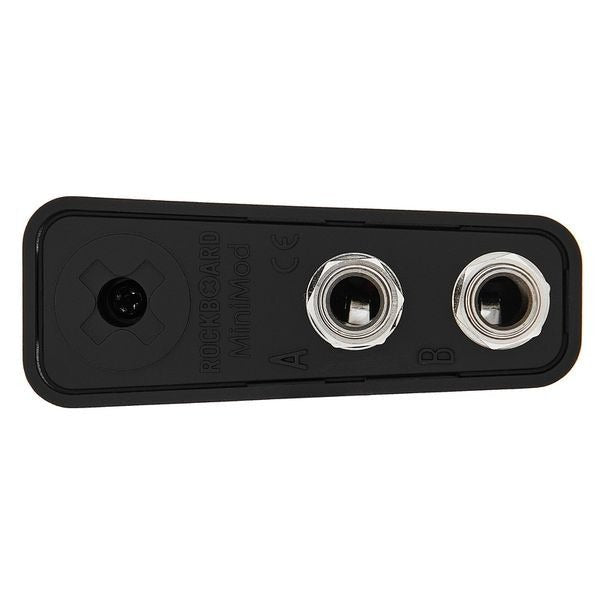

• 1x TRS 6.3 mm jack socket to 2x TRS 6.3 mm jack socket
• Fits into the mounting hole for the RockBoard LED Light
• No drilling required
• Dimensions (W x H x D): 20-25 x 35 x 70 mm
• Weight: 50 g
• Includes mounting screws
