RockBoard | FlaX Plug MIDI Cable | 5pin DIN Flat MIDI Patch Cable

Original price $11.99 - Original price $11.99
Original price $11.99
$11.99 - $12.99
Current price $11.99

or 4x fortnight payments of $3.00 AUD with

Legnth: 30cm

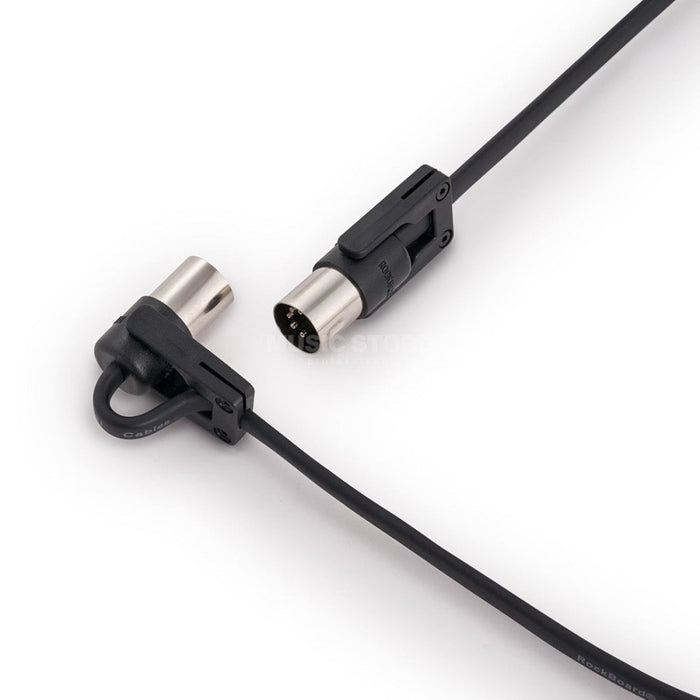

After the introduction of our flat MIDI cables, we got a lot of feedback, regarding orientation and size of plugs as well as requests for plugs that could be both - angled and straight. We are happy to oblige and took our design team to the task. The result you can see in the RockBoard® FlaX Plug MIDI Cables. Based on our slimmed down Flat MIDI Cable design, these cables offer flat and compact plugs with a omni-directional design. They can be adjusted to be either straight or angled to the left as well as to the right, and locked into place using two hex key set screws. Anything goes with the RockBoard® FlaX Plug MIDI Cables

  • flat MIDI cables with rectangular profile with omni-directional, lockable compact plugs
  • plug orientation alterable from straight to angled to the left or right
  • orientation lockable via 1.5 mm hex key wrench (not included)
  • compact design saves pedalboard real estate
  • flat rectangular cable prevents cable breakage, cable jams and keeps your setup tidy
  • suitable for Clock/SYNC Capabilities & Phantom Power
  • flexible oxygen free copper conductors 5 x 7 x 0.12 mm
  • DIN 5-pin connectors
  • max. rated current 1A
  • outer PVC insulation
  • operating temperature -20° C to +60° C
  • outer dimensions cable (W x H) 6.5 x 3.5 mm (rectangular)
  • plug dimensions straight (L x W x H) 33 x 20 x 15 mm / 1 5/16" x 13/16" x 9/16"
  • plug dimensions angled (L x W x H) 33 x 20 x 20 / 1 5/16" x 13/16" x 13/16"
  • black
