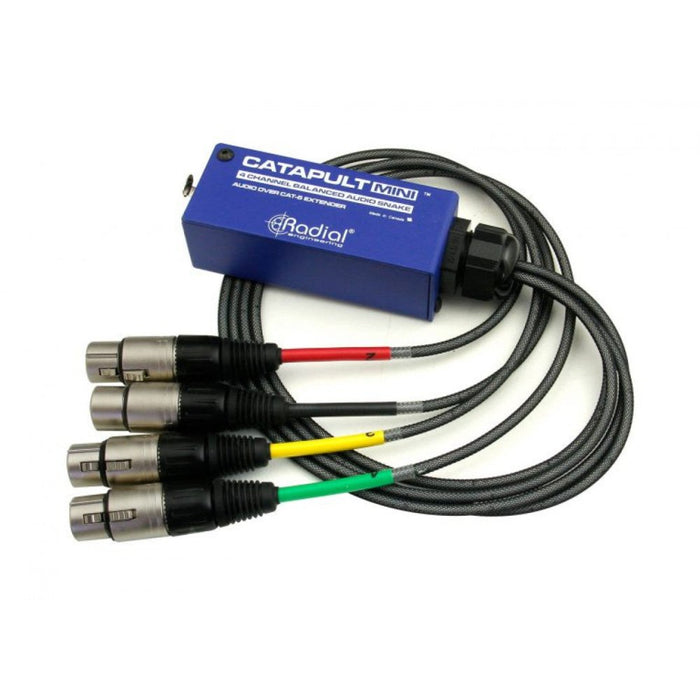

Radial | Catapult MINI TX 4 | 4CH Transmitter | Cat5 Audio Snake | 4x XLR Female

LIMITED STOCK
ON SALE!
by Radial
Original price $209.00
Current price $179.00

or 4x fortnight payments of $44.75 AUD with More info

{formbuilder:6507}

Analog audio over Cat 5 wiring

The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilises Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-wire passive operation

Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

Utilise pre-existing cable installations

As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

Mix & Match

Three versions of the Catapult Mini are available: The Mini TX features female XLR connectors, the Mini RX has male XLRs, and the Mini TRS is equipped with ¼” TRS jacks for balanced connection to any pro audio device.
