Pinstripe Pedals | TXRX-SP Kit | 24V | 14m CAT5 | w/ Jensen Transformer

1-2 UNITS LEFT!
NEW ARRIVAL
Original price $803.00 - Original price $803.00
Original price $803.00
$803.00
$803.00 - $803.00
Current price $803.00

or 4x fortnight payments of $200.75 AUD with

{formbuilder:6507}

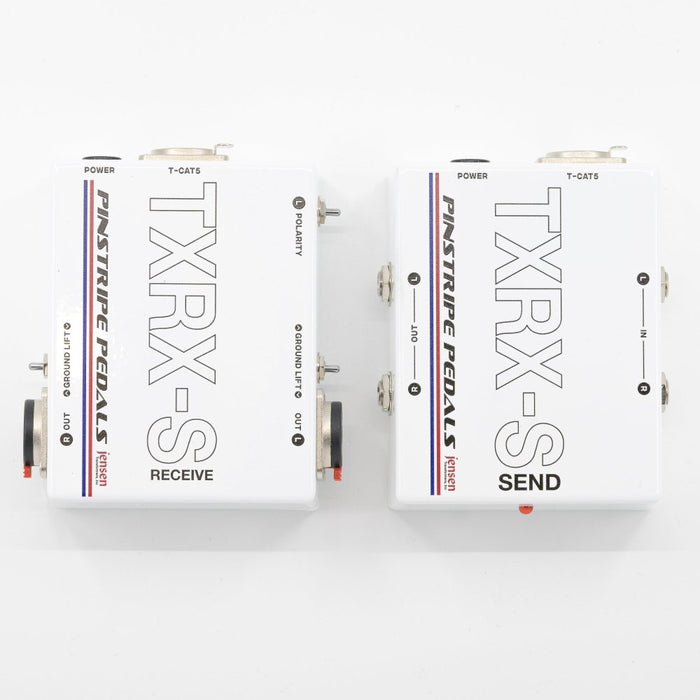

What does the TXRX System do?

1. Converts two 1/4 inch (balanced or unbalanced) signals to balanced output, sending these signals down a tactical CAT5 cable up to 100 feet (30 m). This allows you to get the amps off the stage or to isolate a combo amp in a studio. Can use standard mic cables or studio tie lines with available adapters.

2. Runs on 24V Volt supply compatible with Strymon Ojai/OjaiR30/Temple-Cioks MOD-Hi5. Allows delivery of 9V at 2 Amps (18W total) to the Send box thru the CAT5 cable. (TXRX- SP).

3. 1 Megaohm input impedance won’t load down pickups when connected directly to the guitar.

4. Transformer isolation allows for ground lifting to kill hum.

5. High-Current OpAmps are able to drive the transformer effortlessly and maintain original guitar tone.

6. High-Current Buffered Output can drive an unbalanced cable to an amplifier when not utilizing the full system.

7. Polarity Reverse Switch on L output of Receive Box to quickly check speaker polarity. Essential when running two amps.

8. Supplied with 15M tactical CAT5 cables from Revelation Cable Company.

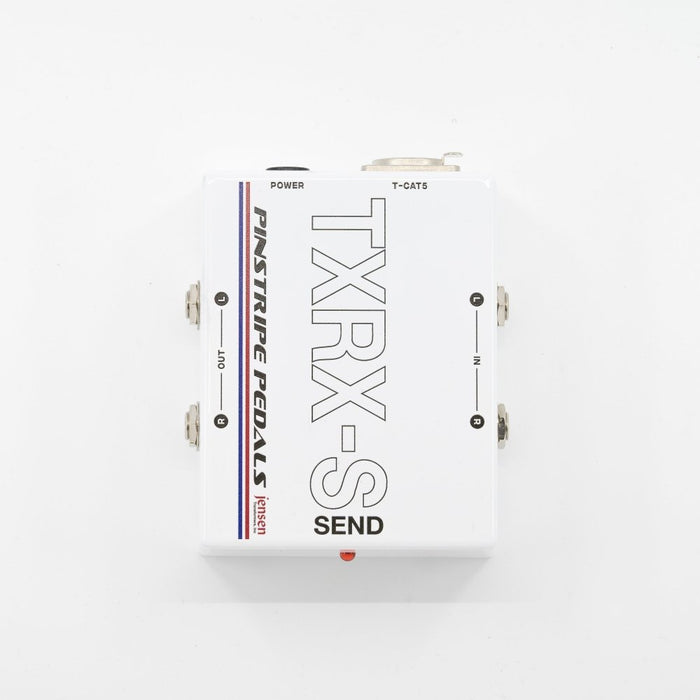

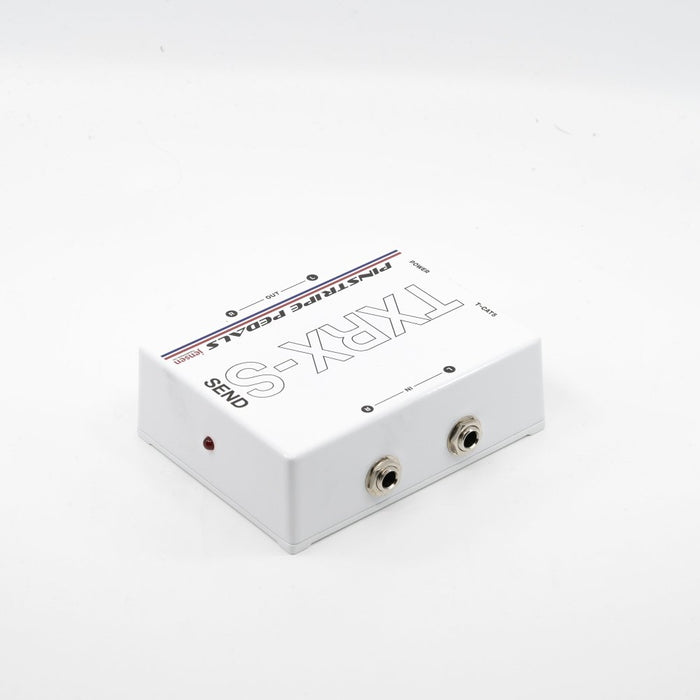

Send Box

- 1⁄4 Inch High Impedance Input – accept either balanced or unbalanced input.
- 1⁄4 Inch Buffered Output – Unbalanced Mono, High Current.
- High-Current Out, Low Noise/Low Distortion Rail-to-Rail Opamps drive the transformers
and the buffered outputs.
- High Nickel Core, Line Isolation transformer by Jensen Transformers for lowest
distortion and best tone.
- Output is Ethercon, Shielded Ethernet cable. Adapters for XLR-M available.
-24 Volt Power Output/Input – EIAJV Connector (Strymon/CIOKS) (TXRX-SP)
- High Quality, all-metal Connectors by Switchcraft and Neutrik.
- Powder-coated, Cast aluminum enclosures – drilled, painted and printed in USA. - Hand assembled in USA.

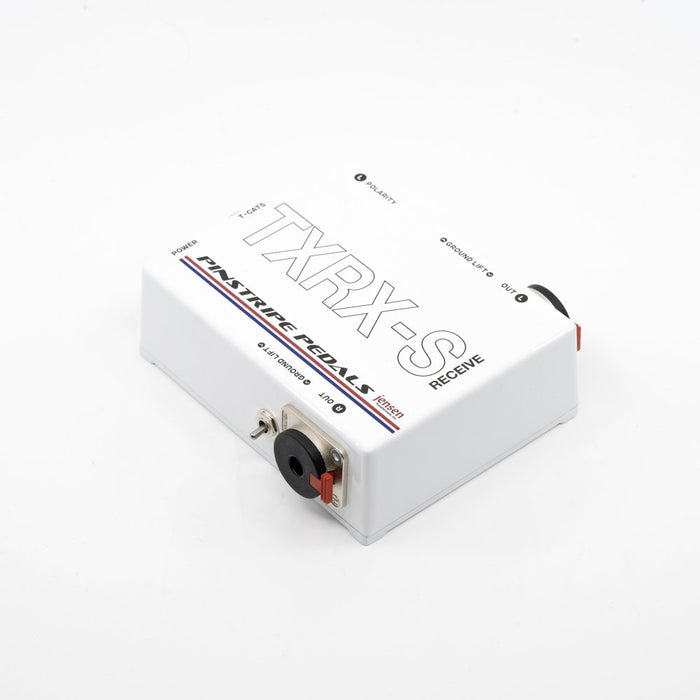

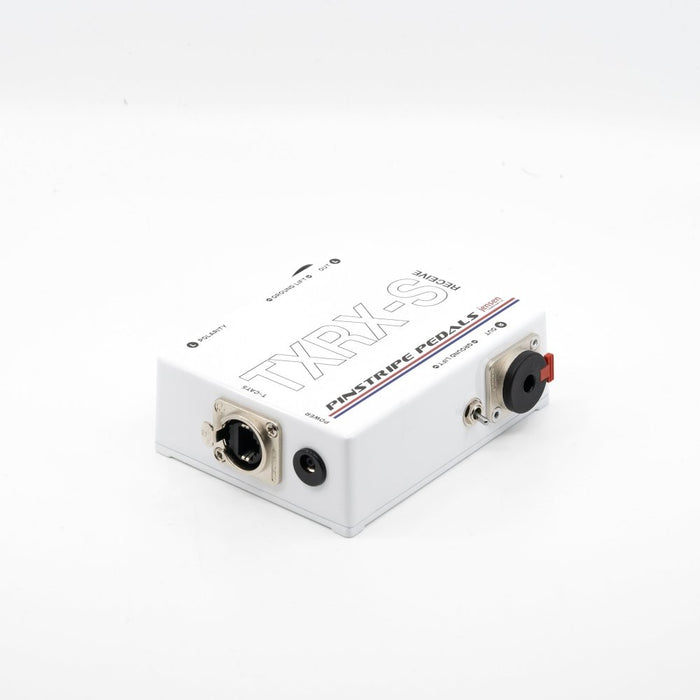

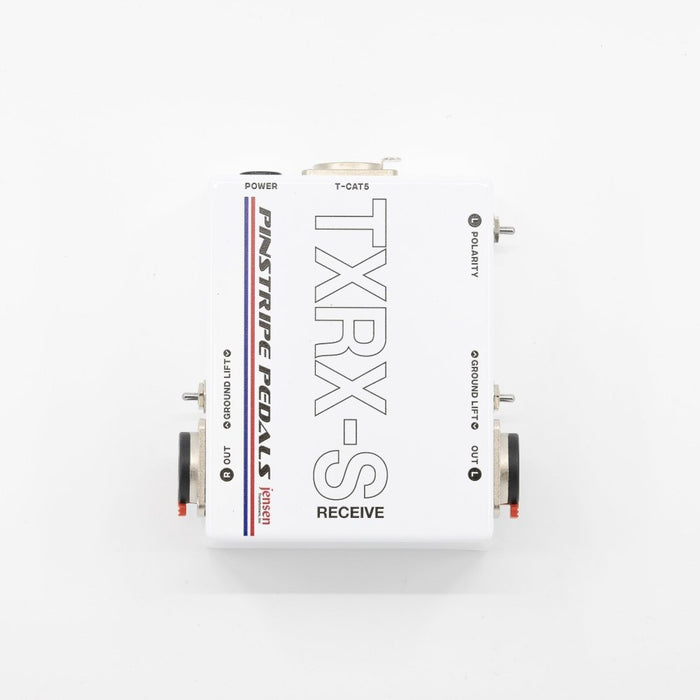

Receive Box

- Ethercon Input. Adapters for XLR-F available.
- 24 Volt Power Input – EIAJV Connector (Strymon/CIOKS) (TXRX-SP Only)
- 1⁄4 Inch Balanced or Unbalanced Outputs to Amplifiers.
- Ground Lift Switch for L and R outputs – kills ground loop hum.
- Polarity Reverse Switch for L output.
- High Nickel Core, Line Isolation transformer by Jensen Transformers for lowest
distortion and best tone.
- High Quality, sealed switches by Grayhill.
- High Quality, all-metal Connectors by Switchcraft and Neutrik.
- Powder-coated, Cast aluminum enclosures – drilled, painted and printed in USA.
- Hand assembled in USA.
