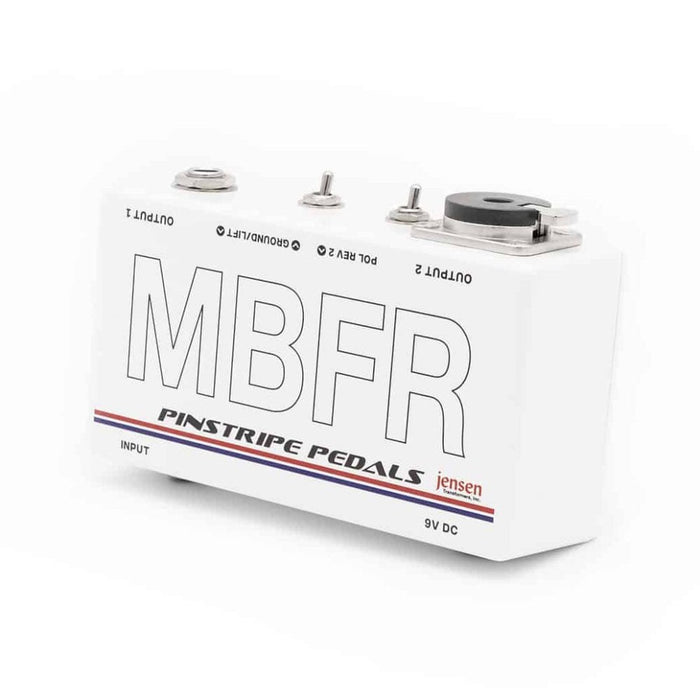

Pinstripe Pedals | MBFR | High-End Buffer & Signal Splitter | w/ Jensen Transformer

High-quality, high current buffer/signal splitter for use in multiple scenarios.  It is powered by normal (Boss-style) pedalboard-friendly 9Vdc from any supply (no special adapters needed).  The jacks are oriented specifically to integrate with your other pedals (fits easily on your board).  Uses a genuine Jensen Transformer for the cleanest, clearest signal and the greatest noise rejection.

High input impedance TS input.  Output 1 is a low impedance TS output.  Output 2 uses the same buffer as output 1 but adds a Jensen line isolation transformer to allow ground lift and Polarity Reverse functions.  This is useful when combining two amplifiers for greater tonal effect.  Output 2 is on an isolated 1/4 inch Switchcraft jack that can be used in either a TS or TRS configuration.

Output 2 can be used as an active DI for recording and allows for balanced connection via TRS or using a TRS to XLR adapter (available separately)

All-metal connectors from Switchcraft.  High-quality, sealed switches from Grayhill.  Handbuilt in Oklahoma USA

Power: 9Vdc, 20mA draw

Max In/Out Level: >5Vrms

Noise: 2 microVolts, 110dBu, A-weighted

THD (Distortion): <0.0007% (Bandwidth limited at 20kHz), with 150Ohm load

Input: 1/4 inch, high impedance (1 Megaohm)

Out1: 1/4 inch, low impedance (47 Ohms) buffered, Frequency Response (+0, -0.5dB): 10Hz to 200kHz

Out2: TS/TRS 1/4 inch buffered and isolated, Frequency Response (+0, -1dB): 10Hz to 200kHz

• Jensen Transformers line isolation transformer for the best tone
• Ground Lift Switch to kill hum noise
• Polarity Flip switch to invert the signal to the amp 2 when needed
• Can be used as an active DI for recording (with adapter)
