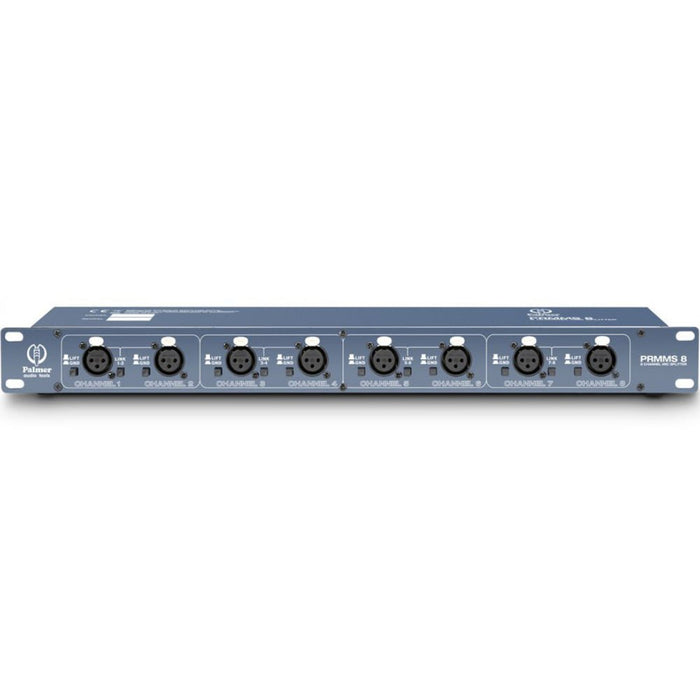

Palmer | PRMMS8 | 8 Channel Microphone Splitter | 19 inch Rack Mount Unit
or 4x fortnight payments of $174.75 AUD with ⓘ
The PRMMS8 is an ultra low noise 8-channel microphone splitter providing a direct output and a transformer isolated output for each balanced XLR input. For extra flexibility, four front panel switches enable channel linking which permits routing a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or merging two input signals into a single output. For use with condenser microphones, the direct outputs serve as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to the PRMMS8.
Product type | Splitters |
Type | mic split |
Split type | 1 in 1 +1 |
Channels | 8 |
Inputs | 1 |
Input connectors | XLR |
Max. input level | +5 dBu |
Number of split-outputs per canal | 1 |
THRU outputs/channel | 1 |
Max Output Level | +5 dBu |
Output connectors | XLR |
Transformer isolated outputs | Yes |
Cabinet material | sheet steel |
Cabinet surface | Powder coated |
Width | 483 mm |
Width | 19 " |
Depth | 73 mm |
Height | 44.5 mm |
Height | 1 U |
Weight | 1,3 kg |
