Palmer | PAN03 | 4 Channel DI Box | 19 inch Rack Mount Unit | Active
or 4x fortnight payments of $199.75 AUD with ⓘ

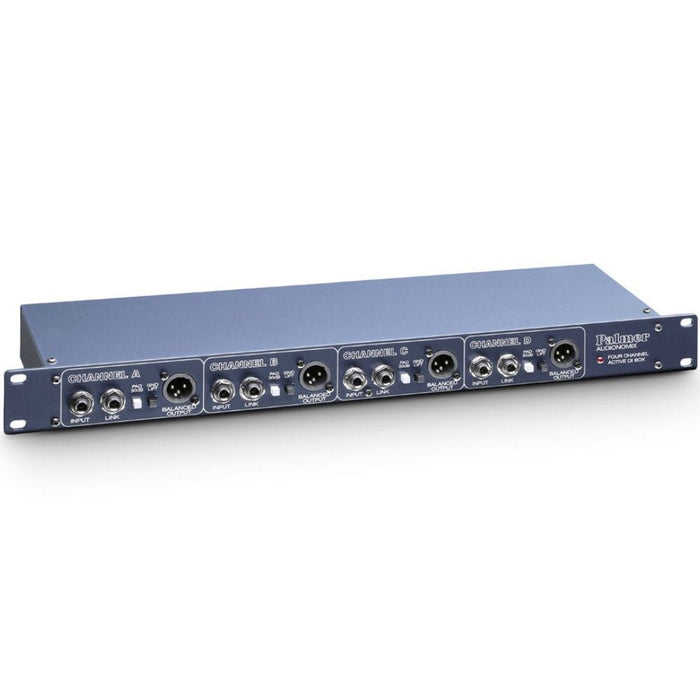

The Palmer PAN 03 gives you an Active 4-Channel DI Box in 19″ rackmount format. Each channel on the PAN 03 features a jack input with a parallel output for passing through the signal. There’s also an attenuation switch (-30 dB) that allows either a line or loudspeaker signal to be connected.
Although the PAN 03 is identical to the PAN 02 in terms of technical specs, the PAN 03 is primed for mains operation. With all connections and switches on the front panel, as well as an additional parallel XLR output on the back. The PAN 03 takes up 1 rack space and measures 90mm from front to back.
Product type: DI Boxes
Type: active
Channels: 4
Inputs: 4
Input connectors: 6.3 mm jack
Max. input level: + 45 dBu
Input impedance: (@ 60 Hz) 1 M Ohm(s)
Input pad: 0 / -30 dB
Outputs: 4 (+ 4 parallel XLR outs)
THRU: outputs/channel 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 10 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 – 20000 Hz
Transformer: balanced Yes
Ratio: 10 : 1
Indicators: Power
Controls: attenuator , ground lift
Operating voltage: external
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 480 mm
Width: 19 “
Depth: 90 mm
Height: 45 mm
Height: 1 U
Weight: 1,6 kg
