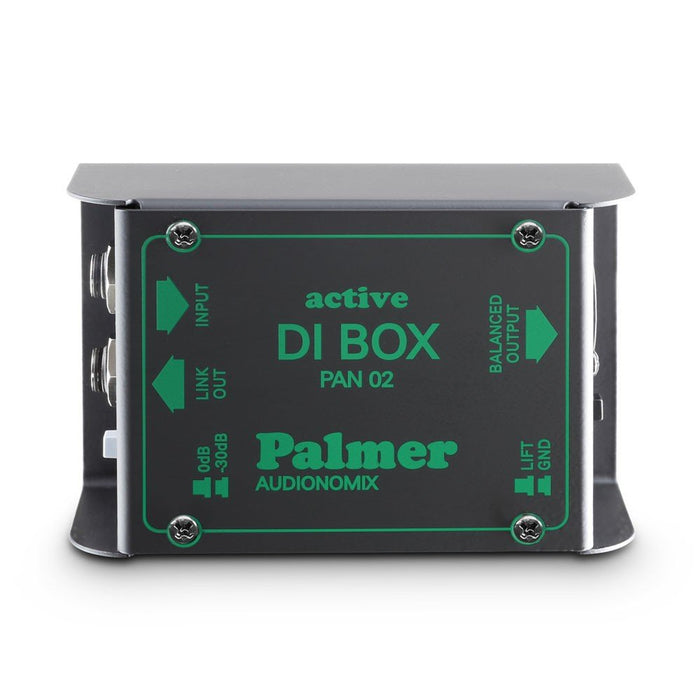

PAN 02 DI Box active

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Specifications
Product type DI Boxes
Type active
Channels 1
Inputs 1
Input connectors 6.3 mm jack
Max. input level + 45 dBu
Input impedance (@ 60 Hz) 1 M Ohm(s)
Input pad 0 / -30 dB
Outputs 1
THRU outputs/channel 1
Output connectors 6.3 mm jack , XLR
Max. output level + 10 dBu
Output impedance 600 Ohm(s)
Frequency response 10 - 20000 Hz
Transformer balanced Yes
Ratio 1 : 1
Controls attenuator , ground lift
Operating voltage +48 V phantom power , 9 V block
Power consumption 3.8 mA (9V) , 4 mA (48V)
Cabinet material sheet steel
Cabinet surface Powder coated
Width 110 mm
Depth 73 mm
Height 42 mm
Weight 0,353 kg
