Palmer | PAN01 | Passive DI Box | Mono
by Palmer
Sold out
Original price
$116.47
Original price
$116.47
-
Original price
$116.47
Original price
$116.47
Current price
$99.00
$99.00
-
$99.00
Current price
$99.00
{formbuilder:6507}

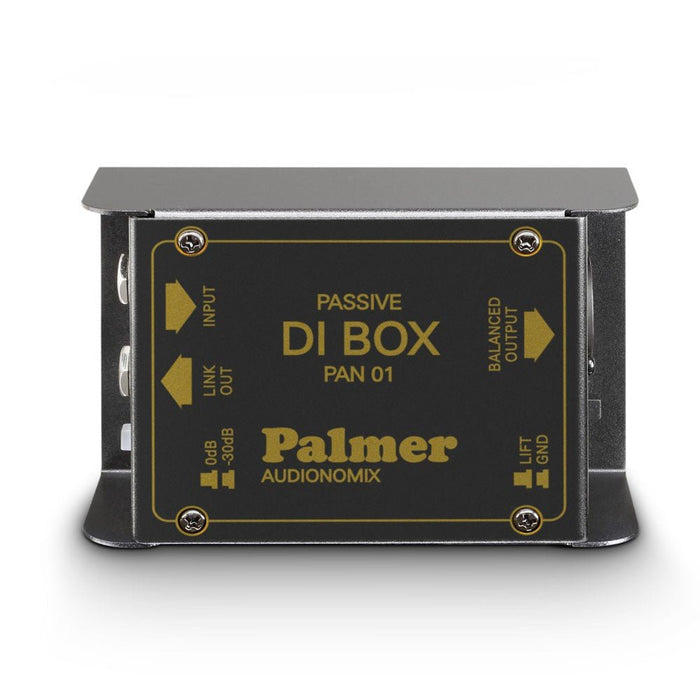

PAN 01 DI Box passive
Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 60k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack , XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 Hz |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuator , ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 73 mm |
| Height | 42 mm |
| Weight | 0,34 kg |
