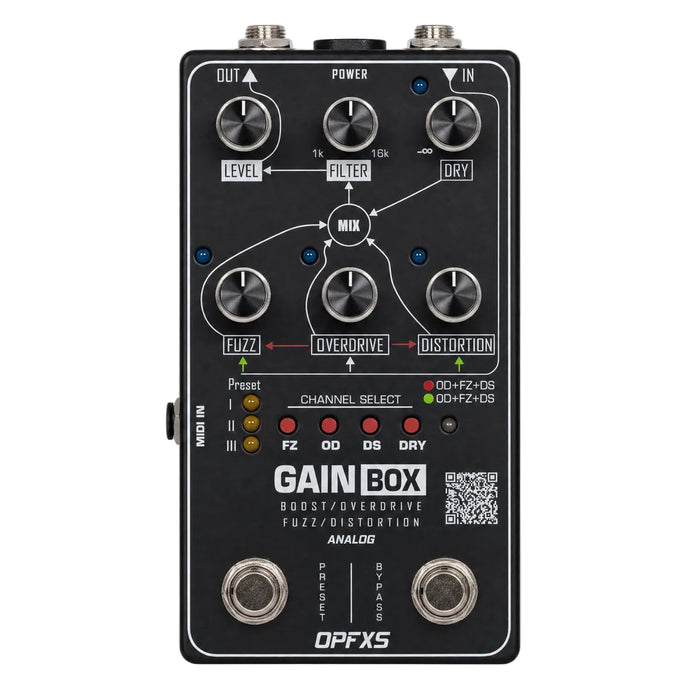

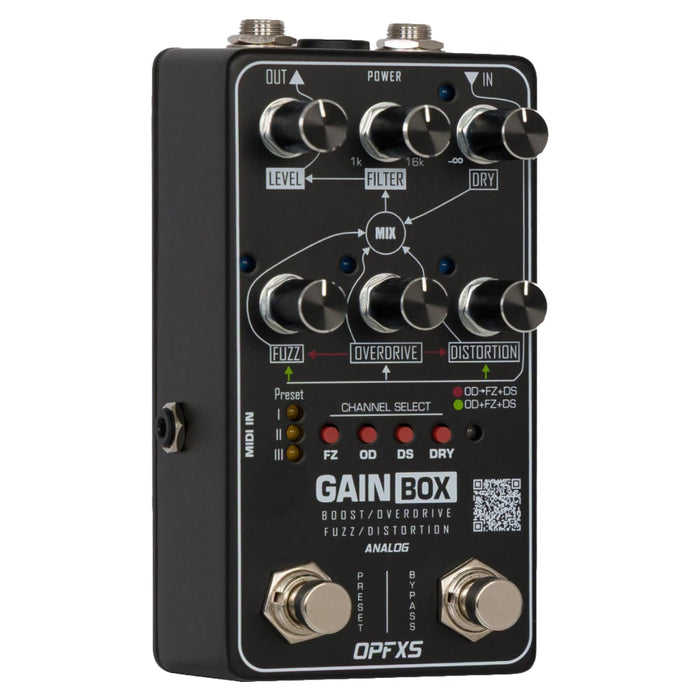

OPFXS Gain Box Analog Multi-Gain Boost + Overdrive + Fuzz + Distortion Pedal w/ MIDI
or 4x fortnight payments of
$112.25 AUD
with
ⓘ
The OPFXS Gain Box is an analog multi-gain pedal that combines dry blend, fuzz, overdrive and distortion channels in one compact unit. Each gain voice can be selected and blended to create anything from lightly driven texture to layered, saturated gain tones.
The pedal can run its channels in either series or parallel, giving you two very different ways to stack gain. Series mode lets each stage push into the next for a more compressed and aggressive response, while parallel mode keeps the voices more separated for clearer blended textures and more complex gain shaping.
A smooth low-pass Filter control lets you fine-tune the overall brightness, while the global Level control handles output matching or boost. The Gain Box can store up to 3 presets, saving channel on/off states, filter setting, output level and series/parallel routing, while the Dry, Fuzz, Overdrive and Distortion knobs remain fully analog and hands-on.
With MIDI control, buffered bypass, mono input/output and a compact enclosure, the Gain Box is a creative drive workstation for players who want fuzz, overdrive, distortion and clean blend control in one flexible pedal.
• Analog multi-gain drive pedal
• Dry blend, fuzz, overdrive and distortion channels
• Series or parallel gain routing
• Up to 3 user presets
• Presets save channel states, filter, level and routing
• Fully analog Dry, Fuzz, Overdrive and Distortion controls
• Smooth low-pass Filter control
• Global Level control for output matching or boost
• 3.5mm TRS MIDI control for bypass, channel selection, filter, level and routing
• Mono input and mono output
• Buffered bypass
• Suitable for guitar and bass
• Input impedance: 1M ohm
• Output impedance: 1k ohm
• Power: 9V DC centre negative
• Current draw: 150mA minimum
• Dimensions: 12.5 × 6.5 × 6cm
• Weight: 0.3kg
• Made in Italy
For more information, visit OPFXS website.
