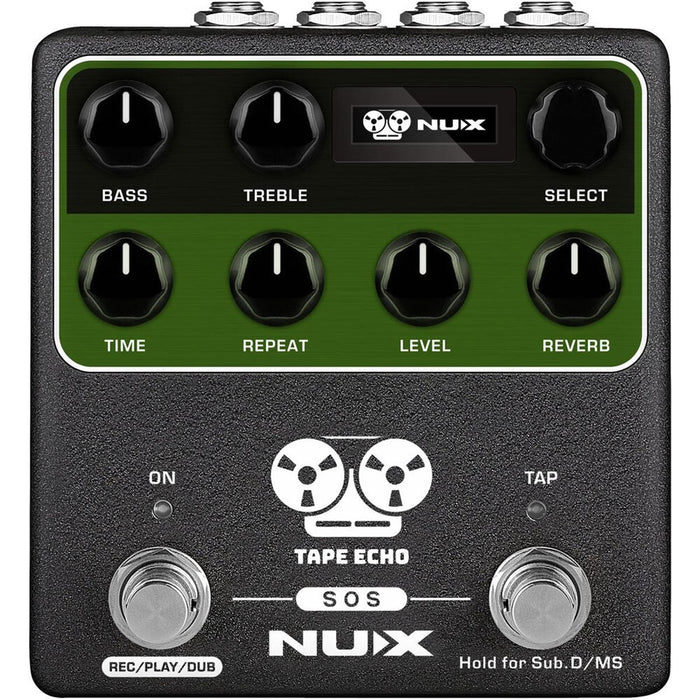

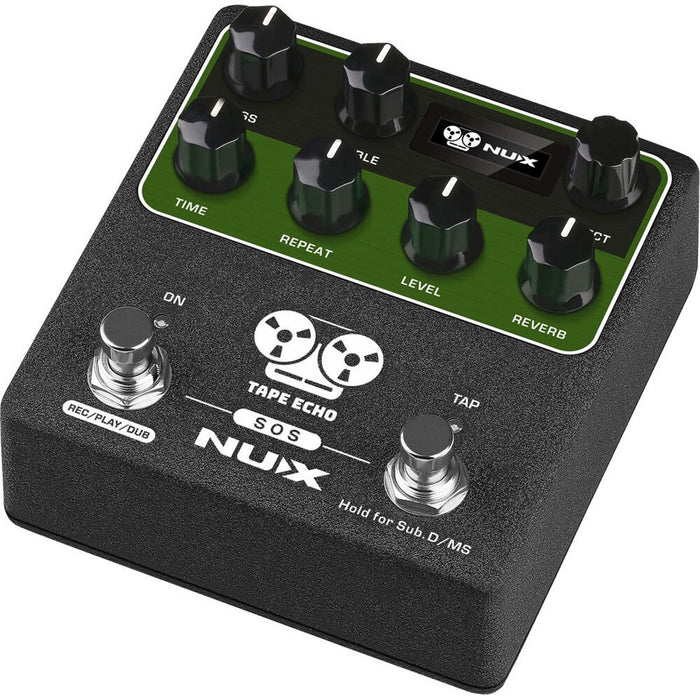

NUX Tape Echo Effects Pedal

NUX Tape Echo Effects Pedal

by NUX
$309.00 - $309.00
$309.00
$309.00
$309.00 - $309.00
$309.00

or 4x fortnight payments of $77.25 AUD with ⓘ

{formbuilder:6507}

NU-X Tape Echo is a tribute to the Japanese-made Space Echo from 1974. Analogue tape echo devices record incoming audio to a loop of magnetic tape, then replays the continuous loop over the playback head before it is erased again by new incoming audio.

Features

  • Up to 1600ms stereo delay time by Tap Tempo
  • 7 Repro-Tape Heads combinations and Reverb only
  • Core-Image technology brings natural Tape Echo with parallel spring reverb sound back
  • Realistic infinite pitch-shift feedback with TIME & REPEAT knobs tweaking
  • Sub-division time signature with Tap Tempo foot switch
  • 40 seconds stereo phrase loop with OLED status display
  • Optional delay time display (MS / BPM)

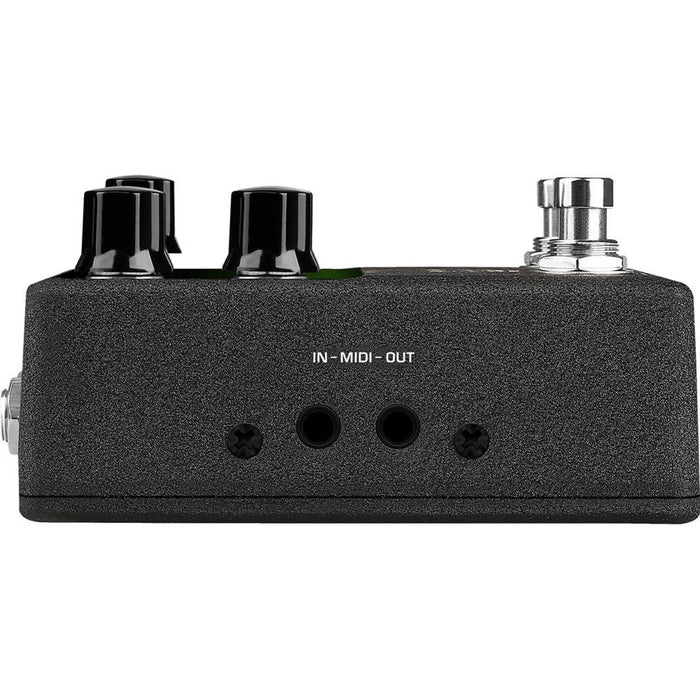

  • MIDI In/Out
  • Holding ON footswitch for self-feedback

SKU

  • NXNDD7

Brand

  • NU-X Products

Type

  • Reverb/Delay/Echo Pedals

Series

  • NU-X Verdugo Series

Power

  • 9V DC(Negative tip, Optional ACD-006A adapter)

Frequency Response

  • 20Hz~20kHz - ±1dB

Maximum Input Level

  • 1.5Vrms

Signal Processing

  • 32bit

Input Impedance

  • 5MΩ

System Latency

  • 1ms

Dynamic Range

  • 103dBu/105dBu(A-Weighting)

A/D Converter

  • 32Bit

Output Impedance

  • 100Ω

Maximum Output Level

  • 1.5Vrms

Current Draw

  • approximately 100mA-150mA

Sampling Rate

  • 48kHz

Dimensions

  • 105mm(L) x 115mm(W) x 58(H)mm

Thd+n Ratio

  • 0.0038% @ input 1Vrms_1kHz , 0.01% @ input 1.5Vrms_1kHz
