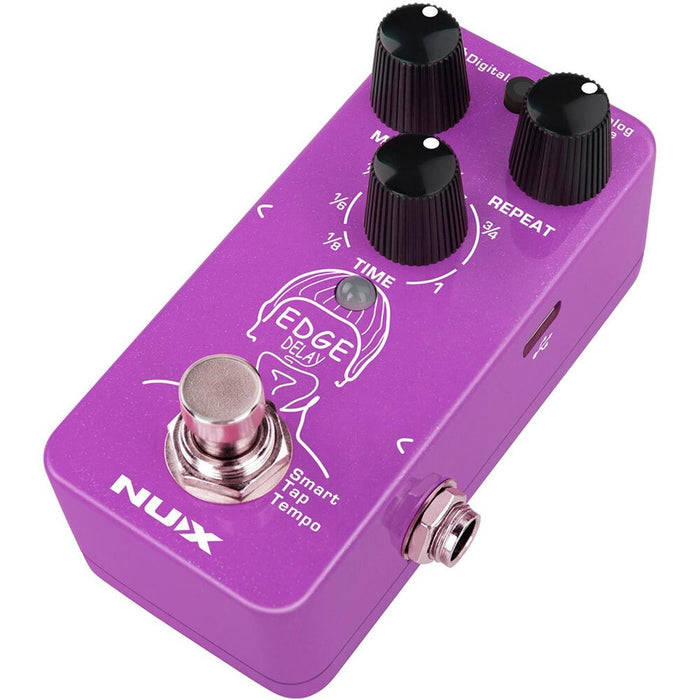

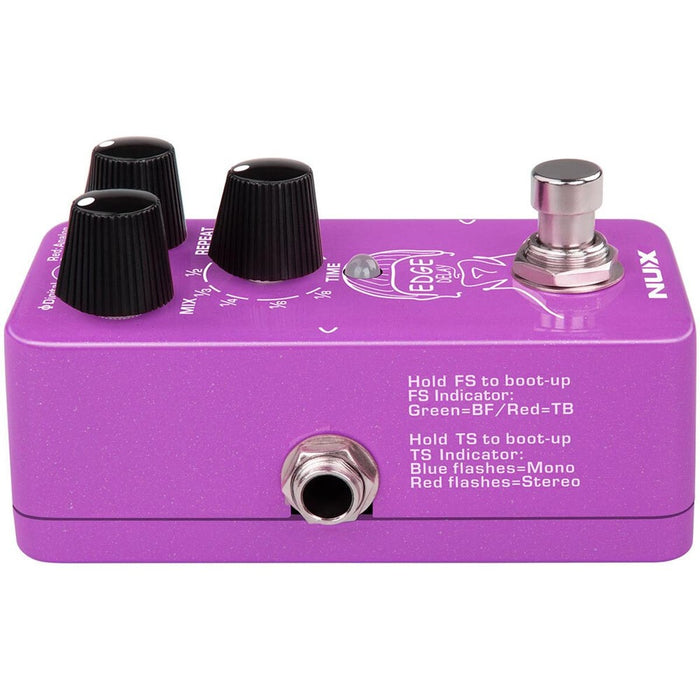

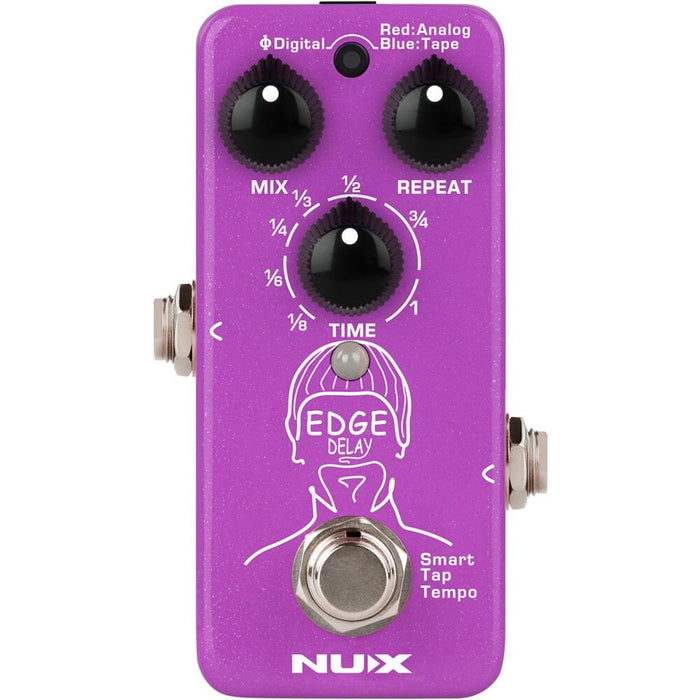

NUX Edge Mini Core 3-Mode Delay Effects Pedal

NUX Edge Mini Core 3-Mode Delay Effects Pedal

by NUX
$119.00 - $119.00
$119.00
$119.00
$119.00 - $119.00
$119.00

or 4x fortnight payments of $29.75 AUD with ⓘ

{formbuilder:6507}

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch

Features

  • 3 delay types in a mini enclosure
  • ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head
  • Analog Delay: BBD Warm sound with natural treble decay
  • Tape Echo: High-frequency saturation and low-end decay
  • Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
  • True-bypass or Buffer-bypass  (Trails)
  • Supports Stereo I/O with TRS Cable
  • Low power consumption. (less than 100mA)
  • Analog dry signal for low noise and zero latency
  • Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
  • The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software
  • Input Impedance: 1MΩ
  • Output Impedance: 10kΩ
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC (Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g
