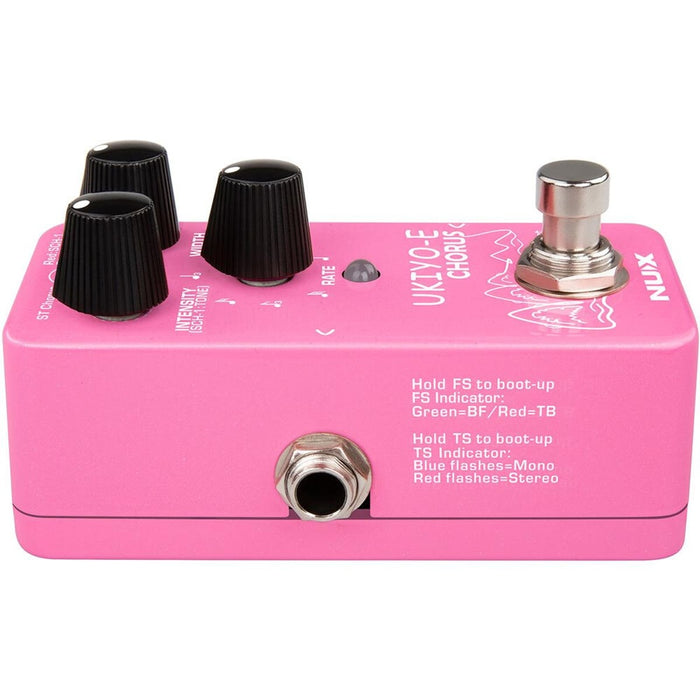

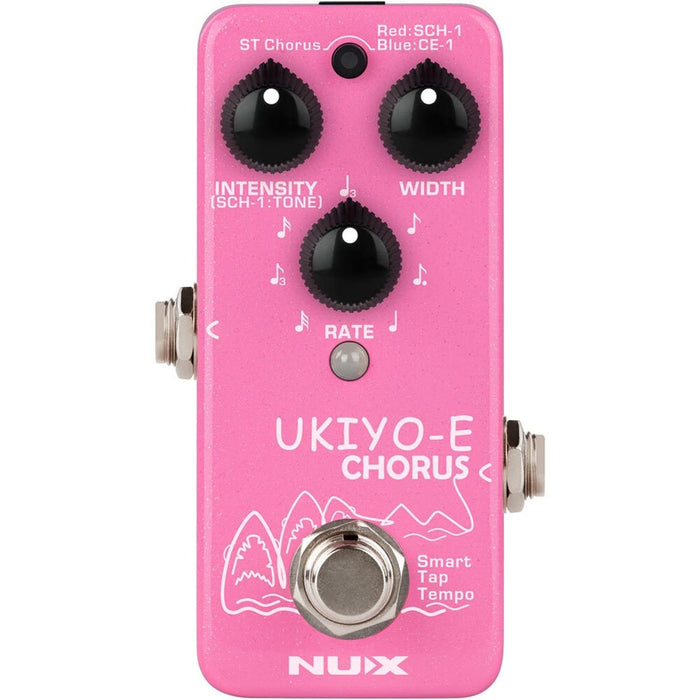

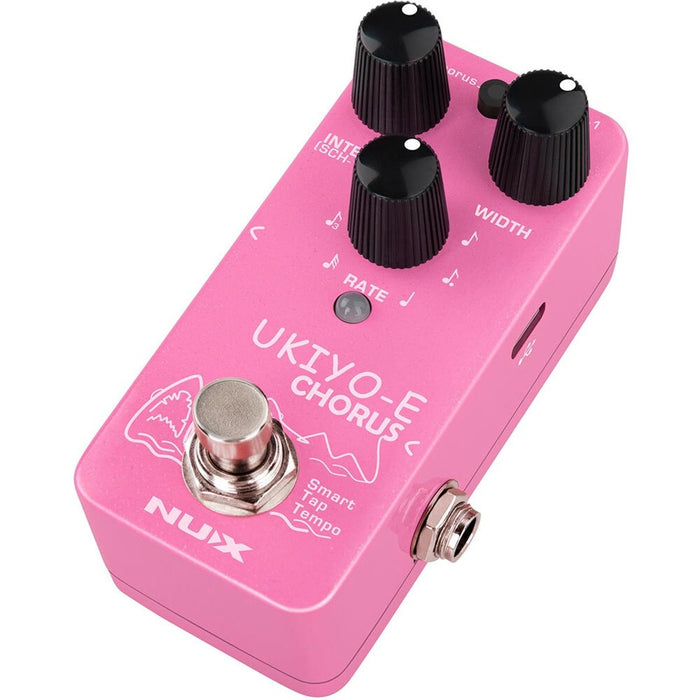

NUX Ukiyo-E Mini Core Chorus Effects Pedal

NUX Ukiyo-E Mini Core Chorus Effects Pedal

by NUX
$119.00 - $119.00
$119.00
$119.00
$119.00 - $119.00
$119.00

or 4x fortnight payments of $29.75 AUD with ⓘ

{formbuilder:6507}

UKIYO-E CHORUS (NCH-4) is a mini chorus pedal with 3 different chorus models including ST Chorus, SCH-1, and CE-1. You can switch the models by tapping the tap switch. Old-school Analog Chorus has always been warm but it was hungry for dynamic completion.

Features

  • 3 chorus models in the mini enclosure
  • ST Chorus: Gorgeous sounding chorus
  • SCH-1: Clean chorus to a pretty realistic Leslie effect
  • CE-1: Special warmth of a rich jazz atmosphere
  • Sub-division with Smart Tap Tempo
  • True-bypass or Buffer-bypass (Trails)
  • Supports Stereo
  • Low power consumption (less than 100mA)
  • Analog dry signal for low noise and zero latency
  • Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
  • The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software
  • Input Impedance: 1MΩ
  • Output Impedance: 10kΩ
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC (Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g
