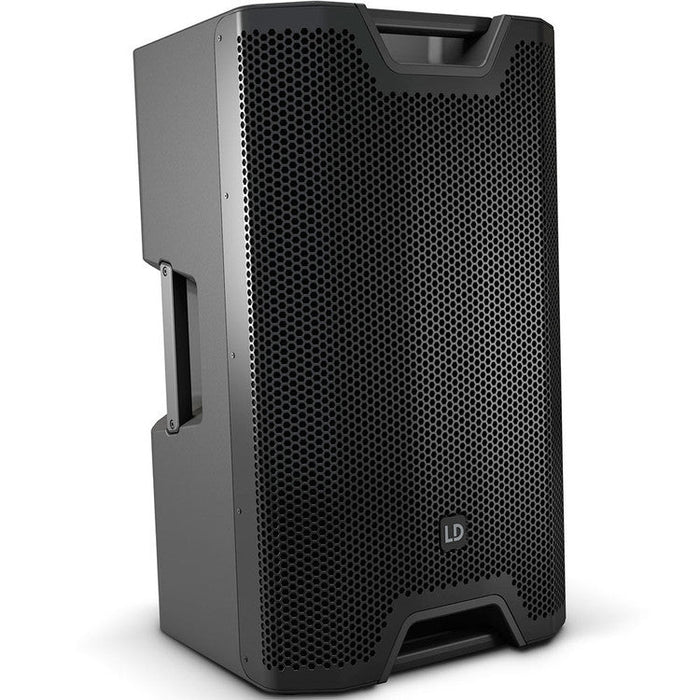

LD Systems | ICOA 1200W 15" | Active PA Speaker | Black

ON SALE!
Original price $998.82
Original price $998.82 - Original price $998.82
Original price $998.82
Current price $849.00
$849.00 - $849.00
Current price $849.00

or 4x fortnight payments of $212.25 AUD with


This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

  • A genuine all-rounder for full-range, satellite and monitor applications
  • 128 dB max. SPL and 1200 W peak power
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function
  • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
  • Extensive, optionally available accessories for installation and transport
Features
Product type PA loudspeaker
Type Powered
Low/mid Woofer dimensions 15 "
Woofer dimensions (mm) 381 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF driver dimention (mm) 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1.4 "
HF driver voice coil 35 mm
Amplifier Class D
Dispersion (H x V) 90° x 50°
System Power (RMS) 300 W
Peak power 1200 W
Frequency response 48 Hz - 20000 Hz
Crossover frequency kHz 2 kHz
Max. SPL (Peak) 128 dB
Protection circuits over voltage
Protection circuits over-current
Protection circuits thermal overload
Protection circuits Multiband limiter
Controls 2 x gain
Controls On / off switch
Controls Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors XLR
Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical)
Line inputs 1
Line input connectors 3.5 mm TRS
Line outputs 1
Line output connectors XLR
Power supply SMPS
Power consumption 150 W
Ambient temperature (in operation) 0 - 40 °C
Operating voltage 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity < 80 %, not condensing
Fuse T4AL 250 V
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Mounting 36mm flange (0°, 5°)
Mounting 6 x M10 flying points
Monitor angle 55 °
Width 416 mm
Height 695 mm
Depth 415 mm
Weight 24.3 kg
Accessories (included) Power cord
