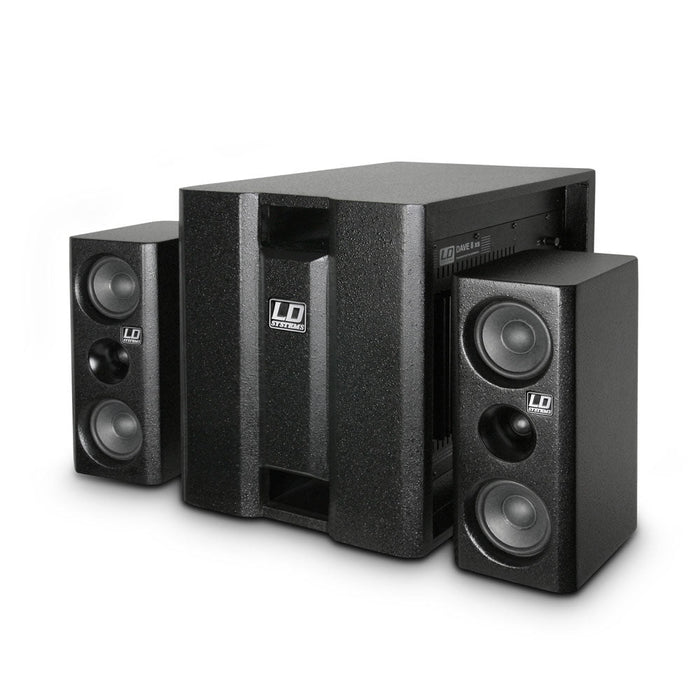

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).

The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.

Features
Weight 29 kg
Product type PA Complete Systems
colour Black
Max. SPL (continuous) 117 dB
Frequency response 45 - 19.000
Dispersion (H x V) 60 x 60 °

Subwoofer

Low/mid Woofer dimensions 8 "
Woofer dimensions (mm) 203.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Cabinet construction Bandpass
Cabinet material 15 mm MDF
Cabinet surface texture paint
Subwoofer width 352 mm
Subwoofer height 430 mm
Subwoofer depth 434 mm

Mid/Hi System

Midrange dimensions 2 x 4 "
Midrange dimensions (mm) 2 x 101.6 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1

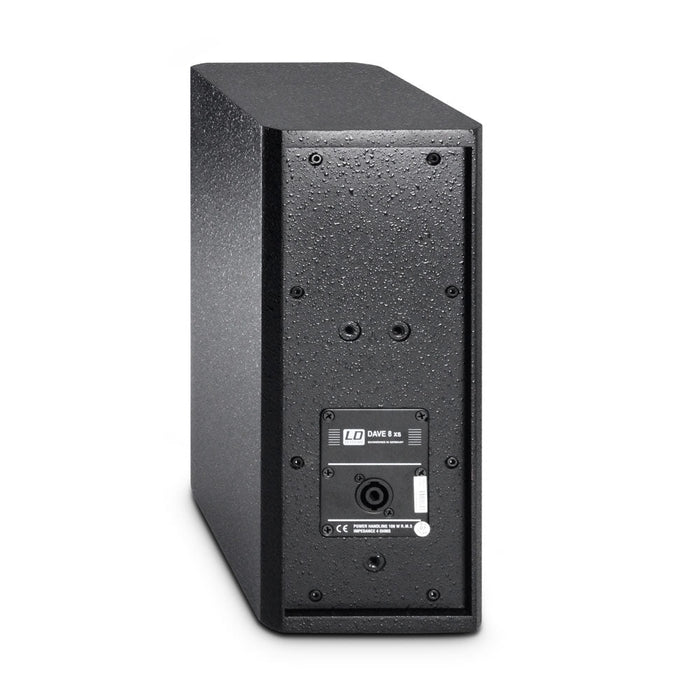

Speaker input connections Speakon compatible
Cabinet construction mid/high Closed
Mid/Hi system cabinet material 12 mm MDF
Mid/Hi system cabinet surface texture paint
Mid/Hi system width 144 mm
Mid/Hi system height 350 mm
Mid/Hi system depth 170 mm

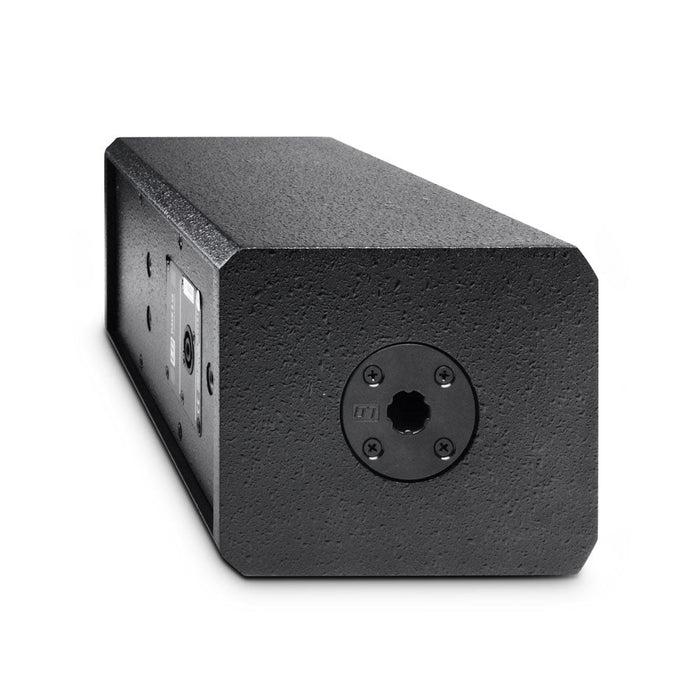

Mid/Hi system features 16 mm flange
Mid/Hi system features 2 x M6 mounting points for wall mounting

Amplifier module (integrated in subwoofer)

Amplifier Class A/B (Bi-amp)
Amplifier output system (RMS) 350 W
Amplifier output system (peak) 1400 W
Protection circuits overload
Protection circuits short circuit
Protection circuits limiter
Cooling Aluminium heat sink
Controls mains switch (on/off)
Controls Subwoofer Volume
Controls Subwoofer Phase Reverse
Controls volume
Indicators Power
Power supply transformer
Operating voltage 220 V AC - 240 V AC, 50-60 Hz
Line inputs 2 (Left/Right)
Line input connectors RCA
Line input connectors XLR
Line input connectors 6.3 mm jack
Loudspeaker outputs 2 (Left/Right)
Speaker output connections Speakon compatible
