LD Systems | CURV 500 ES | 460W Portable Array System | Entertainer Set
The CURV 500® Entertainer Set consists of a high-performance 10" bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500® ES Set is the ideal sound system for small events or conferences and meetings.

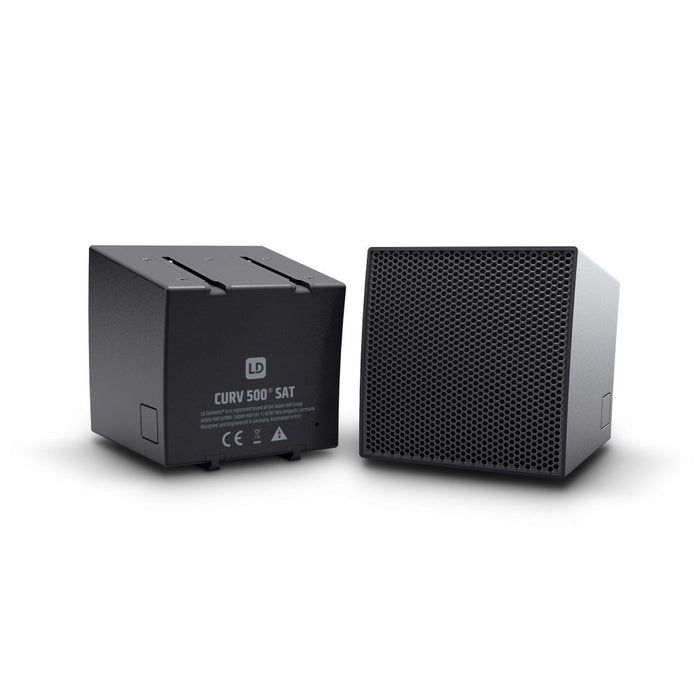

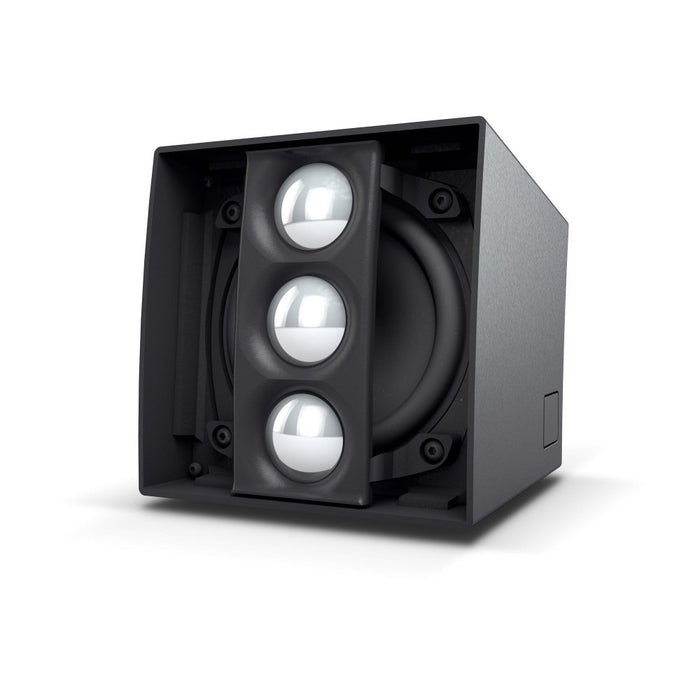

The compact, transport-friendly CURV 500® is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology. One 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

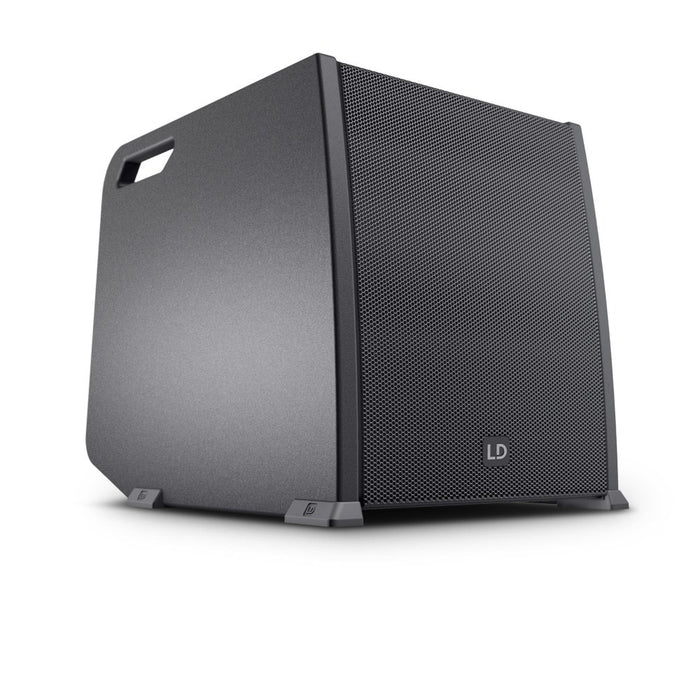

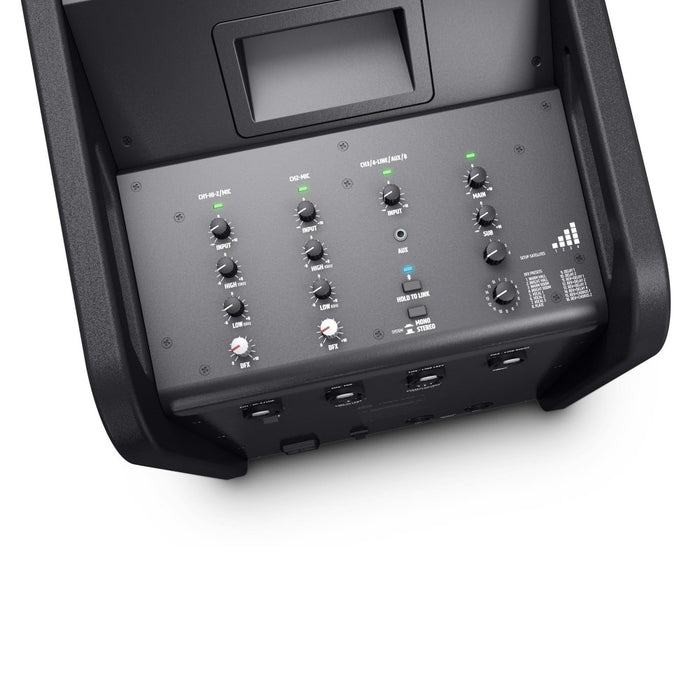

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.
The Entertainer Set can be operated in stereo mode with a total of eight array satellites (max. four on each side). This variant is particularly useful in voice applications, where bass playback is not in the foreground. Speakers or moderators especially appreciate the clarity, transparency and typical benefits of array systems. With the Power Extension set, the Entertainer Set can provide even more power at any time, especially in the bass range, thus expanding to a high-performance Power Set.

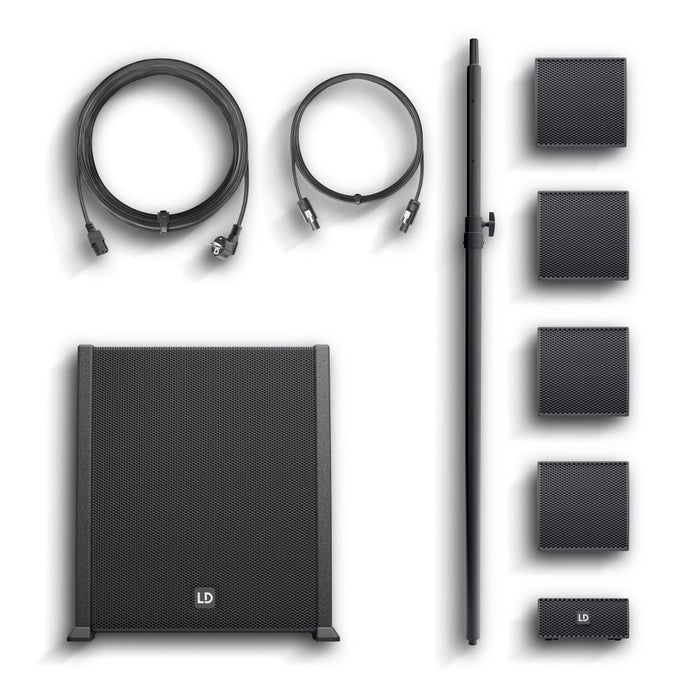

The CURV 500® Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, distance bar and speaker cables.
- The first truly portable array system
- Fully scalable for far and near field applications
- WaveAhead® technology for high definition audio
- SmartLink® plug & play adapter for universal mounting options
- Built-in 4 channel mixer with DFX and Bluetooth® technology
- Durable lightweight aluminium unibody array elements
- For mobile and fixed applications
Features
| Product type | PA Complete Systems |
| System output (RMS) | 460 W |
| colour | Black |
| Number of array satellites | 4 |
| Number of Smartlink adapters | 1 |
| Number of subwoofers | 1 |
| Max. SPL (continuous) | 122 dB |
| Max. SPL (Peak) | 128 dB |
| Frequency response | 47 - 20000 Hz |
| Dispersion (H x V) | 110° horizontal, vertical (each satellite) 10 ° |
| System Power (RMS) | Subwoofer: 300 W , Array Satellites: 2 x 160 W |
| Peak power | Subwoofer: 1200 W , Array Satellites: 2 x 640 W |
| Amplifier | Class D |
| Protection circuits | DSP-based multiband limiter |
| Protection circuits | short circuit |
| Protection circuits | overload |
| Protection circuits | thermal overload |
| Weight | 26.8 kg |
| Accessories (included) | Distance bar |
| Accessories (included) | Power cord |
| Accessories (included) | Speaker cable CURV 500 CABLE 1 (2.2 m) |
Subwoofer
| Low/mid Woofer dimensions | 10 " |
| Woofer dimensions (mm) | 254 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | plywood |
| Cabinet surface | PA painting |
| Dimensions Subwoofer (W x H x D) | 325 x 383 x 491 mm |
| Subwoofer weight | 16.5 kg |
| Subwoofer features | 4 channel mixer |
| Subwoofer features | Bluetooth |
| Subwoofer features | 16 DFX Presets |
| Subwoofer features | 3 ergonomic handels |
| Subwoofer features | 4 System DSP Presets |
| Subwoofer features | Threaded flange M20 |
Array Satellites
| Mid/Hi system | MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms |
| Array Satellite Features | WaveAhead® Technology |
| Array Satellite Features | internal crossover |
| Array Satellite Features | metal grille |
| Array Satellite Material | Die-cast aluminium |
| Array Satellite Surface: | Powder coated |
| Array Satellite Dimensions (W x H x D) | 122 x 122 x 122 mm |
| Array Satellite Weight | 1.7 kg |
Smartlink® Adapter
| Smartlink Adapter Features | 2x M6 thread for optional wall mount |
| Smartlink Adapter Features | 2 x 16 mm pole mount socket |
| Smartlink Adapter Connectors | 1x Phoenix |
| Smartlink Adapter Connectors | 1 x Speakon-compatible |
| Smartlink Adapter Material | Die-cast aluminium |
| Smartlink Adapter Surface | Powder coated |
| Smartlink Adapter Dimensions (W x H x D) | 122 x 57 x 122 mm |
| Smartlink Adapter Weight | 0.6 kg |
