Hollyland | Astra P1 | UHD 4K NDI PTZ Camera w/ 30x Optical Zoom

by Hollyland
$3,519.00
$3,519.00 - $3,519.00
$3,519.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
{formbuilder:6507}

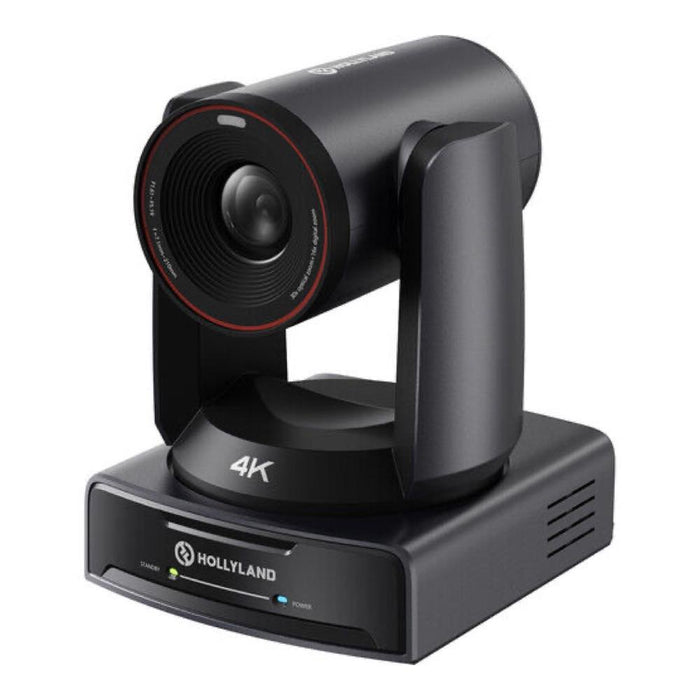

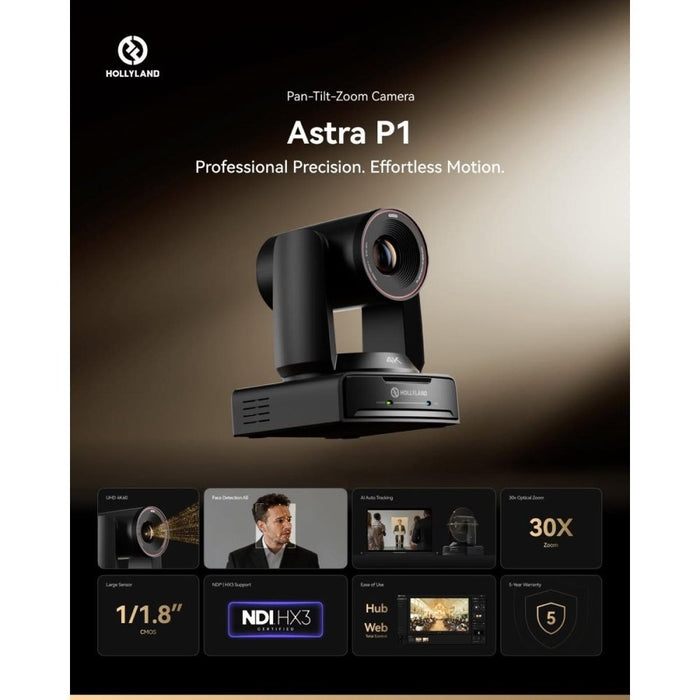

The Hollyland Astra P1 is a professional UHD 4K PTZ camera designed for live production, houses of worship, education, corporate events, sports coverage, conference rooms and broadcast-style streaming environments.

Featuring UHD 4K video output at up to 60fps, a powerful 30x optical zoom lens, AI auto tracking and Face Detection Auto Exposure, the Astra P1 is built to capture clear, detailed video while keeping presenters, speakers and performers framed with minimal manual operation.

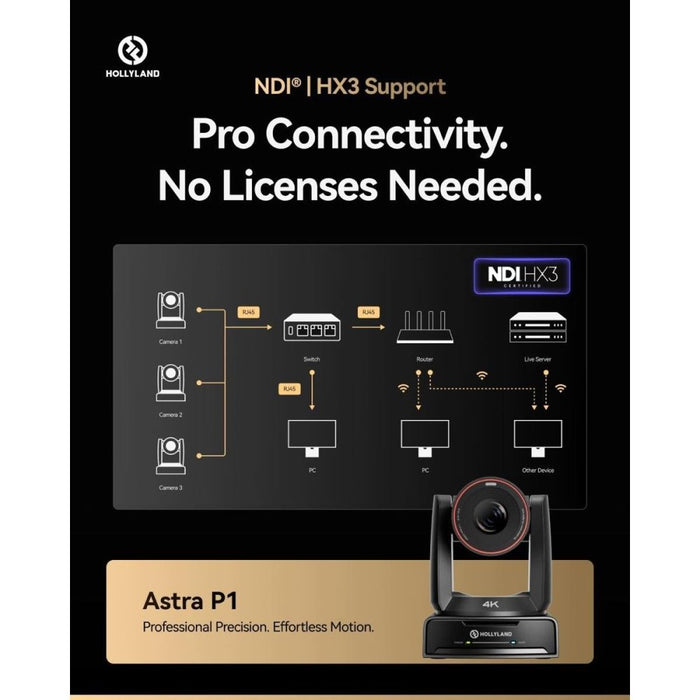

The Astra P1 supports NDI®|HX3 for efficient IP-based production workflows, making it easy to integrate into modern live streaming and multi-camera systems. It also includes HDMI, 3G-SDI, USB and Ethernet outputs, giving you flexible connection options for switchers, computers, recorders and network-based production setups.

With PTZ control via RS232, RS485 and IP, plus up to 255 preset camera positions, the Astra P1 is suitable for permanent installations as well as flexible event setups. PoE+ support allows power, control and video transport over a simplified network-based infrastructure.

Features:

  • Professional UHD 4K PTZ camera
  • UHD 4K60 video output
  • Powerful 30x optical zoom lens
  • 16x digital zoom
  • AI Auto Tracking technology
  • Face Detection Auto Exposure
  • NDI®|HX3 support for IP production workflows
  • HDMI, 3G-SDI, USB and Ethernet outputs
  • H.264, H.265 and MJPEG encoding
  • RTSP, RTMP, SRT, HTTP, TCP/IP and multicast protocol support
  • PTZ control via RS232, RS485 and IP
  • Up to 255 preset camera positions
  • PoE+ capable for simplified installation
  • Includes wall mount and ceiling mount brackets
  • Ideal for churches, live events, education, corporate presentations and streaming

Specifications:

  • Camera Model: Hollyland Astra P1
  • Sensor: 1/1.8” High-Quality CMOS
  • Effective Resolution: 8.42MP, 16:9
  • Maximum Video Output: UHD 4K up to 60fps
  • Optical Zoom: 30x
  • Digital Zoom: 16x
  • Lens Range: 7.1mm – 210mm
  • Aperture Range: f/1.6 – f/5.19
  • Minimum Illumination: 0.5 Lux
  • Signal-to-Noise Ratio: ≥55dB
  • Pan Range: ±170°
  • Tilt Range: -30° to +90°
  • Pan Speed: 1.7°/s to 100°/s
  • Tilt Speed: 1.7°/s to 69.9°/s
  • Presets: 255 positions
  • Preset Accuracy: 0.1°

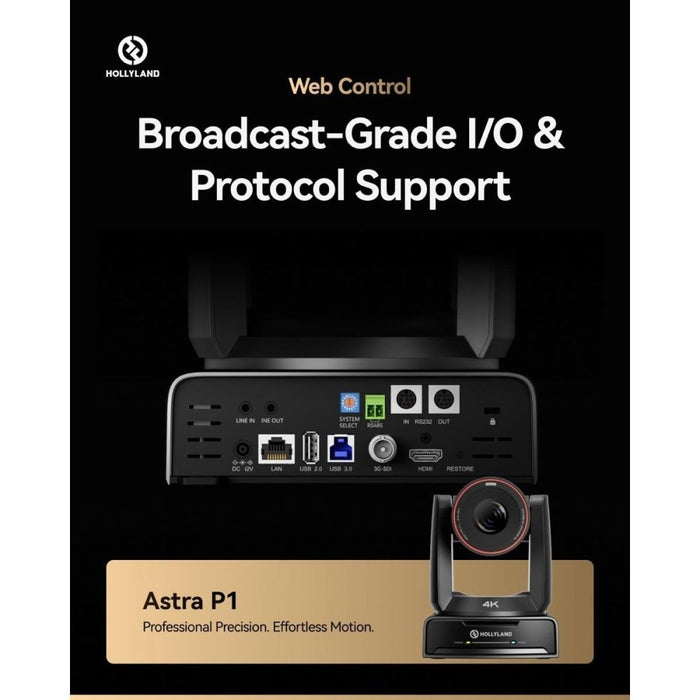

  • Video Interfaces: HDMI 2.0, 3G-SDI, USB 3.0 Type-B, USB 2.0 Type-A
  • Audio Interfaces: 3.5mm Line In, 3.5mm Line Out
  • Control Interfaces: RS485, RS232
  • Network: RJ45 Gigabit Ethernet, 10/100/1000 Mbps
  • Video Compression: H.264, H.265, MJPEG
  • Main Stream Resolution: Up to 3840 x 2160
  • Sub Stream Resolution: Up to 720 x 480
  • Supported Protocols: NDI®|HX3, RTSP, RTMP, SRT, HTTP, TCP/IP, Multicast, DVR
  • Power Input: DC 12V / PoE+
  • Power Consumption: 18W Max
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 60°C
  • Dimensions: 169 x 188 x 226mm
  • Shipping Weight: 5kg

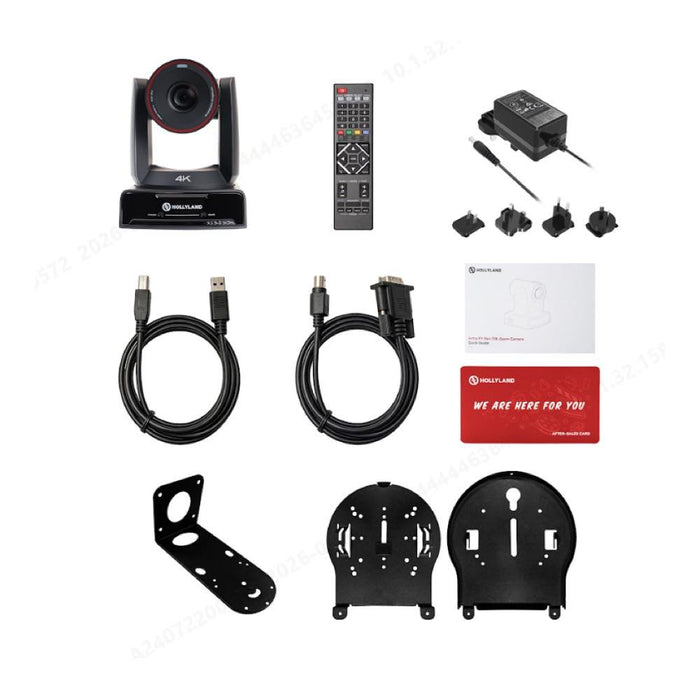

Included:

  • 1 x Hollyland Astra P1 PTZ Camera, NDI Activated
  • 1 x Remote Controller
  • 1 x Power Adapter
  • 1 x USB-B to USB-A Cable
  • 1 x RS232 Cable
  • 1 x Wall Mount Bracket
  • 1 x Ceiling Mount Bracket
