Elite Acoustics | EAE | StompMix 4 | 4Ch Digital Mixer Pedal | w/ DSP Gate, Compressor, EQ, Reverb & Delay

STAFF PICKS
NEW ARRIVAL
Original price $599.00
Original price $599.00 - Original price $599.00
Original price $599.00
Current price $549.00
$549.00 - $588.00
Current price $549.00

or 4x fortnight payments of $137.25 AUD with

Option: StompMix 4 ONLY
{formbuilder:6507}

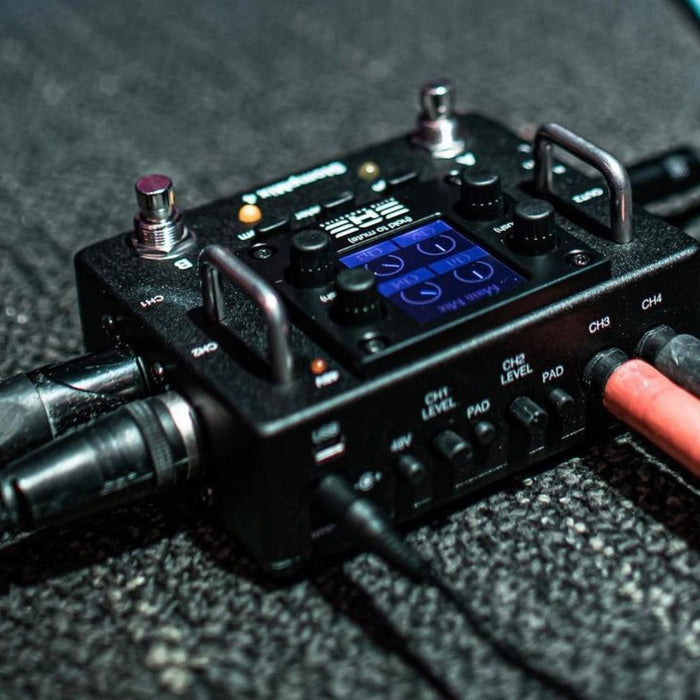

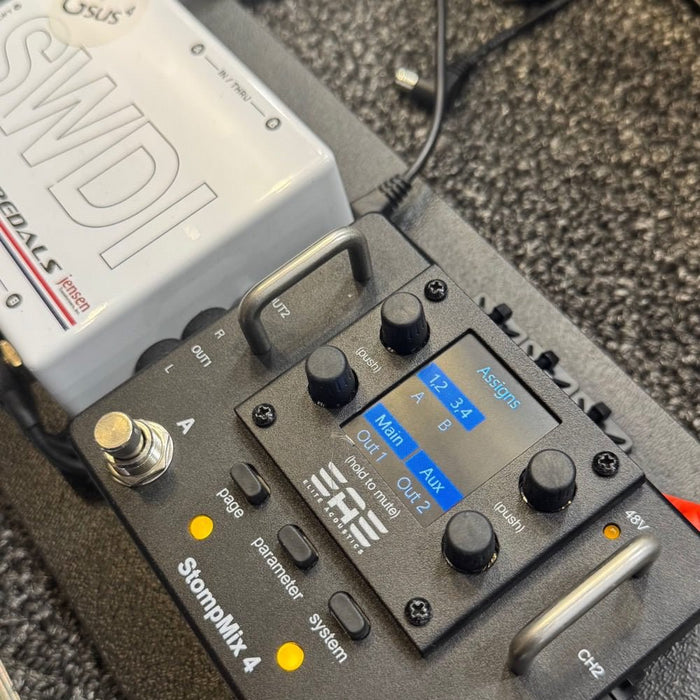

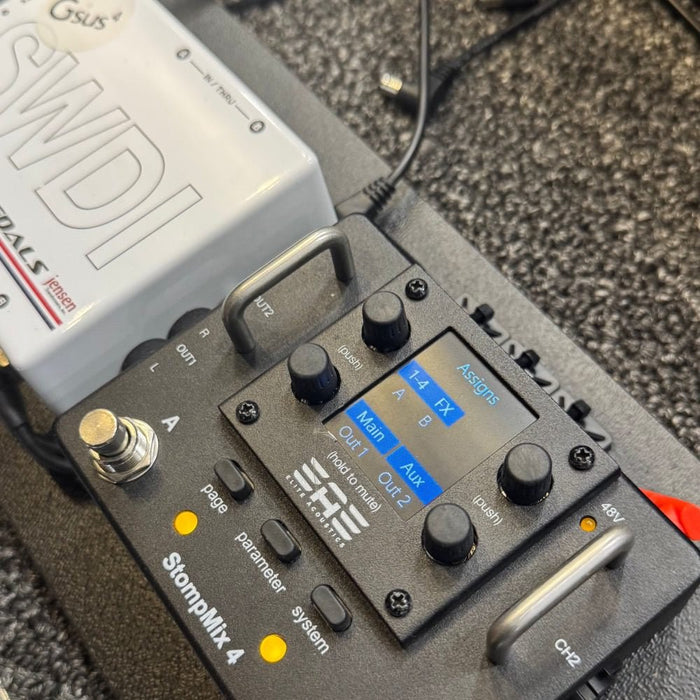

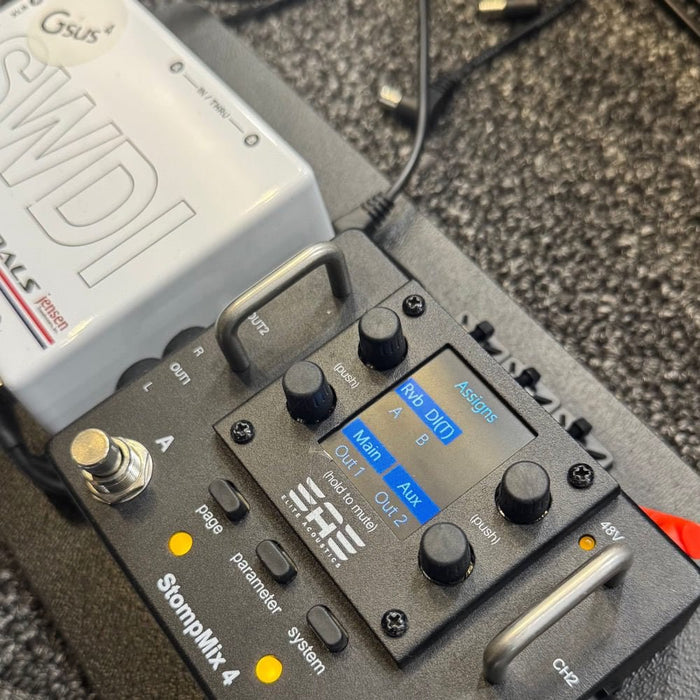

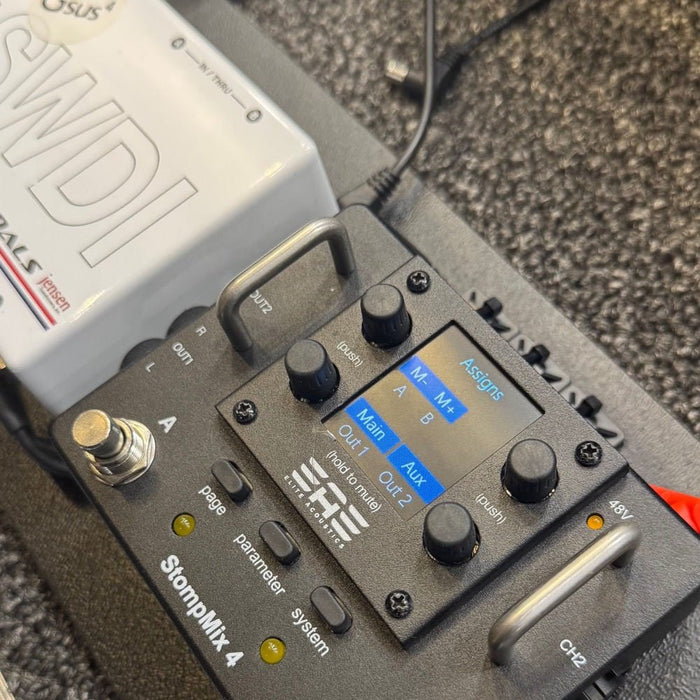

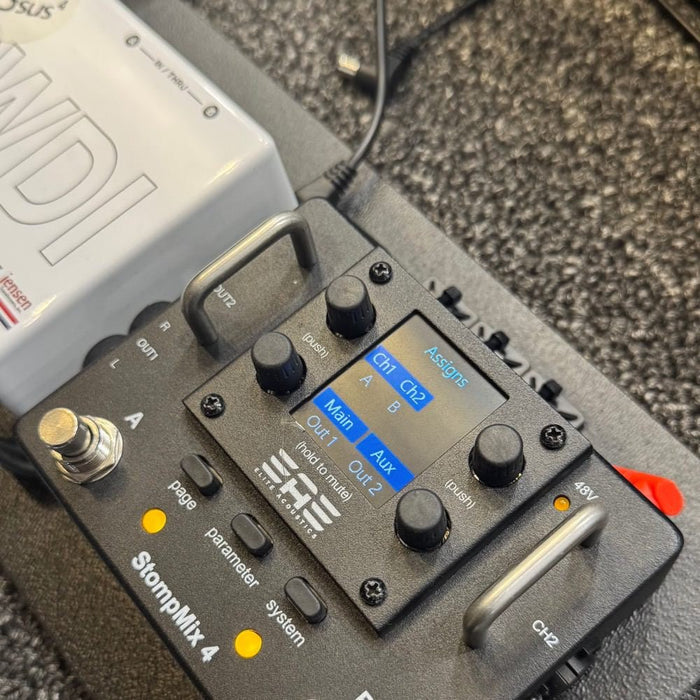

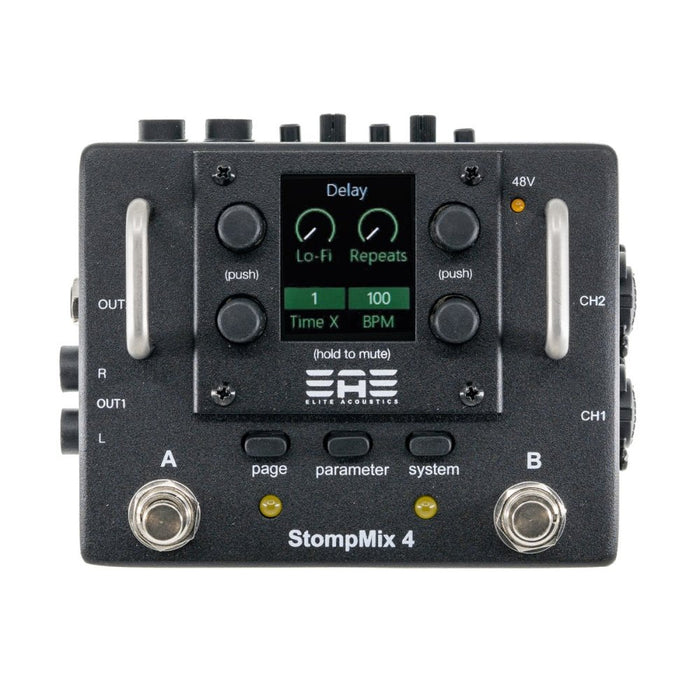

The StompMix 4 Compact Digital Mixer Pedal is built with a powerful 32-bit DSP engine and a compact lightweight stomp box package.

The StompMix 4 offers a full featured, highly intuitive four channels Digital Mixer with a colour display.

The DSP engine provides a Compressor, Limiter, Mid sweepable EQ, High-Pass Filter, Notch Filter, Phase reverse to each of the 4 inputs.

Analog inputs consisted of 2 Class A solid-state Mic pre-amps with +48V Phantom power and two 1/4″ TS line inputs.

Two sets of stereo Mix outputs are selectable between a 1/8″ TRS jack and 2 1/4″ TS jacks .

2 Footswitches with assignable functions.
  • 4 Mono inputs: 2x mic (XLR Combo jack), 2x line (1/4" TS jack)
  • 2x Class-A Mic inputs with TRIM and PAD (CHAN 1 and 2)
  • 2 x Main Out: selectable between a 3.5 mm jack or 2 x 1/4" Balanced TRS jack
  • Effects per channel: Noise Gate, Compressor, EQ, Reverb, Delay
    • Independent Reverb effect on each channel
    • 2 notch filter available on each channel
    • High Pass Filter and Phase Reverse on each channel
    • Noise Gate and Compressor on each channel
    • 3 Band EQ with Sweepable MID on each channel
    • Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
  • LCD control
  • Assignable Footswitch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)
  • Up to 10 individual mixer scenes can be saved and called up using the foot switch
  • Aux sends per channel (pre or post available)
  • 48 V phantom power
  • Shielded against HF interference
  • Current consumption: 400 mA
  • Power supply with a 12 V DC or 9V DC (centre positive tip)
  • Dimensions (W x D x H): 41 x 90 x 50 mm
  • Weight: 816 g
  • Designed & assembled in USA

Click Here to download User Manual v1.02

Click Here for Frequent Q&A and Firmware Update Info.
