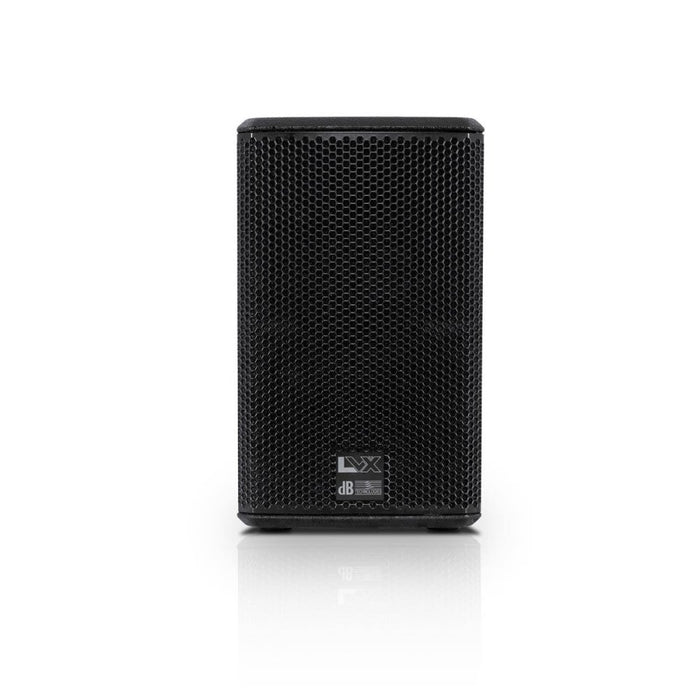

dB Technologies | LVX8 | Integrated 400W/RMS Digipro® | 2-Way Active Loudspeakers

SOLD OUT
ON SALE!
Sold out
Original price $982.00
Original price $982.00 - Original price $982.00
Original price $982.00
Current price $870.00
$870.00 - $870.00
Current price $870.00
{formbuilder:6507}

2-way Active Speaker with 400W Digipro® digital bi-amp power, 24-Bit/48Khz DSP, 1 x 8" woofer with 1.5", VC 1" driver with rotatable asymmetric 90°/40°x60° horn, SPL peak 121dB. Dimensions 260x420x260mm, 9.5kg

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

 LVX 8 is provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods,

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finshes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.

Acoustical data

  • Frequency Response [-10dB]: 65 - 20.000 Hz
  • Frequency Response [-6dB]: 80 - 19.000 Hz
  • Max SPL: 121 dB
  • HF: 1"
  • Directivity: 90 x 70°
  • Horn: Rotatable CD Horn
  • LF: 8"

Amplifier

  • Amp Technology: Digipro® G2
  • Amp Class: Class-D
  • PRG Power: 400 W
  • Peak Power: 800W

Processor

  • Controller: DSP 24bit/48kHz
  • System Presets: Flat, Processed
  • Limiter: Dual Active Peak, RMS, Thermal
  • Crossover Frequency LF-HF: 2050 Hz
  • Slope LF-HF: 24 dB/Octave

Mechanics

  • Housing: MDF
  • Angles Up: Monitor use 40°
  • Handles: 1x top side, recessed
  • Rigging points: 10 x M8
  • Pole Mount: D36 mm
  • Width: 260 mm (10.24 in)
  • Height: 420 mm (16.54 in)
  • Depth: 260 mm (10.24 in)
  • Weight: 10.1 kg (22.27 lbs)
