dB Technologies | LVX12 | Integrated 800W/RMS Digipro® | 2-Way Active Loudspeakers
or 4x fortnight payments of $499.75 AUD with ⓘ

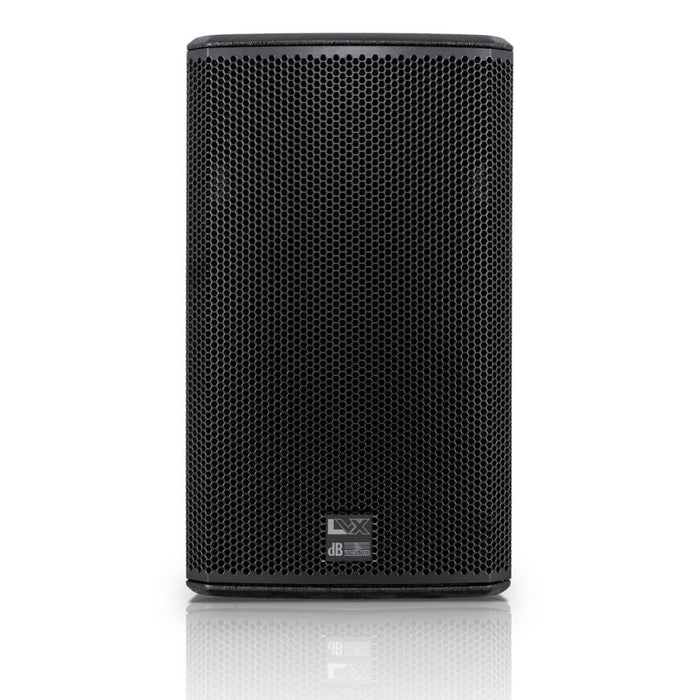

2-way Active Speaker with 800W/RMS Digipro® digital bi-amp power, 24-Bit/48Khz DSP, 1 x 12" woofer with 2 "VC, 1" compression driver with rotatable 90°x40° horn, SPL peak 127dB. Dimensions 360x610x360mm, 16.5kg
The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.
The enclosure is made of robust 12mm plywood with a look very elegant and refined.
LVX 12 is provided with a top handle and 2 side handles to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods
Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.
All models and related accessories are available in black or withe finshes.
The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.
Acoustical data
- Frequency Response [-10dB]: 55 - 20.000 Hz
- Frequency Response [-6dB]: 62 - 19.000 Hz
- Max SPL: 127 dB
- HF: 1"
- Directivity: 90 x 40°
- Horn: Rotatable CD Horn
- LF: 12"
Amplifier
- Amp Technology: Digipro® G2
- Amp Class: Class-D
- PRG Power: 800 W
- Peak Power: 1600 W
- Processor
- Controller: DSP 24bit/48kHz
- System Presets: Flat, Processed
- Limiter: Dual Active Peak, RMS, Thermal
- Crossover Frequency LF-HF: 1800 Hz
- Slope LF-HF: 24 dB/Octave
Mechanics
- Housing: Multiplex
- Angles Up: Monitor use 45°
- Handles: 3 (1x top side, 1x side)
- Rigging points: 12 x M10
- Pole Mount: D36 mm
- Width: 360 mm (14.17 in)
- Height: 610 mm (24 in)
- Depth: 360 mm (14.17 in)
- Weight: 17 kg (37.5 lbs)
