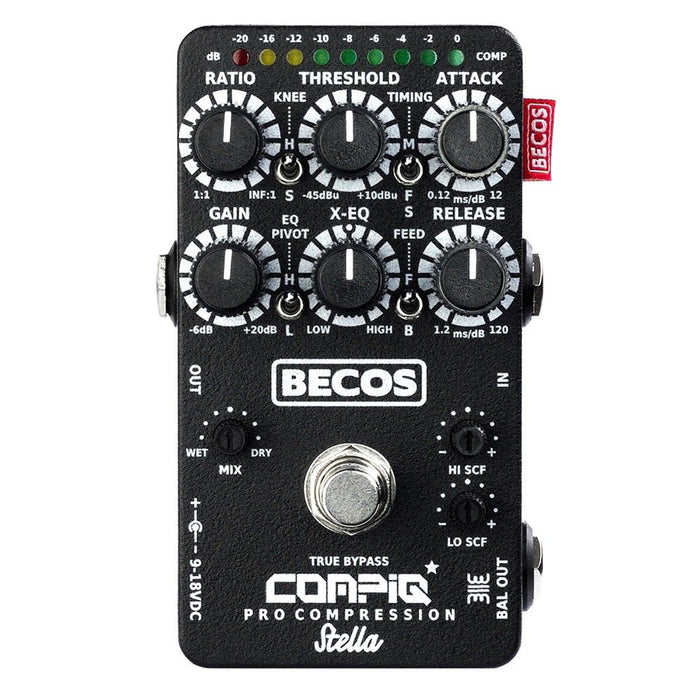

BECOS | CompIQ STELLA Pro MK2 | Compressor Pedal | w/ DITOS Circuit

The CompIQ Stella Pro MK2 stands out as a remarkably powerful compressor/limiter pedal, offering a wide array of parameters for unprecedented control over playing dynamics. The Stella proves versatile for studio applications like bus compression and tracking and delivers outstanding results in live performances. It can be utilized with any instrument, such as guitar, bass, keyboards, synths, electro-acoustic guitars, etc., and even with vocals, with an additional microphone pre-amp.

The optional DITOS Transformer-Coupled Balanced Output DI is available as an add-on board. Built with Burr-Brown™ technology and highly advanced line drivers, the DITOS provides complementary signal conditioning and a warm musical voicing to any instrument.

Full Studio Compression Controls in Pedal Format

The CompIQ STELLA Pro MK2 is a feature-complete and powerful all-analog compressor/limiter pedal for use with guitar, bass, or any other instrument or audio source. It is also one of the very few that can be powered by an internal 9V battery or an external supply in the range of 9-18VDC. It is built around the flagship 4320 THAT Analog Engine^® which incorporates a true RMS-level detector that accurately measures the input signal and processes it through an ultra-transparent-sounding Blackmer^® VCA. Unlike peak detection, commonly used in other compressors, the RMS (root mean square) sensor calculates an average peak level of the signal, aligning more closely with how human hearing perceives differences in loudness.

• Full analog circuit with true by-pass
• True RMS-level detector for accurate input signal measurement
• High-performance Blackmer^® VCA compression engine
• Optional DITOS board for transformer-coupled balanced output (10KΩ impedance)
• Feed Forward/Feed-back compression modes
• Ratio 1:1 to infinite:1 (limiter)
• Threshold -45dBu to +10dBu
• Make-up Gain -6dB to +20dB
• Soft/Hard compression knee selection
• Manual timing: attack 0.12-12 ms/dB of gain reduction, release 1.2-120 ms/dB of gain reduction
• Fast/Slower dynamic auto attack and release timing with hold for peaks over the threshold
• X-EQ with selectable frequency pivot 330Hz for bass instrument or 1KHz for guitar or other applications
• Voicing: Flat, Spark, Tight, Punch (internal DIP-switch selectable)
• Lows/Highs variable side-chain filter with boost & cut around 90Hz and 3kHz
• Dry/Wet mix
• 8-LEDs gain reduction meter
• High-end quality Burr-Brown FET audio ICs, low tolerance metal-film resistors, Panasonic, Kemet, Cornell Dubilier plastic film audio capacitors, Gold-plated multi-layers PCB, Gold-plated micro-switches
• Genuine Hammond black-powdered aluminum enclosure
• Runs on standard 9V internal battery or 9-18 V DC external power supply (not included), center negative, 12mm long barrel plug
• 3-year warranty (direct to manufacturer, international, transferable)
• Hand-assembled in Vienna, Austria

For more information, please visit the manufacturer's website.
