Audio Technica | ATM230 | Hypercardioid Dynamic Instrument Microphone

LIMITED STOCK
ON SALE!
Original price $299.00
Original price $299.00 - Original price $299.00
Original price $299.00
Current price $234.00
$234.00 - $234.00
Current price $234.00

or 4x fortnight payments of $58.50 AUD with

{formbuilder:6507}

OVERVIEW

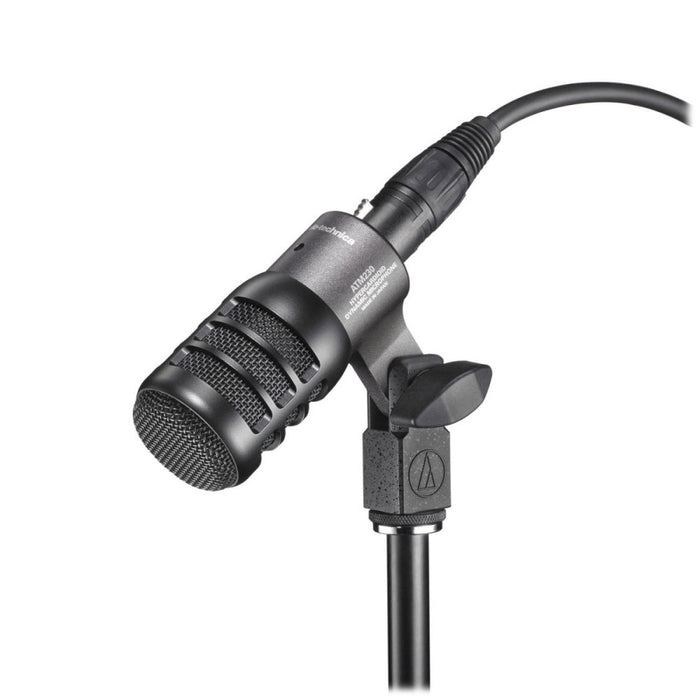

The ATM230 hypercardioid instrument microphone brings a compact drum model to Audio-Technica’s popular Artist Series line. The mic’s proprietary capsule is designed to excel in high SPL applications, delivering full, well-rounded audio with an exceptional low-end. The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic’s low-profile design, which allows it to be placed in a wide variety of setups. All this makes the ATM230 ideally suited for miking toms, snare and other percussion instruments.

The ATM230 features rugged metal construction that stands up to the rigors of live and studio applications, and comes with an AT8665 drum mount and a protective pouch.



FEATURES

  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  •  Handles very high SPL at close range
  •  Big, warm low-frequency response with excellent attack
  •  Low-profile design permits versatile placement around drum kit
  •  Rugged, all-metal design and construction
  •  Includes AT8665 drum mount and a soft protective pouch





SPECIFICATIONS

ELEMENT

Dynamic

POLAR PATTERN

Hypercardioid

FREQUENCY RESPONSE

30-12,000 Hz

OPEN CIRCUIT SENSITIVITY

–54 dB (1.9 mV) re 1V at 1 Pa

IMPEDANCE

600 ohms

WEIGHT

292 g (10.3 oz)

DIMENSIONS

82.5mm long, 38mm maximum diameter

OUTPUT CONNECTOR

Integral 3-pin XLRM-type

ACCESSORIES

AT8665 drum mount for 5/8″-27 threaded adapter; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch

AUDIO-TECHNICA CASE STYLE

R2

Polar Pattern
Frequency Response
