Audio Technica | AE6100 | Hypercardioid Dynamic Handheld Microphone

OVERVIEW

The Artist Elite AE6100 hypercardioid dynamic vocal microphone delivers clean articulation, fast transients and high-output, assertive sound for the uncompromising vocalist. With a polar pattern tailored for outstanding on-axis response, the microphone offers maximum feedback rejection and superior anti-shock engineering for low handling noise. For ultimate protection against vocal plosives, the mic’s hardened-steel outer grille is lined with fine steel mesh and a layer of open-cell foam. A foam disk positioned on top of the element assembly provides the final layer of ‘pop’ protection.

FEATURES

•  Assertive sound for the uncompromising vocalist
•  Great presence with excellent monitor cut
•  High output, fast transients and clean articulation

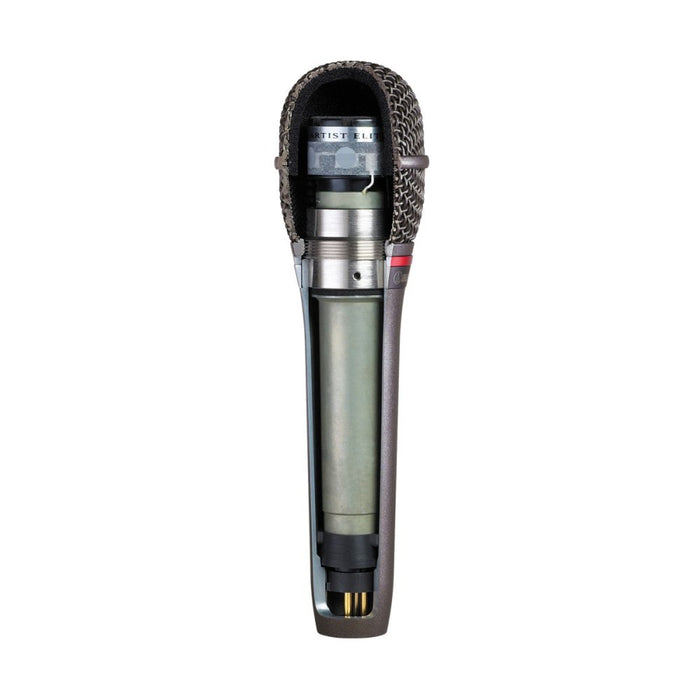

•  The back-cavity assembly 'floats' inside the handle shell, providing exceptional isolation from handling noise
•  Maximum feedback rejection
•  Hypercardioid polar pattern improves isolation of desired sound source
•  Superior anti-shock engineering for low handling noise
•  Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
•  Quiet-Flex® stand clamp provides silent, flexible microphone positioning
•  Tough, durable, resilient - built for the road

SPECIFICATIONS

Element	Dynamic
Polar Pattern	Hypercardioid
Frequency Response	60-15,000 Hz
Open Circuit Sensitivity	-55 dB (1.7 mV) re 1V at 1 Pa
Impedance	250 ohms
Weight	310 g
Dimensions	177mm long, 48mm head diameter, 33mm to 22mm tapered body diameter
Output Connector	Integral 3-pin XLRM-type
Accessories	AT8470 Quiet-Flex® stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
Polar Pattern
Frequency Response
