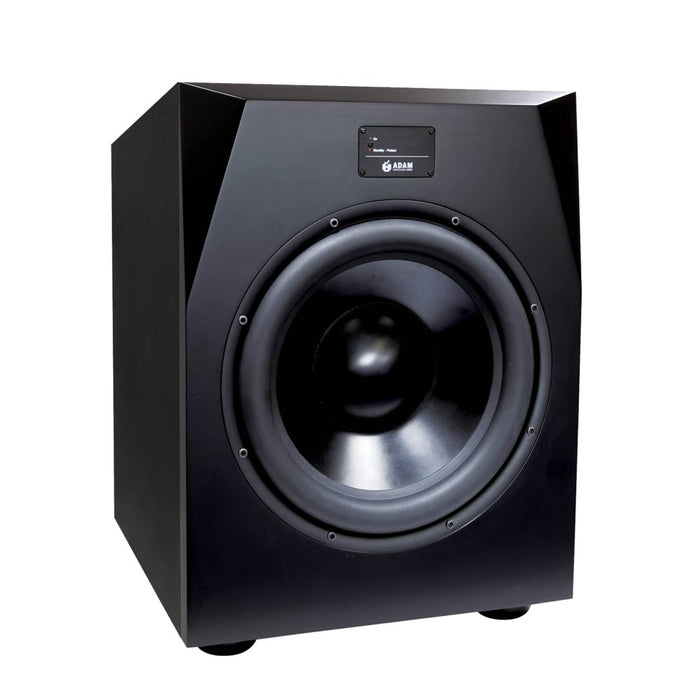

ADAM | Sub 15 | 15" 1000W Active Subwoofer Studio Monitor

The Sub15 is an extremely powerful subwoofer capable of extending the frequency range of main and midfield monitors down to 20Hz. The sturdy 15" woofer is made of an exceptionally rigid aluminum membrane and is driven by two powerful magnets and a 100mm voice coil. With 1000 Watts (RMS) power capability, the PWM amplifier has an efficiency factor of nearly 90%. With these performance features, the Sub15 is easily capable of handling critical musical passages with intense and sudden bass peaks without showing signs of distortion or overheating. The downward firing bass port has been specially designed with ample dimensions and rounded edges to cancel any port noise.

In order to adjust the sound of the Sub15 to different room situations or individual taste, we have implemented several controls including one for volume (-60dB to +6dB) and one for the crossover frequency (50Hz - 150Hz). The satellite speakers can either be driven full range or high pass filtered at 85Hz. This allows the Sub15 to be easily integrated into a Dolby surround setup. Unfavorable phase relationships between the satellites and the subwoofer, particularly in the crossover frequency range, can be easily controlled with the supplied phase reverse switch.

The Sub15 is also very flexible when it comes to connectivity: There are balanced (XLR) and unbalanced (RCA) input/output connectors to be found on the rear of the subwoofer.

The Sub15 combines excellent transient response capability with an impressive low frequency performance to enable a genuinely musical reproduction experience. With a high and undistorted sound pressure output of 120dB maximum SPL at one meter, the Sub15 makes the perfect subwoofer for mid-sized and larger control rooms.

ADAM Audio subwoofers are designed with one primary goal in mind: Achieving absolute accuracy and an authentic natural sound in the process of music reproduction.

This means combining exceptional bass power with precision and clarity in every subwoofer. These elements are the perfect partners to complement the highly acclaimed clarity and transparency of ADAM monitors in the lower and lowest frequencies.
Panel / Controls

All subwoofers feature a level control (-60dB to +6dB), phase switch (180°) and a variable upper frequency control (50-150Hz). For the satellite outputs, an 85Hz high pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby® recommendations for theater sound and also to relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (‚signal-on/ continuous').

Features

• Frequency response: 20 Hz - 150 Hz
• Max SPL with sine wave acoustic 100Hz to 3kHz at 1m: ≥120 dB
• Crossover frequencies: 50 - 150 Hz
• Height x Width x Depth: 25" (635 mm) x 18.5" (470 mm) x 20.5" (525 mm)
• Warranty: 5 Years
