Blackmagic Design Mini Converter SDI to Audio 4K CONVMCSAUD4K

by Blackmagic Design
$559.00
$559.00 - $559.00
$559.00
$495.00
$495.00 - $495.00
$495.00
Seen it cheaper? Ask us for a PRICE MATCH

or 4x fortnight payments of $123.75 AUD with ⓘ

AU & NZ Shipping Free shipping over $99 within Australia and over $199 to New Zealand. Excludes bulky, heavy and rural deliveries.
14-day returns Eligible returns may be accepted as store credit within 14 days, subject to product condition and our returns policy.
Manufacturer warranty All new products are covered by the applicable manufacturer warranty and your rights under Australian Consumer Law.
Shipping & Returns · Contact us
{formbuilder:6507}

Overview

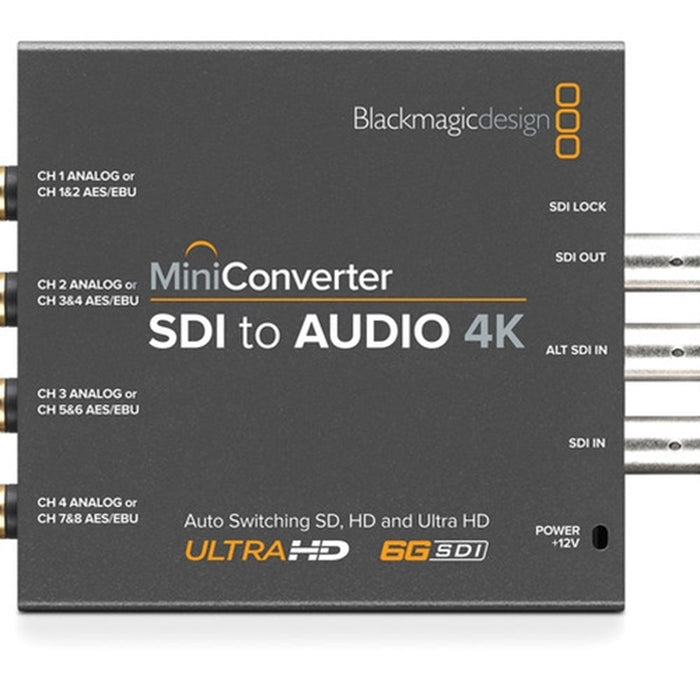

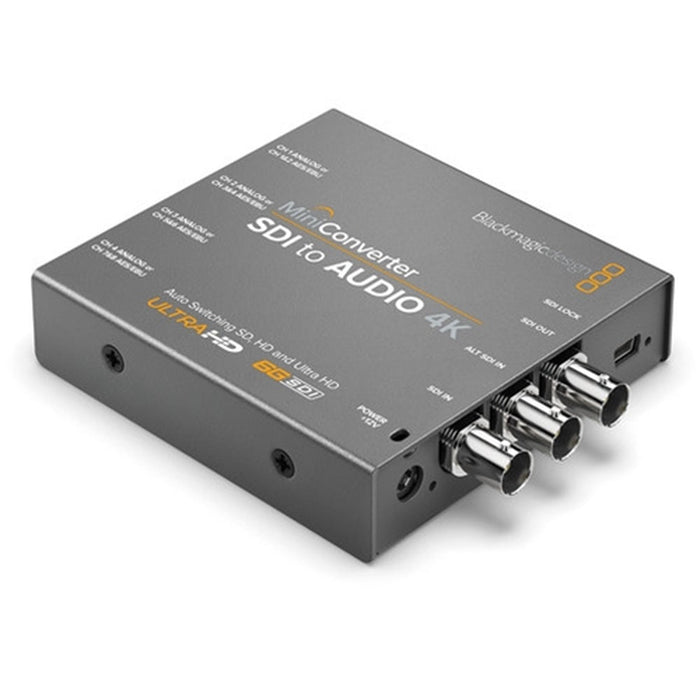

The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.

Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

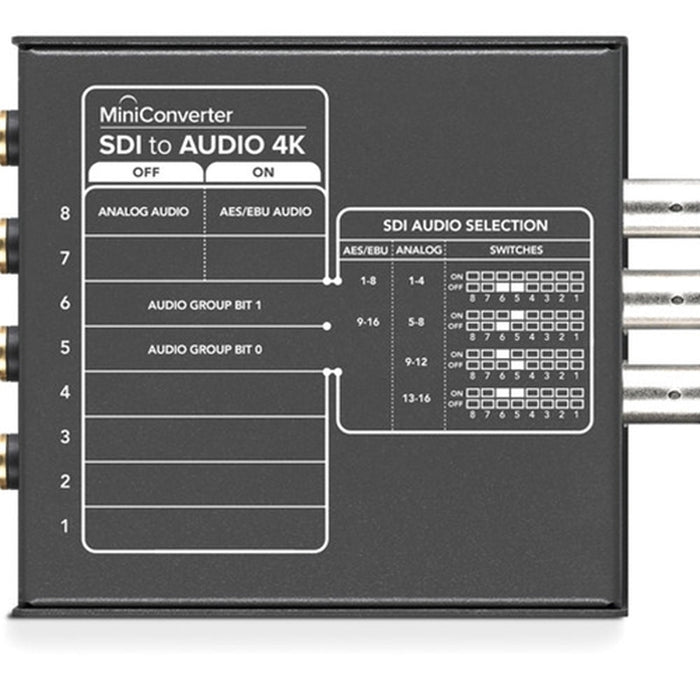

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.

Key Features

  • De-Embeds Audio from SDI Signal
  • Single Link 6G-SDI Input
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 4:2:2 and 4:4:4 sampling and color precision
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
