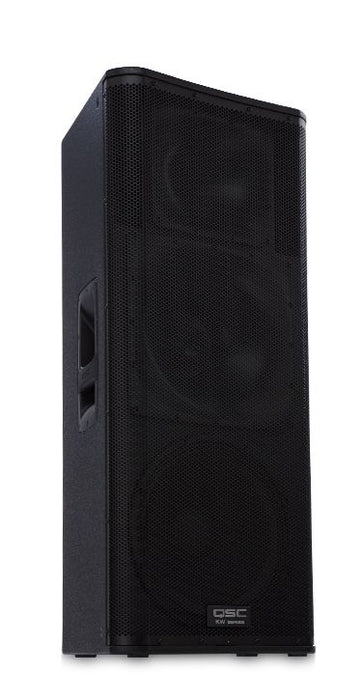

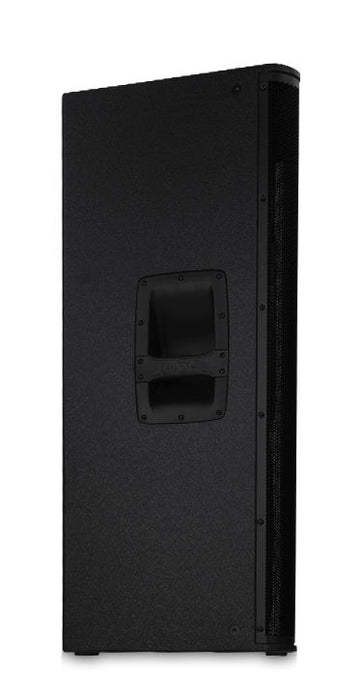

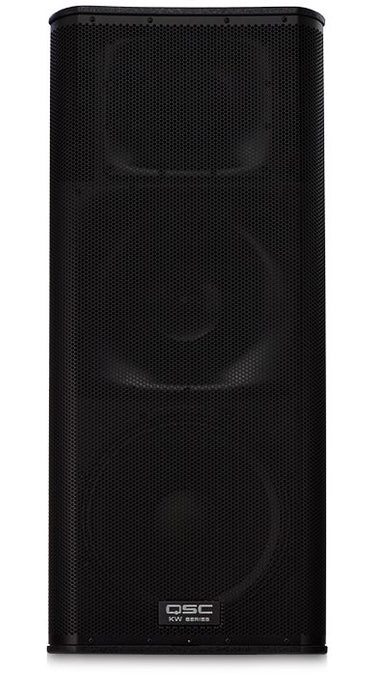

QSC | KW153 | 15" Three-way 1000W Class D Active Loudspeaker

Building on the success of our K Series, the KW Series represents the next evolutionary step in wood enclosure loudspeakers.

Our system engineers have created the KW Series to feature all the groundbreaking electronic attributes of our popular K Series while at the same time designing a product that is both smaller and significantly lighter than previous wood enclosure models.

The QSC KW153 features a QSC designed, 1000 watt (2 x 500 W continuous) Class D power module and is fitted with high-output 1.75" HF device and woofers of the same high quality design.

KW Series features a four-position mic / line gain switch that allows for connection of a wide variety of devices. Combo XLR and 1/4" TRS inputs accept both mic and line level input while a set of RCA phono inputs allow additional connectivity to portable MP3 players, CD players and line-level mixers.

Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.

On-board switches provide preset EQ settings. The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal.

The LF switch can be set to NORM, DEEP™ for additional bass extension, or EXT SUB (full-range models) for use with an external subwoofer.

Key Features:

• 15” woofer; 6.5” midrange woofer; 1.75” diaphragm compression driver
• 75° Nominal coverage angle
• Maximum SPL 134 dB peak
• 1000-watt Class D power modules in all models (2 × 500 W continuous)

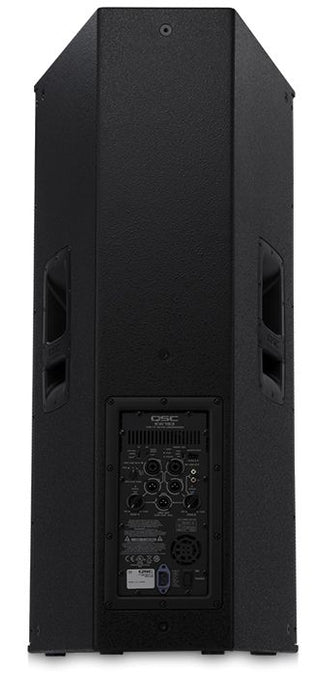

• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performanceDMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain
• Tour-grade 16 gauge steel grilles
• Comfortable ergonomic handles
• 35 mm standard (non-tilt) pole socket
• M10 rigging points for suspended installation
