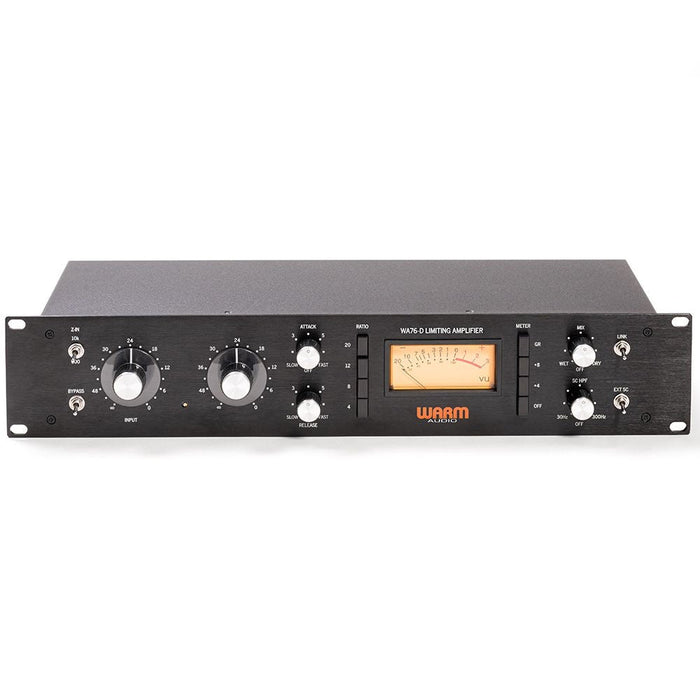

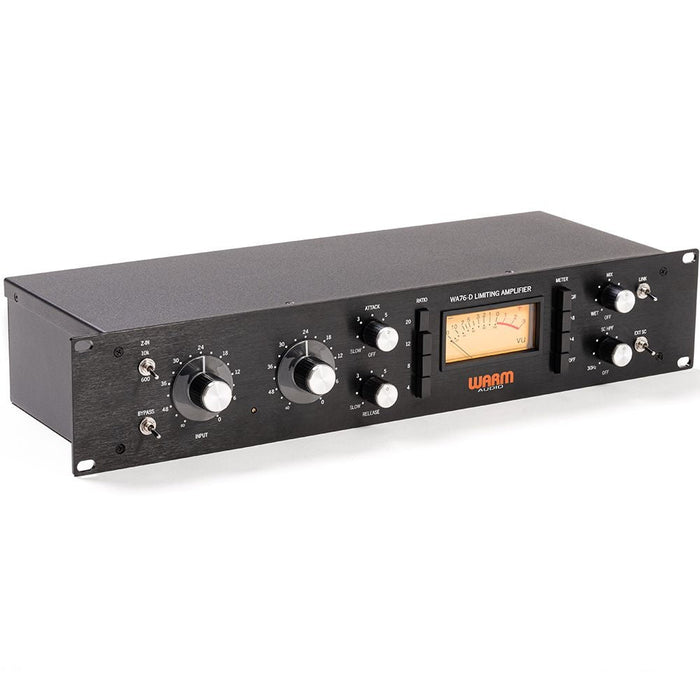

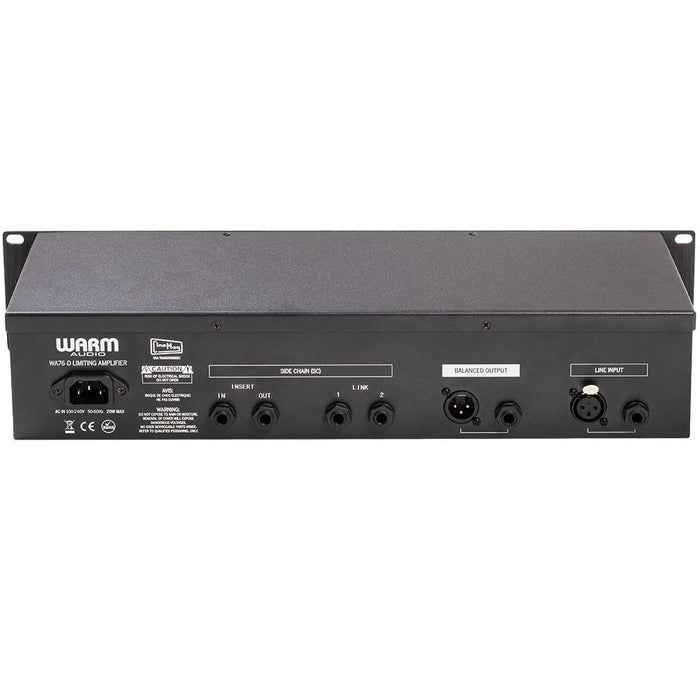

Warm Audio WA76D Single Channel Discrete Clean Gain FET Compressor

by Warm Audio
$989.00 - $989.00
$989.00
$989.00 - $989.00
$989.00

or 4x fortnight payments of $247.25 AUD with ⓘ

{formbuilder:6507}

The WA76-D accurately reproduces one of the fastest and most powerful studio compressors of all time known for its generous headroom, ultra-fast dynamic control, and rich analog tone. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-D achieves authentic 76 rev-D style compression, known for having a “low noise” preamp stage with unmistakably analog character.

Added modern controls to achieve parallel compression, active & true-bypass, selectable input impedance, and sidechain flexibility make WA76-D an ideal choice for modern recording workflows that require vintage tone shaping. WA76-D recreates the legendary tone & control of the vintage 76-style compression used in studios by artists like Chris Lord-Alge, Missy Elliot, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more.

Features
  • 100% Analog Discrete FET Compressor
  • Faithful Recreation Of The Vintage “Rev-D” FET Compressor With Added Recording Features
  • VU Meter Options: Gain Reduction | +8dB Output | +4dB Output | “Off” Powers off unit
  • 100-230v IEC Inlet Universal Power Supply
  • Class-A Line-Level Output Amplifier
  • 100% Discrete Audio Signal Path Using 600? Input Impedance Attenuator
  • Selectable 10k? Input Impedance To Better Match Modern Audio Interface Specifications
  • 100% Dry-Wet Mix Control
  • Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/Octave
  • ¼” Stereo Link & External Sidechain Access
  • Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons
  • 2U 19? Rackmount Chassis
  • Utilises Premium O-12 Input & 5002 Output Transformers From CineMag USA
  • Vintage-Spec Attack & Release: Attack = 20 µS - 800 | Release: 50 mS - 1.1 Second
  • “All-Buttons-In” Setting For Experimental & Hard-Limiter Tones
  • Frequency Response: ± 1 dB 20 Hz - 20 kHz
  • Balanced XLR & TRS Inputs & Outputs
  • Total Amplifier Gain: 53dB
  • Signal-To-Noise Ratio (SNR): 86dB |
  • Total Harmonic Distortion (THD): -64dB (at -8dBu)
For more information, please visit the manufacturer's website.
