A complete solution for Silent Practice & Live IEM Monitoring made to fit on your pedalboard.
Includes an Aux input on 3.5mm TRS, separate mix knob, only outputs on headphones. Use for connecting a phone/PC for silent rehearsal.
TS inputs and buffered outputs. No Aux on the buffered outs. L input is 1 Meg input impedance for direct connection of a guitar or bass. Buffered outputs are 47 Ohms output impedance. Connect to our M.A.I.D. for balanced XLR outs.
Power comes in via standard boss-style coaxial connector, center pin negative. 100 to 200mA supply depending on headphone impedance. Use up to 12V max for additional headroom. Will drive 8 ohm to 300 Ohm headphones or in ears via 1/4 inch TRS connector.
Physical dimensions are: 4.57 in x 3.0 in x 2.0 in (116 mm x 77 mm x 51 mm) including knob height
Connections include:
- TS stereo inputs. High impedance (1Meg) input on the L channel for direct input of an instrument.
- TS stereo buffered outputs. Guitar only.
- 3.5mm stereo Aux input with mix knob.
- Gain switch for Instrument vs Line level (affects only the headphone output.
- Mono sum switch affects both buffered TS outs and the headphone out.
- Polarity affects R input for buffered R out and headphone out.
- Runs on 9 to 12Vdc only. Needs 100mA to 200mA depending on headphone impedance.
- Output is LOUD, noise is low.

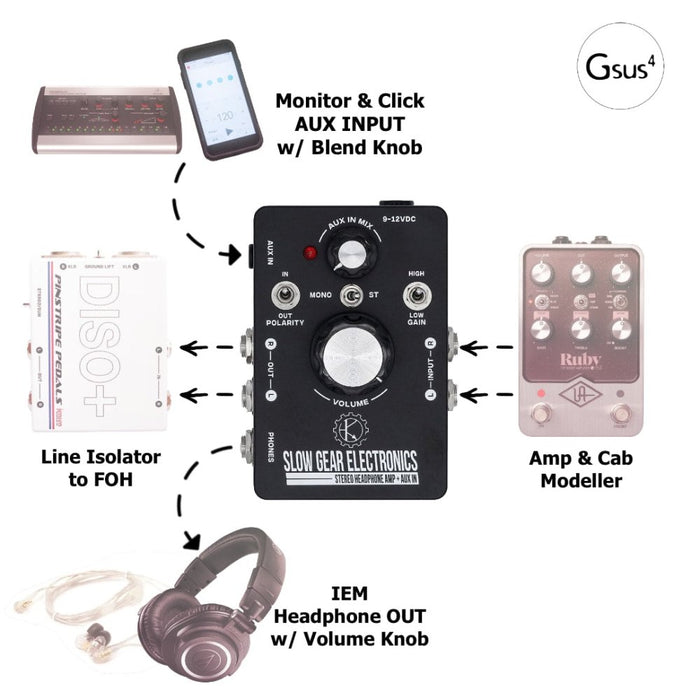

- Pair this with MAID (Micro Active Iso/DI) or DISO+ for a full pedalboard to PA solution.
