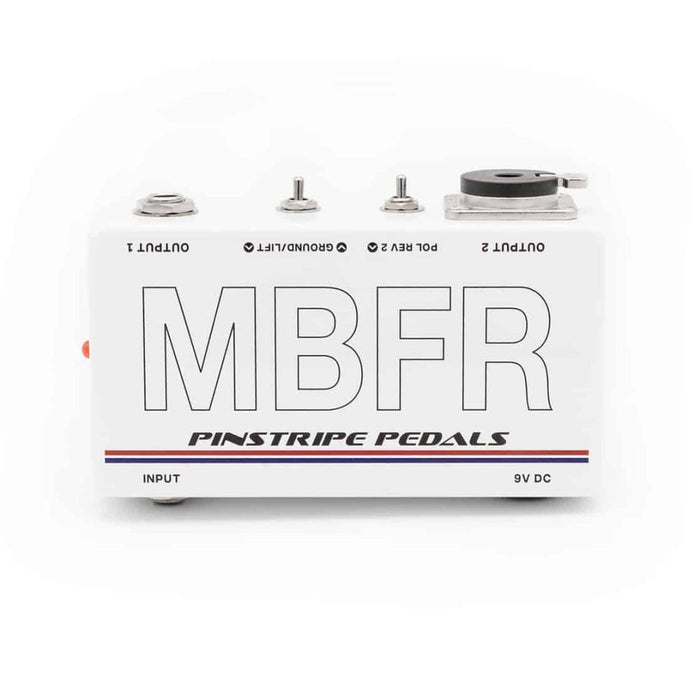

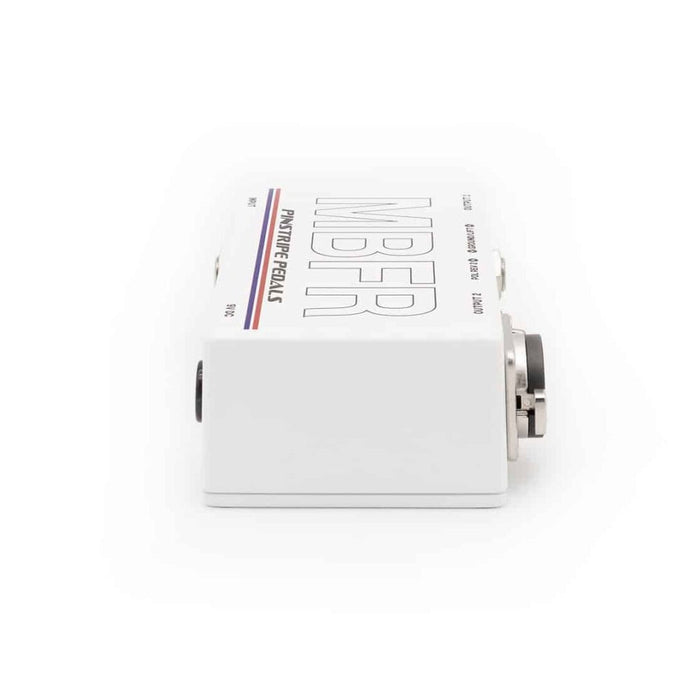

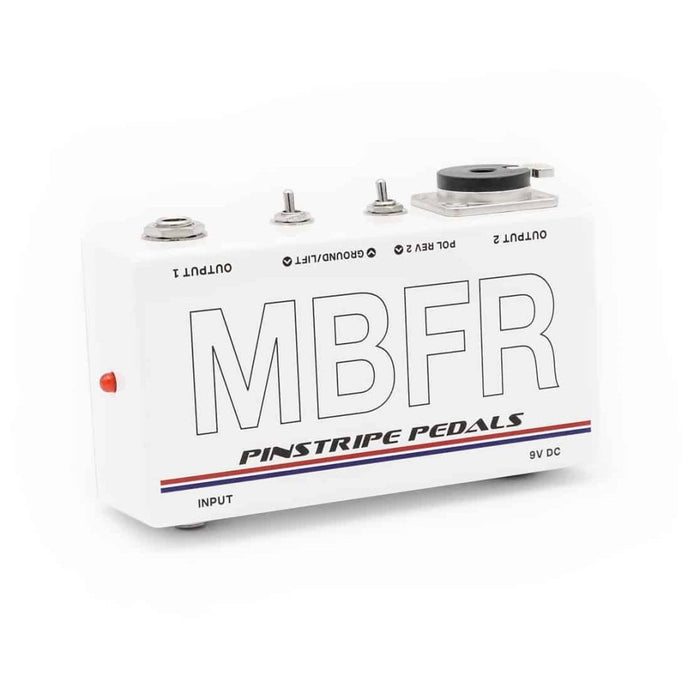

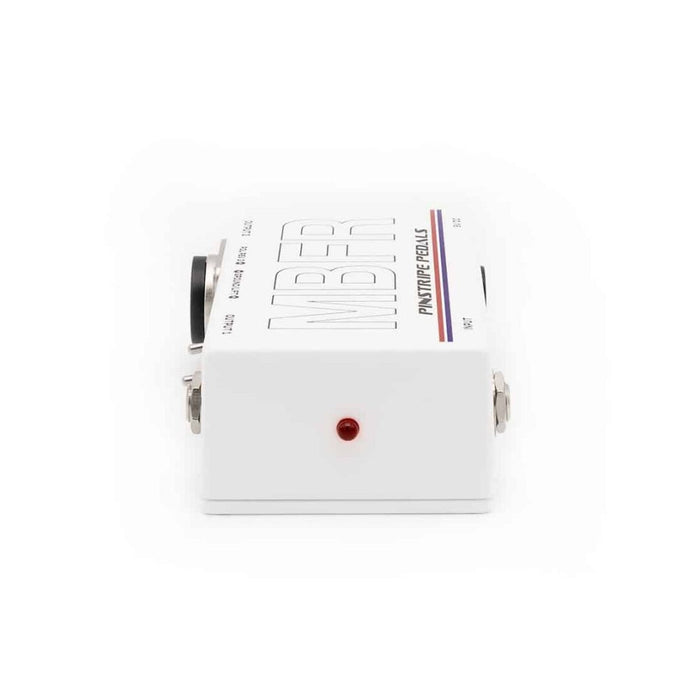

Pinstripe Pedals | MBFR | High-End Buffer & Signal Splitter | w/ Polarity Control & Cinemag Transformer

High-quality, high current buffer/signal splitter for use in multiple scenarios.  It is powered by normal (Boss-style) pedalboard-friendly 9Vdc from any supply (no special adapters needed).  The jacks are oriented specifically to integrate with your other pedals (fits easily on your board).

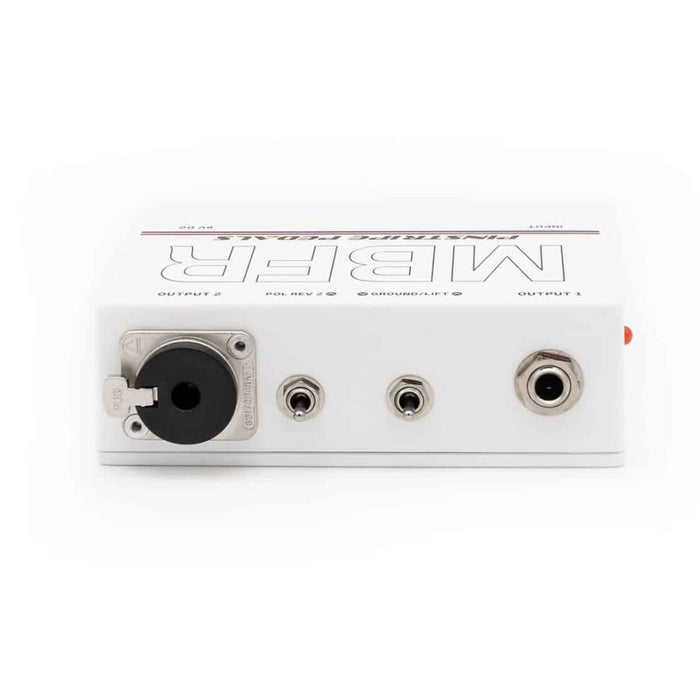

High input impedance TS input.  Output 1 is a low impedance TS output.  Output 2 uses the same buffer as output 1 but adds a line isolation transformer from Cinemag to allow ground lift and Polarity Reverse functions.  This is useful when combining two amplifiers for greater tonal effect.  Output 2 is on an isolated 1/4 inch Switchcraft jack that can be used in either a TS or TRS configuration.

Output 2 can be used as an active DI for recording and allows for balanced connection via TRS or using a TRS to XLR adapter (available separately)

All-metal connectors from Switchcraft.  High-quality, sealed switches from Grayhill.  Handbuilt at our shop in Oklahoma.

• Power: 9Vdc, 20mA draw
• Max In/Out Level: >5Vrms
• Noise: 2 microVolts, 110dBu, A-weighted
• THD (Distortion): <0.0007% (Bandwidth limited at 20kHz), with 150Ohm load
• Input: 1/4 inch, high impedance (1 Megaohm)
• Out1: 1/4 inch, low impedance (47 Ohms) buffered, Frequency Response (+0, -0.5dB): 10Hz to 200kHz
• Out2: TS/TRS 1/4 inch buffered and isolated, Frequency Response (+0, -1dB): 10Hz to 200kHz
• Highest Quality line isolation transformer from Cinemag for the best tone
• Ground Lift Switch to kill hum noise
• Polarity Flip switch to invert the signal to the amp 2 when needed
• Can be used as an active DI for recording (with adapter)
• 4.78 x 2.61 x 1.56 inches (121 x 66 x 40 mm)
