Palmer | AOCLXLRF | AoC Loom XLRf | Audio Over CAT Loom | From Ethercon To 4 XLR Female

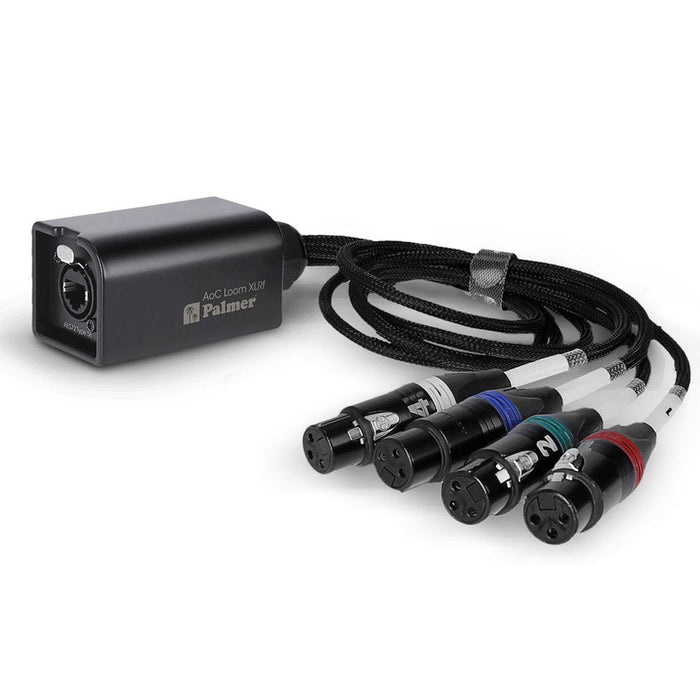

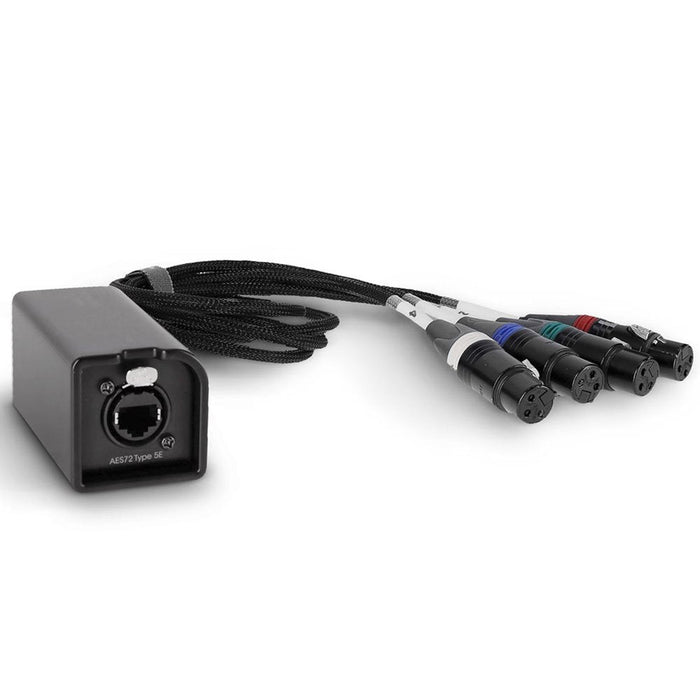

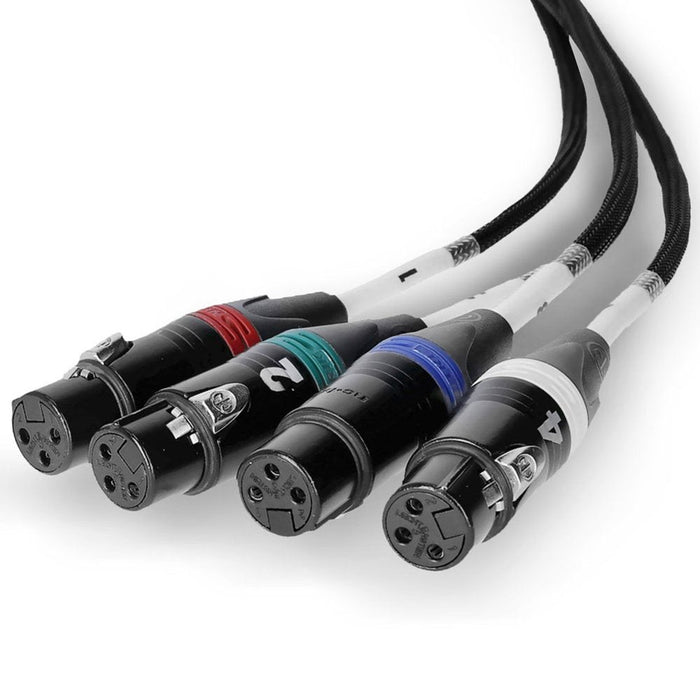

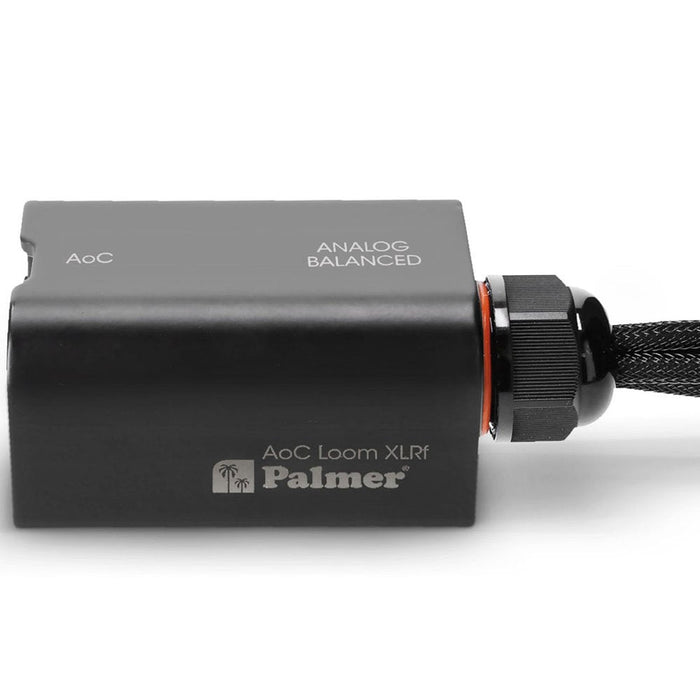

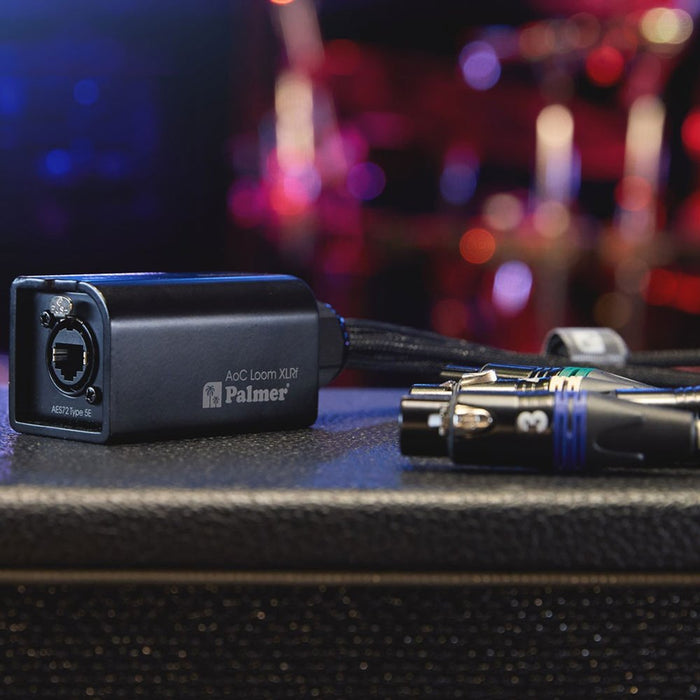

The P AOC L XLR F is a multicore adapter cable that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection. In addition to audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions. Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup. All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer. 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included) etherCON to 4 x XLR female AES72 Type 5E Compatible with 48-volt phantom power Premium Neutrik components Robust mesh cable, 0.5 m Solid casing made of aluminium and steel Engineered in Germany Product type Audio over Cat adapter Number of inputs 4 Input type Balanced Input Connector RJ45 Number of outputs 4 Output type Balanced Output connector XLR female Material Aluminium Material Steel Cable Length 0.5 m Width 128 mm Depth 140 mm Height 50 mm Weight 0,39 kg Operating Temperature - 20 - 70 °C Air humidity < 80 % ( non-condensing ) Audio Max. input level (< 1% THD, 1 kHz) + 32 dBu dBu Frequency range 0 Hz - 20 kHz THD (1 kHz, +4 dBu, unity, unweighted) < 0,0005 % RJ45 pin layout (AES72 Type 5E, balanced wired, even = +) Pin 1 Channel 3 - Pin 2 Channel 3 + Pin 3 Channel 4 - Pin 4 Channel 1 + Pin 5 Channel 1 - Pin 6 Channel 4 + Pin 7 Channel 2 - Pin 8 Channel 2 + Channel color code Channel 1 Red Channel 2 Green Channel 3 Blue Channel 4 White
