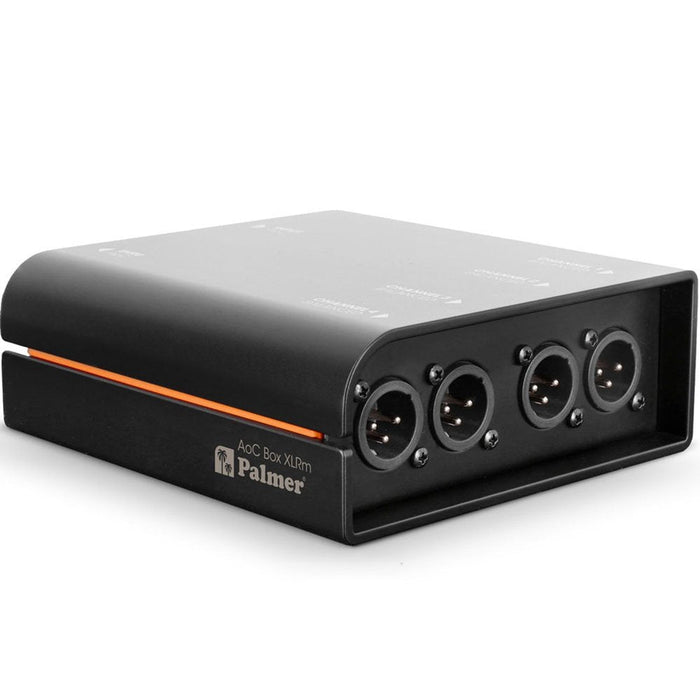

Palmer | AOCBXLRM | AoC Box XLRm | Audio Over CAT Box | From Ethercon To 4 XLR Male

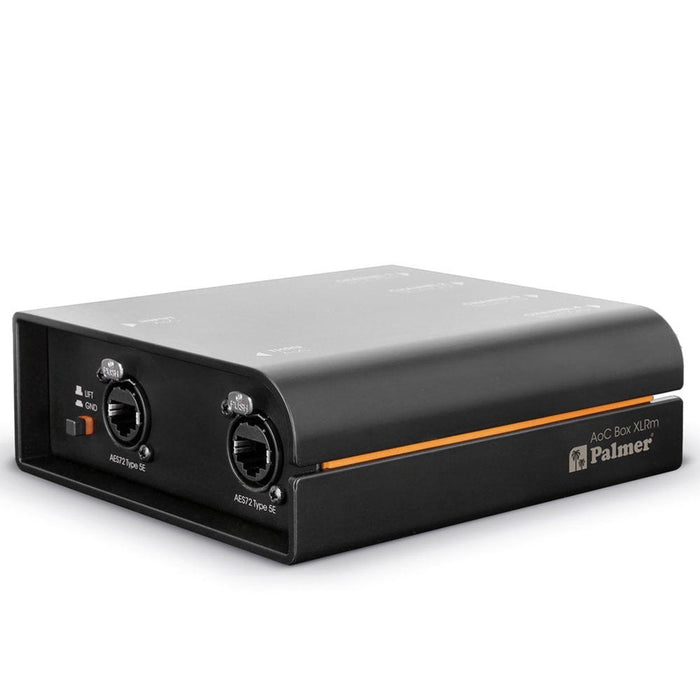

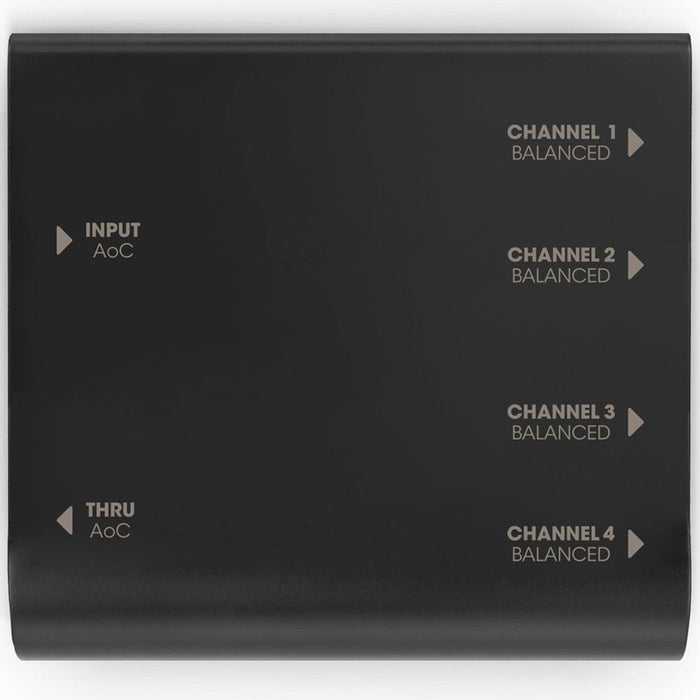

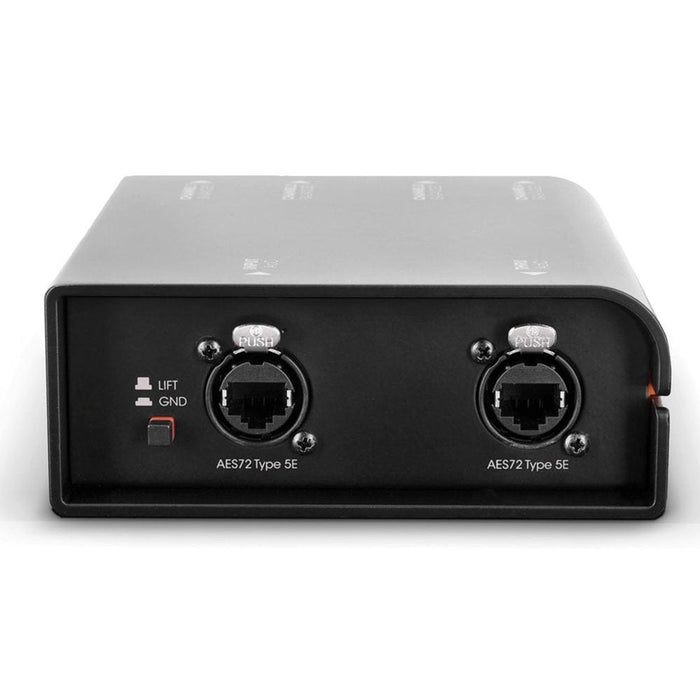

The AOC B XLR M is a multicore box that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). To mitigate the risk of ground loops, the etherCON connection features a ground lift switch. In addition, a secondary etherCON THRU connection – linked in parallel – facilitates the transmission of signals to external devices. Both of the etherCON connections are safeguarded against unlocking to prevent accidental cable disconnection. In addition to audio signals, the AOC B XLR M enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions. Featuring high-quality Neutrik components as well as a solid aluminium-steel housing, the AOC B XLR M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup. All these factors make the AOC B XLR M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer. 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included) etherCON with ground lift switch to 4 x XLR male Additional etherCON THRU AES72 Type 5E Compatible with 48-volt phantom power Premium Neutrik components Solid casing made of aluminium and steel Engineered in Germany, assembled in Europe Product type Audio over Cat adapter Number of inputs 4 Input type Balanced Input Connector RJ45 Number of outputs 4 Output type Balanced Output connector XLR 3-pin male Number of LINK outputs 4 (via RJ45 THRU) Ground lift switch yes (for RJ45 THRU) Material Aluminium Material Steel Width 128 mm Depth 140 mm Height 50 mm Weight 0,5 kg Operating Temperature -20 - 70 °C Air humidity > 80 % (non-condensing) Audio Max. input level (< 1% THD, 1 kHz) +32 dBu dBu Frequency range 0 Hz - 20 kHz THD (1 kHz, +4 dBu, unity, unweighted) < 0,0005 % RJ45 pin layout (AES72 Type 5E, balanced wired, even = +) Pin 1 Channel 3 - Pin 2 Channel 3 + Pin 3 Channel 4 - Pin 4 Channel 1 + Pin 5 Channel 1 - Pin 6 Channel 4 + Pin 7 Channel 2 - Pin 8 Channel 2 +
