Event Lighting DELUGE M800HF Outdoor 800W LED Moving Head w/ Hybrid Framing (DELUGEM800HF) - Gsus4

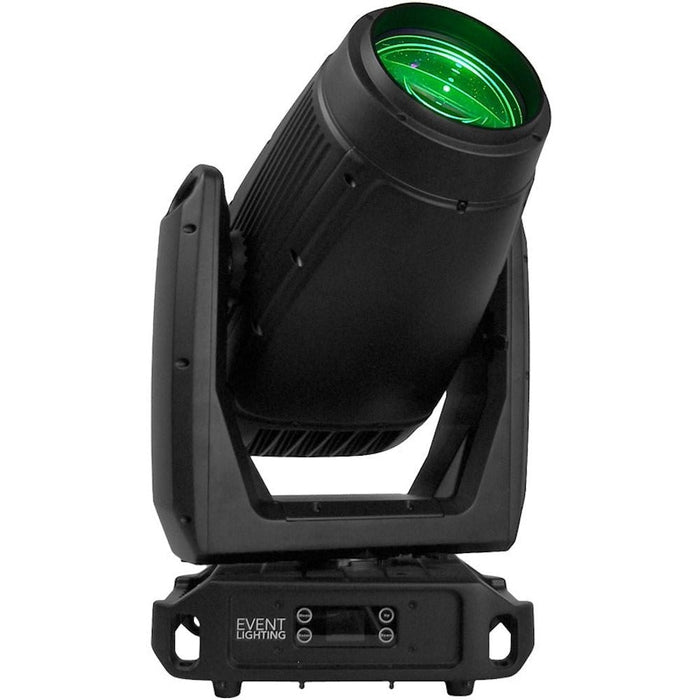

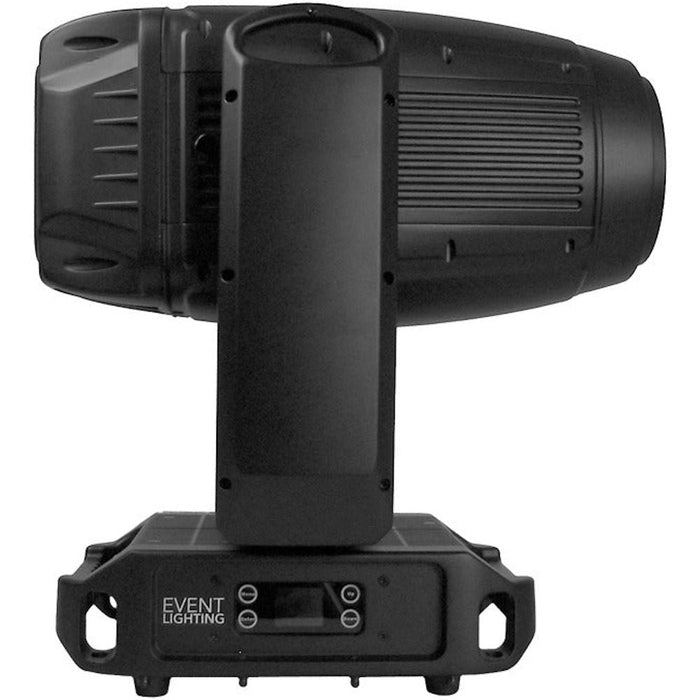

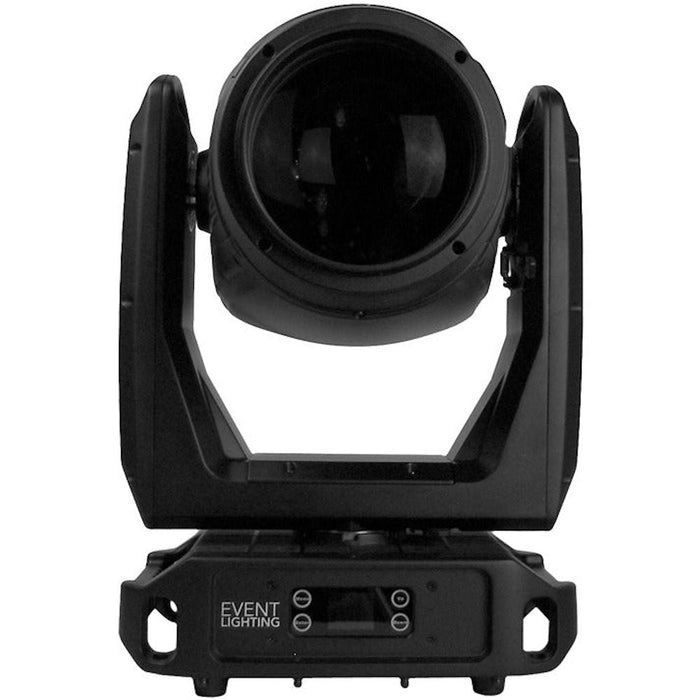

Event Lighting DELUGE M800HF Outdoor 800W LED Moving Head w/ Hybrid Framing

by Event Lighting
$7,789.00 - $7,789.00
$7,789.00
$7,789.00 - $7,789.00
$7,789.00
{formbuilder:6507}

Delivering powerful outdoor lighting can be a challenge, especially when performances demand precision, brightness, and versatility. Standard fixtures often fall short in creating striking effects or adapting to dynamic stage environments, leaving events looking flat and uninspiring. The Event Lighting Deluge M800HF tackles this problem with a high-output 800W LED engine capable of 121,000 lux at 5 metres, ensuring every show is illuminated with crisp, vivid 7,000K colour and precisely sculpted beams.

Customising lighting to match the mood of a performance becomes straightforward with this advanced moving head fixture. A hybrid framing system, CMY colour mixing, CTO correction, and multiple gobo and animation wheels with indexing and shaking functions allow intricate patterns and colour combinations to be created on demand. Motorised zoom, dual prisms, frost, and iris options provide extensive control over the beam, transforming stages, venues, and outdoor spaces into immersive visual experiences.

Built for reliability in demanding environments, the Deluge M800HF features IP65-rated housing, durable ABS and steel construction, and a long-lasting LED lifespan of over 20,000 hours. Flexible control options including DMX512, RDM, Art-Net, and sACN, along with 3/5-pin XLR and RJ45 connections, support seamless integration into professional lighting systems. Brightness, precision, and versatility combine to deliver professional-grade lighting that adapts to a wide range of creative applications.

Features
  • 800W white LED engine delivering 121,000 lux at 5m with a 4.5 beam angle
  • Crisp 7,000K colour temperature with CRI >70 / 90 for accurate colour rendering
  • Hybrid framing system with 4 shutters to sculpt and shape the beam
  • 5-colour wheel with CMY colour mixing and CTO colour correction for versatile colour control
  • Rotating gobo wheel with 7 gobos + open, static gobo wheel with 8 gobos + open
  • Animation wheel with gobo shaking and indexing for dynamic effects
  • Motorised zoom from 4.5 to 50 for flexible beam adjustment
  • Dual 4-facet prisms with indexing capabilities
  • Frost and iris effects for softening and shaping the light
  • Dimming range 0-100% and strobe speed from 1-25 Hz
  • 16-bit movement resolution with pan 540 and tilt 260, plus auto repositioning
  • Control via DMX512, RDM, Art-Net, and sACN with 23 / 32S / 32F / 42 channel options

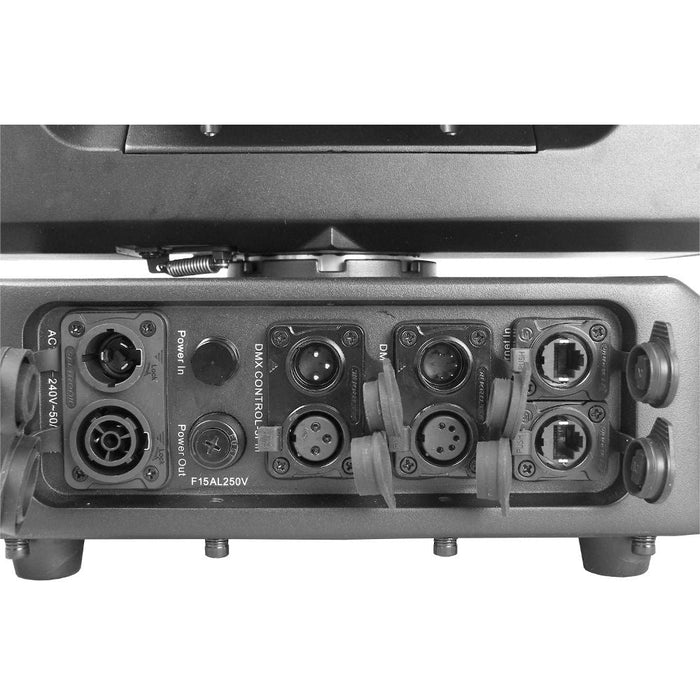

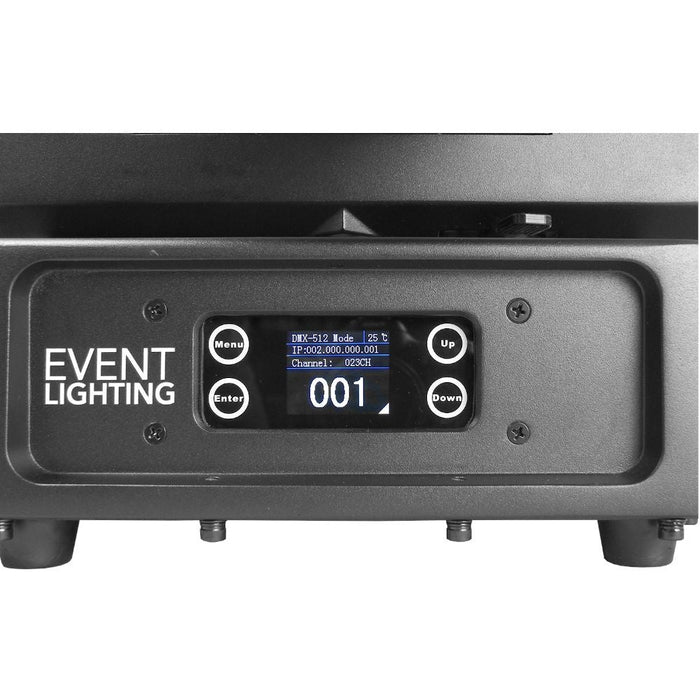

  • 3-pin/5-pin XLR and RJ45 in/out connections with LCD control panel and 4 touch buttons
  • Durable ABS & steel housing in matte black finish, IP65 rated for outdoor use
  • Compact dimensions: 358.2 x 239.8 x 658mm (14.1" x 9.4" x 25.9") and net weight 29 kg (63.9 lbs)
  • Max power consumption 910W with universal input voltage 100-240V AC, 50/60Hz
  • LED lifespan over 20,000 hours for long-lasting performance
For more information, please visit the manufacturer's website.
