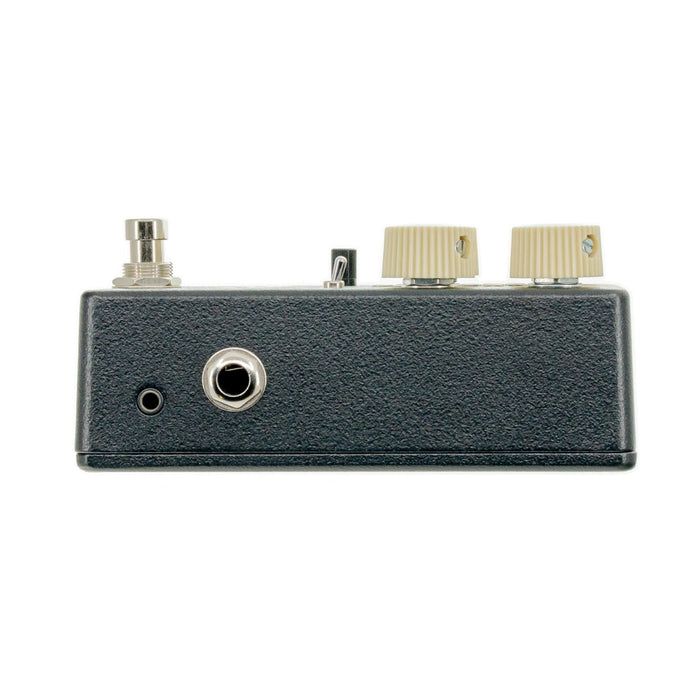

HTJ-WORKS | Deluxe NanoVerb Amp 64' | DNA64' | Tube Preamp w/ Reverb, Cab Sim & Headphone Out | Inspired by 64' Deluxe Reverb Amp

The Deluxe Nanoverb Amp 64’ blends vintage tube-driven tone with modern digital versatility in a compact, pedal-like form. Built more like an amp than a traditional effects pedal, it houses a full-fledged vacuum tube preamp and digital reverb, delivering surprisingly robust sound pressure from a small chassis. The design faithfully recreates the revered 1964 Vibrato Channel from the Deluxe Reverb amplifier, aiming to reproduce its classic studio-quality vibe.

This unit is a meticulously crafted fusion of analog and digital. Both EQ circuits (including their curves and constants) mirror the original amplifier’s design, using film coupling capacitors and passive tone filters. Resistors are high-quality carbon composite and DALE components. The preamp circuitry is laid out with a near hand-wired approach, giving it an authentic, organic feel.

Powered by a JJ 12AX7 vacuum tube, the plate resistor operates at a boosted voltage of around 280V. Functionality includes a vacuum tube pre‑main, digital reverb, master volume, stereo emulated output (via analog-modeled open‑back 1x10 cabinet simulator), and an AUX input. A 3.5 mm stereo output also supports headphone use or line-level connection.

Designed for true versatility, this unit can make a solid-state amp like the Roland JC-120 respond like a genuine tube amp, control an amp via its return input, or operate as a standalone reverb pedal with dual EQ.

A dedicated through-bypass circuit enables connection to an external power amp—just ensure the red LED is illuminated to safeguard your speakers from damage.

Compact but solid, the Deluxe Nanoverb Amp 64’ is perfect for artists who find carrying a full amplifier cumbersome, or for those who feel that digital amps fall short of analog warmth. Though it appears petite and unassuming, it’s a rugged, no‑nonsense tone machine—unstoppable in studio or live settings. The tone is clean and authentic, with no unwanted coloration—making it timeless and universal, regardless of a player’s skill level.

Key Features

• Analog EQ Circuits with Film Capacitors & Passive Filters

• High-quality Resistors (DALE, Carbon Composite)

• JJ 12AX7 Vacuum Tube with 280V Plate Voltage

• Built-in Digital Reverb

• Analog Cabinet Simulator on Line Output (1×10 Open-Back Cabinet)

• 3.5mm TRS Line / Headphone Output

• AUX input (3.5 mm)

• True Bypass & Through-Bypass Functionality For Seamless Integration with Power Amps

• Internal DIP switch simulates the VIBRATO channel with Input 1 (Hotter / Brighter) or Input 2 (Quieter / Darker) selection (Factory Default: Input 1)

• Compact dimensions: 62 × 118 × 39 mm

• Powered by 12 VDC centre negative (500 mA+, Sold separately)
