The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

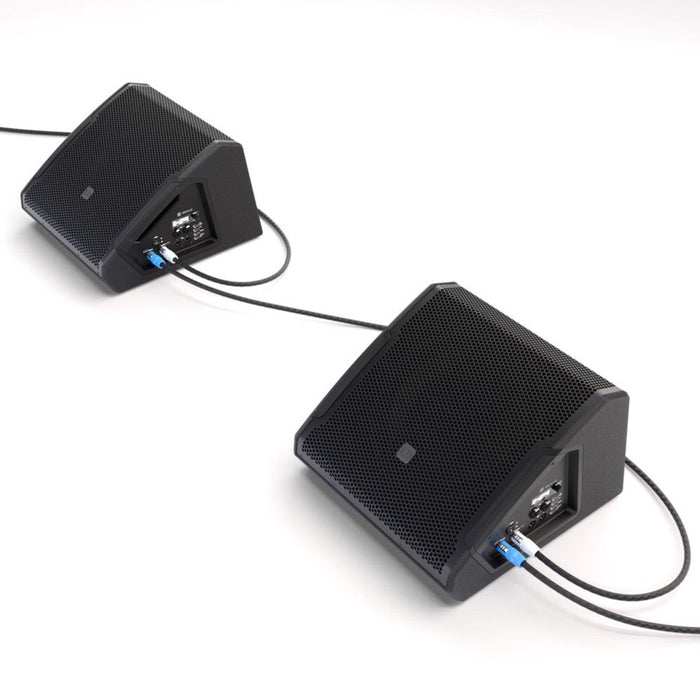

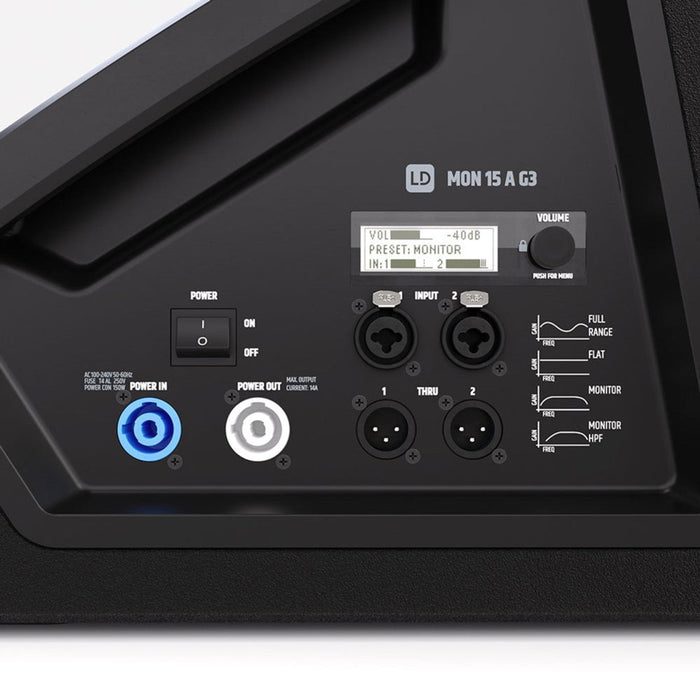

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
Compact high-performance stage monitor with top-of-the-range technologies
Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL

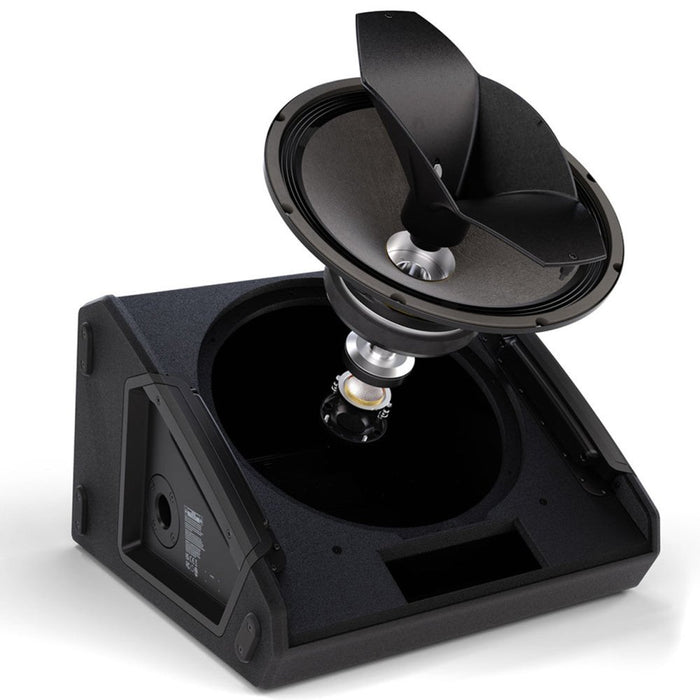

Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
15" woofer with 3" voice coil
Optimised, practical radiation pattern due to 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
3-band EQ, Notch filter, 4 application presets and delay function
PowerCON compatible loop-through professional power connection
35 mm speaker stand flange for FOH applications
Durable Polyurea coating and heavy-duty front grille
Features
Product type
Stage monitors
Type
Powered
colour
Black
System output (RMS)
300 W
System output (Peak)
1200 W
Max. SPL Average (Sine burst)
122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)
129 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB)
58 - 18000 HZ
Frequency response (-10 dB)
48 - 20000 Hz
Crossover frequency
1300 Hz
Monitor angle
33°
Dispersion (H x V)
50° x 90°
Width
505 mm
Depth
517 mm
Height
340 mm
Features
3-band EQ (High, Mid, Low)
Features
Delay line
Features
Notch filter
Weight
23.15 kg
Low/mid woofer
Low/mid Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer type
Coaxial loudspeaker
Woofer voice coil
3 "
Woofer voice coil (mm)
75 mm
Cabinet construction
Bass Reflex
Cabinet material
15 mm MDF
Cabinet material
15 mm Birch Plywood
HF
Horn
CD Horn
Tweeter dimensions
1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Ferrite
Tweeter brand
Custom-made
Tweeter voice coil
1.75 "
Tweeter voice coil (mm)
44.45 mm
Amplifier module (integrated)
Amplifier
Class D
Protection circuits
Multiband limiter
Protection circuits
over voltage
Protection circuits
over-current
Protection circuits
thermal overload
Operating Temperature
0 - 40 °C
Humidity Range
< 80 % ( non-condensing )
Fuse
T4AL 250 V
Controls
Rotary/push encoder
Controls
On / off switch
Indicators
LC display
Power supply
SMPS
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
150 W
Power in / out
PowerCON compatible
Line inputs
2
Line input connectors
6.3 mm jack
Line input connectors
XLR - combo
Line thru
2
Line through connector
XLR
Features 3-band EQ (High, Mid, Low) Features Delay line Features Notch filter Weight 17.4 kg
