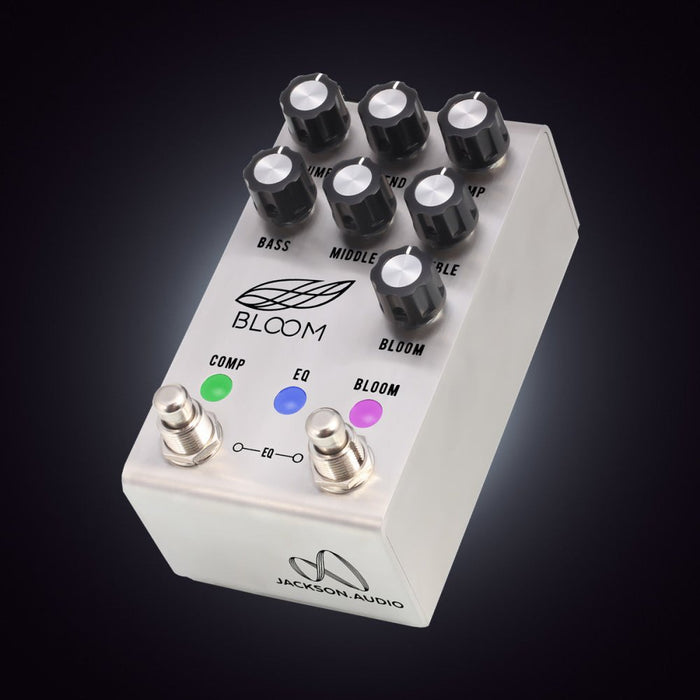

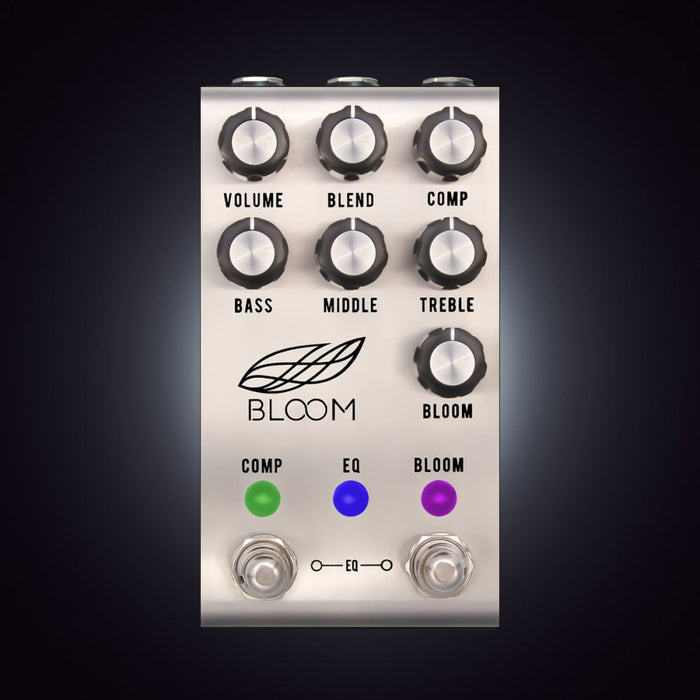

Jackson Audio | BLOOM V2 MIDI | Compressor, EQ, Boost & Bloom w/ MIDI Switch

BEST SELLER
BEST SELLER
$489.00

or 4 fortnight payments of $122.25 AUD with More info



COMPRESSOR OVERVIEW

As a compressor, the Bloom features an optical limiting circuit that takes its inspiration from compressors designed during the golden age of vacuum tube circuits.

The Bloom is ideal for players who typically don’t use compression but want the ‘mastered’ response that optical compression gives a guitarists tone.

The frequency response of the compressor section is flat as a board and does not boost or cut any of your highs or lows.

Just like a well designed compressor should, the Bloom alters the dynamics of the guitar signal and not the tone. A good compressor should be felt and not heard!

DUAL COMPRESSION – AKA SLIDE MODE

When set to compression preset 5 or “Slide Mode” the aux compressor circuit is activated and placed in series ahead of the primary compressor. The tonal result of using two compressors in series is that notes will sustain almost endlessly and oftentimes break out into harmonic feedback while still remaining clear and clean! It ‘feels’ like you have an overdrive pedal on but the tone is still clean with endless sustain!

Hidden inside the Bloom, is a auxiliary compressor circuit that is identical to the main compressor circuit however without externally mounted controls. This aux compressor, which is set with a fast attack of 7.5ms, has two trimmers mounted on the right side of the pedal and are accessible when the cover is removed. These trimmers allow you to adjust the COMP and VOLUME settings of the aux compressor when using compression presets 5 and 6. More on compression presets later.

CLEAN BLEND

When more subtlety is desired from the compression circuit, we have included a BLEND control that allows the player to blend in their clean, unaffected signal back in with the compressed signal. One of the best features of the Blend control is that it allows the player to dial in a really aggressive compression setting and then blend some of their clean signal back in with it. This produces the effect of giving the note a very natural attack while slowly fading in the sustain that comes from running a high compression setting.

MIDI CHANNEL

By default, the BLOOM v2 – MIDI ships with MIDI Channel 1 being the selected channel. This can be changed by pressing and holding both the COMP and BLOOM footswitches while applying power to the BLOOM. While holding these footswitches down adjust the BLOOM knob. All the way down is MIDI Channel 1…all the way up is MIDI Channel 16 with channels 2-15 being located evenly between those two points as you rotate the BLOOM knob.

You’ll notice that as you rotate the BLOOM knob, the BLOOM LED will flash to indicate which MIDI channel you have selected. IE – 7 flashes = MIDI Channel 7. After the LED flashes, we inserted a 2 second pause so you could tell when the LED was finished flashing. The LED will continue flashing as long as you are holding down the two footswitches. Once you have selected the MIDI channel you want and have verified it by counting the flashes, simply release the two footswitches and the pedal will save this MIDI Channel to the internal EEPROM on the microprocessor and reboot.

MIDI DETAILS

Accessing the new MIDI features of the BLOOM is done by a combination of Program Changes as well as Control Changes. Below is a list of the features of the BLOOM that can be accesed via MIDI and how to access them.

PROGRAM CHANGE #1 – LIMITER MODE
PROGRAM CHANGE #2 – COUNTRY MODE
PROGRAM CHANGE #3 – R&B MODE
PROGRAM CHANGE #4 – BALLAD MODE
PROGRAM CHANGE #5 – JOEY (SLIDE) MODE
PROGRAM CHANGE #6 – AUX MODE

CC #1 – COMP ON/OFF (value of 127 = ON /value of 0 = OFF)
CC #2 – EQ ON/OFF (value of 127 = ON /value of 0 = OFF)
CC #3 – BOOST ON/OFF (value of 127 = ON /value of 0 = OFF)
CC #4 – midiBoost ON/OFF (value of 127 = ON /value of 0 = OFF)
– midiBoost determines what has control over the boost level; midi or the bloom knob on the pedal.
CC #5 – midiBoost expression (value of 0-127)
– midiBoost expression determines the boost level. This can be either a set value or can be expressed via a MIDI expression pedal

COMPRESSION CIRCUIT FEATURES:

  • Transparent Optical (LA-2A style) limiting circuit with huge dynamic range.
  • Dual Compressors for the ultimate slide tone.
  • Blend control that allows the player to blend in their clean (uncompressed) tone with their compressed tone.
  • Six instant access presets with the following settings
  • Side Chain jack/loop that allows an external source (click track etc) to trigger compression. Side Chain loop can also be used with an external effect (an EQ for example) to tailor the response of the compression.

3 BAND EQUALIZER OVERVIEW

The EQ circuit features a studio grade EQ that gives tremendous tonal flexibility to the BLOOM.

Based on the legendary Baxandall EQ that is featured in countless studio EQ’s, the Bloom EQ takes this circuit and tailors it for guitarists!

We spent tons of time on this EQ dialing it in so it would hit all the frequencies that guitarists need to adjust, and then sweetened it by removing the ear fatiguing highs and lows that can appear at extreme settings.

EQUALIZER CIRCUIT FEATURES:

  • Studio grade EQ with High Bandwidth and Flat Response at 12:00
  • +/- 12dB Boost/Cut per control
  • Center Detents on the pots that make it easier to get back to a neutral or flat response.

BLOOM OVERVIEW

The Bloom circuit is one of the most exciting parts of the Bloom! Designed as both a level booster and sustainer, the Bloom can work as a set boost by quickly pressing and releasing the Bloom footswitch, or by pressing and holding the Bloom footswitch, the Bloom circuit will slowly ramp up the level to the level set by the boost.

This ramp up time, which is programmable, can be used to increase sustain on held notes or to match the dynamics in a song. Once the ramp up is complete, pressing and holding the Bloom footswitch again will fade the level back down to unity.

BLOOM CIRCUIT FEATURES:

  • 0-20dB Boost Available (quick press on Bloom footswitch)
  • 0-20dB Bloom Available (long press on Bloom footswitch)
  • True Boost Circuit. Fully counter clockwise position is unity level.
  • Totally flat EQ down to sub audio frequencies.
  • Programmable Ramp Up/Down Time.

EXTRA BLOOM FEATURES:

  • Programmable True Bypass or Buffered Bypass
