Gsus4Cable Studio Series GSI-01 Instrument (Mogami+Neutrik)

by Gsus4
1 UNIT LEFT!
1 UNIT LEFT!
$58.00

or 4 fortnight payments of $14.50 AUD with More info

All Hand-Soldered by Gsus4, Lifetime Guaranteed by Gsus4.

Contact us for customised length :)



Specification

- Mogami 2524

- Neutrik NP2X-B (Mono Gold Jack) for both end

or Optional Neutrik NP2X-AU (Mono SILENT Gold Jack) on one end



Studio Standard. Top-quality Instrument Cable
Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow.

That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc.

Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

Gsus4 is offering Lifetime guarantee on this cable.

Cable's not working? Just bring one in, we'll fix it up or exchange it to new one for you!

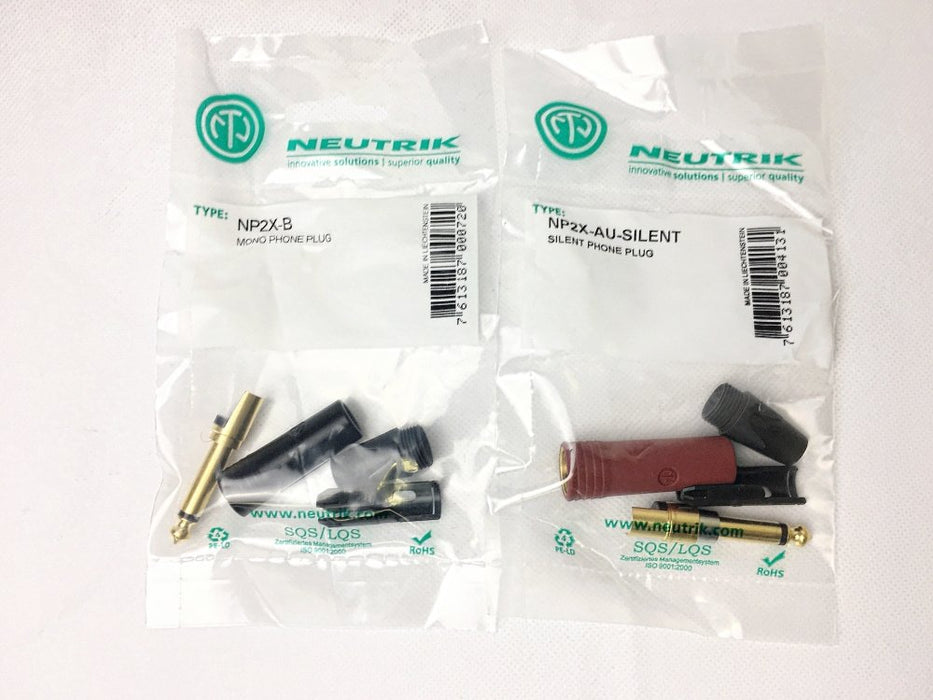

Neutrik NP2X-B

2 pole 1/4" professional phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
-Extra slim 1/4" plug for highest packing density
-Robust diecast shell in stylish design
-Proven chuck type strain relief for reliable cable retention
-Sleek design for best handling convenience
-Precision machined one-piece contacts - avoid hook up of tip contact





NP2X-AU-SILENT

2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10 '000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.

Features & Benefits
-Avoid pops and squeals
-Hermetically sealed switching contacts
-Lifetime beyond 10'000 mating cycles
-Slim plug with industry proven and reliable chuck type cable strain relief
-Sleek attractive design for convenient handling and connections
-Rubber overlay on straight housing for best shock-protection and reliability
-L-D versions available which accommodates cable O.D. up to 8 mm

ATTENTION!
For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.
Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.
