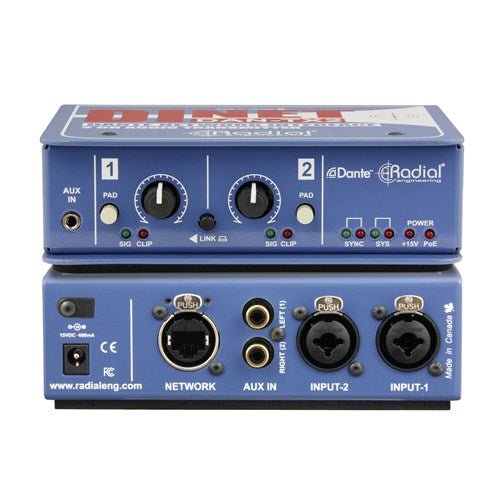

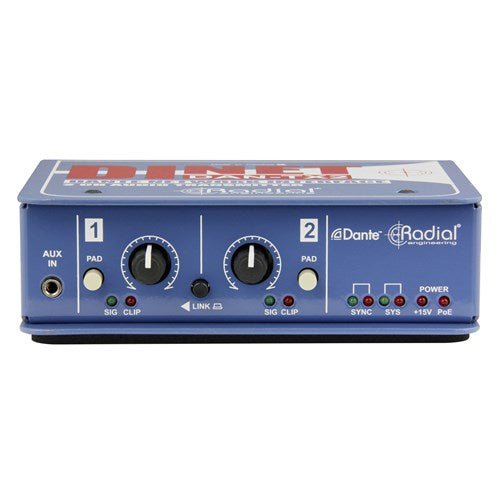

Radial | DiNET DAN TX2 | 2-Channel Dante Network Transmitter
or 4x fortnight payments of
$218.75 AUD
with
ⓘ
Conveniently route a stereo analog line-level source into your Dante or AES67 audio network with the Radial Engineering DiNET DAN-TX2, a compact two-channel Dante network transmitter designed for use in live sound, broadcast, and high-tech studio productions. The DAN-TX2 offers linkable trim controls and -18 dB pads for simple management of your gain stage, and a host of LEDs for indication of signal status, power, sync, and more.
Connect a balanced line-level signal from a mixer or audio interface to the XLR-1/4” combo jacks, or hook up an unbalanced source, such as a CD player or mobile device, to the RCA or 3.5mm inputs. The built-in, high-resolution A/D converter outputs Dante-/AES67-compliant digital signal at up to 24-bit / 96 kHz resolution to the locking etherCON jack, allowing easy integration into your audio network.
The DiNET DAN-TX2 features a powder-coated, 14-gauge steel enclosure for rugged durability and tour-worthy dependability. Power can be supplied via the included 15 VDC power supply or PoE (Power over Ethernet).
- Converts a stereo analog line-level source to a digital Dante/AES67 output
- Accepts line-level inputs via XLR-1/4” combo jacks, RCA coaxial inputs, or a 3.5mm mini jack
- Built-in A/D converter supports resolutions up to 24-bit / 96 kHz
- Locking etherCON output easily connects to a Dante or AES67 audio network via a Cat5e or Cat6 Ethernet cable (available separately)
- Linkable trim controls provide adjustable gain (up to 10 dB of boost or cut)
- Switchable -18 dB pad mitigates distortion when routing high-level sources
- LED indicators for signal presence, clipping, power, sync, and Dante processor status
- Integrated cable clamp secures power supply cable to prevent accidental disconnection
- Supports operation via PoE or the included power supply
- Sturdy 14-gauge steel enclosure finished in a durable powder coat
- Nonslip pad provides electrical and mechanical isolation and keeps the unit from sliding around
