Complete Guide: Guitar Pedals to Vocals, Microphones, Saxophone & Acoustic Instruments - Franklin Audio, Radial & Eventide

Guitar pedals are not only for electric guitar anymore. Delay, reverb, chorus, pitch shifting, saturation, looping and experimental effects can be incredibly powerful on vocals, saxophone, trumpet, violin, cello, acoustic guitar, percussion and even spoken word. The problem is not whether guitar pedals can sound good on those sources. The real question is how to connect them properly.

Most guitar pedals are designed for an unbalanced, high-impedance instrument-level signal. A microphone, on the other hand, usually outputs a balanced mic-level signal through XLR. If you plug a microphone directly into a standard guitar pedal with a simple adapter cable, the level, impedance and noise performance will usually be wrong. You may get weak volume, hiss, hum, tone loss or feedback issues.

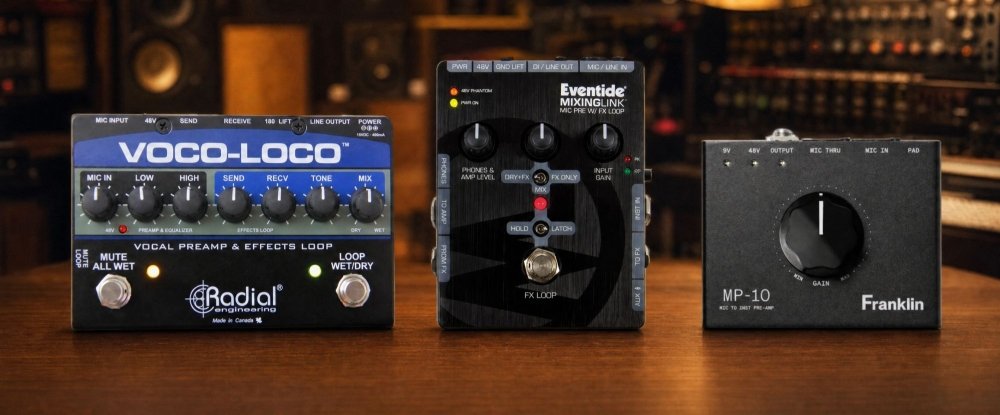

That is where dedicated mic-to-pedal interfaces become extremely useful. Units like the Radial Voco-Loco, Eventide MixingLink and Franklin Audio MP-10 are designed to bridge the gap between microphones and pedalboards, letting vocalists, horn players, string players and acoustic musicians use creative guitar pedals in a safer, cleaner and more practical way.

Why You Cannot Usually Plug a Microphone Straight into Guitar Pedals

A standard live vocal microphone such as a dynamic stage mic sends out a low-level balanced signal. A condenser microphone may also require 48V phantom power. Guitar pedals are normally expecting something completely different: an unbalanced instrument-level signal from a guitar, bass, synth or pedalboard.

The basic issue looks like this:

Microphone → balanced XLR mic-level signal → needs preamp and impedance/level conversion → guitar pedal input

Without the correct interface, the system may technically pass audio, but it will rarely perform properly. The sound can be too quiet, noisy, thin or unstable. If you are using a condenser microphone, you also need phantom power before the pedal chain. And if you are sending the result to a mixer, audio interface or PA system, you usually want to convert the signal back into a balanced output again.

What a Mic-to-Pedal Interface Actually Does

A proper mic-to-pedal interface gives you the missing pieces between the microphone and the pedalboard. Depending on the model, it may provide a microphone preamp, 48V phantom power, a send and return effects loop, wet/dry blend control, balanced output, DI functionality, ground lift, polarity reverse and footswitch control.

In simple terms, it allows you to run a signal chain like this:

Microphone → mic-to-pedal interface → guitar pedals → mic-to-pedal interface → mixer / PA / audio interface

This is especially useful for musicians who want to bring pedalboard-style control to non-guitar instruments. A vocalist can step on delay or reverb for a chorus. A sax player can add octave, modulation or ambient trails for a solo. A violinist or cellist can create cinematic textures with shimmer reverb, freeze, looping or granular effects. A worship leader can use pedals for atmospheric vocal moments without needing a full studio-style rack system.

Radial Voco-Loco: The Rugged Live Performance Solution

The Radial Voco-Loco is one of the most established solutions for performers who want to use guitar pedals with vocals, brass, woodwind, harmonica or acoustic instruments. It is built around the idea of giving microphone users pedalboard control in a live environment.

The Voco-Loco gives you an XLR microphone input, 48V phantom power, an effects loop and a balanced XLR output. It also includes practical live features such as an input pad, 180-degree polarity reverse, ground lift and a rugged steel chassis. This makes it particularly attractive for touring musicians, churches, venues and players who need a dependable live tool rather than a fragile studio-only solution.

One of the strongest reasons to choose the Voco-Loco is its performance workflow. You can leave your pedals connected in the effects loop and bring them in when needed, instead of having to route your vocal or sax signal through a pedalboard permanently. This is much more practical on stage, especially when you only want effects for certain parts of a song.

For vocals, the Voco-Loco is excellent for delay throws, subtle chorus, octave textures, filtered sections or saturated special effects. For saxophone or trumpet, it opens the door to wah, delay, harmonizer, octave, tremolo and ambient reverb sounds that would normally be associated with guitar or synth players.

Best for: live vocalists, sax players, brass players, worship teams, touring musicians and anyone who wants a rugged foot-controlled mic effects loop.

Shop Radial Voco-Loco at Gsus4

Eventide MixingLink: The Compact Audio Toolkit

The Eventide MixingLink is more than just a mic-to-pedal box. Eventide describes it as a stompbox-sized audio toolkit, and that is a good way to think about it. It combines a microphone preamp, 48V phantom power, effects loop, DI-style output, headphone monitoring, instrument input and flexible routing options into one compact unit.

The MixingLink is especially strong if you want one box that can solve multiple problems. It can be used to connect a microphone to guitar pedals, but it can also function as a compact mic preamp, instrument DI, signal splitter, re-amp tool, practice amp interface, headphone monitor or small-format mixer.

One of the standout features is the amount of clean gain available for microphones. The MixingLink is designed to work with a wide range of microphones, including condenser and ribbon microphones, and provides up to 65dB of clean gain. It also offers 48V phantom power when powered from its external power supply, making it suitable for condenser microphones in live and studio contexts.

The effects loop can be controlled by a footswitch in either latching or momentary style operation, which is very useful for performance effects. You can set up a delay, reverb or modulation chain and bring it in only when required. The mix control also supports different operating modes, including blending effects with the dry signal or running a fully wet effects sound.

The Eventide MixingLink is a particularly good choice for singer-songwriters, acoustic players, solo performers and studio users who want flexibility in a small box. If you are building a compact rig around a microphone, acoustic guitar and a few pedals, the MixingLink can become the centre of the system.

Best for: vocalists, singer-songwriters, acoustic guitarists, studio users, solo performers and musicians who want one compact utility box for many signal-routing jobs.

Shop Eventide MixingLink at Gsus4

Franklin Audio MP-10: Simple Mic-to-Pedal Conversion

The Franklin Audio MP-10 is designed around a very direct idea: plug any microphone into your favourite pedals. It provides a transparent, high-headroom microphone preamp with phantom power and handles the conversion required to get a mic signal into guitar pedals properly.

Compared with the Radial Voco-Loco and Eventide MixingLink, the MP-10 is more focused on simplicity. It is not trying to be a full mini-mixer or a large live control centre. It is made for players who want a clean and straightforward way to send a microphone into a pedalboard, while preserving the clean mic signal where needed.

This makes it appealing for creative studio users, experimental performers and musicians who want a compact way to process sources such as vocals, saxophone, snare drum, violin, cello or room microphones through guitar pedals. If your goal is simply to get a mic into pedals without overcomplicating the rig, the MP-10 makes a lot of sense.

Best for: compact pedalboard users, studio experimentation, creative mic processing and players who want a simple mic-to-instrument preamp rather than a more complex routing box.

Which One Should You Choose?

Best Guitar Pedals to Use with Vocals, Sax and Strings

Delay

Delay is one of the most useful effects for vocals, saxophone and strings. A short slapback delay can thicken a vocal. A dotted eighth or quarter-note delay can create movement in a worship or ambient context. Longer delays can turn sax or violin lines into atmospheric layers.

Reverb

Reverb is almost always useful, but the key is control. On vocals, too much reverb can quickly make lyrics unclear. On sax, violin or cello, a lush reverb can create beautiful cinematic space. Shimmer, plate, hall and cloud-style reverbs are especially effective for ambient music.

Modulation

Chorus, vibrato, phaser, rotary and tremolo can sound amazing on non-guitar sources. A subtle chorus can widen a vocal. Rotary-style modulation can give saxophone a vintage organ-like character. Tremolo can create rhythmic movement on strings or spoken word.

Pitch and Octave

Pitch effects can be dramatic and very musical when used carefully. Octave-down effects can make sax or vocal lines sound huge. Harmonizers can add synthetic harmony. Micro-pitch effects can add width and depth without sounding too obvious.

Drive, Fuzz and Saturation

Drive can be powerful, but it needs restraint. A little saturation can add urgency and texture to vocals, saxophone or violin. Heavy fuzz can be incredible for experimental sounds, but it can also create feedback and harshness very quickly. For live use, start subtle and increase the effect gradually.

Looping, Freeze and Ambient Effects

Loopers, freeze pedals and ambient texture pedals can completely change the role of a vocalist or acoustic instrumentalist. A singer can build pads under a song. A sax player can create drones. A violinist can layer sustained textures behind a band. This is where mic-to-pedal setups become genuinely creative rather than just practical.

Example Signal Chains

Vocal Delay and Reverb Setup

Vocal microphone → Radial Voco-Loco or Eventide MixingLink → delay pedal → reverb pedal → mixer / PA

This setup is ideal for singers who want to control their own vocal effects on stage. Keep the effects tasteful and avoid washing out the main vocal unless you are using the sound for a specific creative moment.

Saxophone Ambient Setup

Sax microphone → mic-to-pedal interface → octave / modulation → delay → reverb → PA

This chain can turn a saxophone into a huge ambient lead instrument. It works especially well for instrumental worship, cinematic music, post-rock and experimental performance.

Violin or Cello Texture Setup

Instrument microphone → mic-to-pedal interface → chorus / vibrato → shimmer reverb → looper → PA

Strings respond beautifully to modulation and reverb. For live use, be careful with gain staging and stage volume, especially if the instrument is mic'd rather than using a pickup.

Acoustic Guitar with Microphone and Pedals

Acoustic guitar microphone → Eventide MixingLink → compressor → delay → reverb → mixer

This setup is useful when you prefer the natural sound of a microphone over an acoustic pickup but still want pedalboard control. The MixingLink is particularly useful here because it can handle several routing and monitoring tasks in one compact unit.

Common Mistakes to Avoid

• Using only an adapter cable: XLR-to-jack cables do not solve level, impedance or gain-staging problems by themselves.
• Forgetting phantom power: Condenser microphones require phantom power from a suitable source.
• Running too much gain: Overloading pedals with mic preamp gain can create distortion, noise or feedback.
• Using too much wet signal live: Big ambient effects sound great alone, but can disappear or muddy the mix with a full band.
• Ignoring feedback control: Vocal mics, sax mics and string mics can feed back more easily when delay, reverb or drive are added.
• Using long unbalanced cable runs: Keep pedalboard cable runs sensible and return to a balanced output before going long distances to the mixer.

Can You Use Guitar Pedals with a Condenser Microphone?

Yes, but only if the system provides proper 48V phantom power before the pedal chain. The Radial Voco-Loco, MP-10 and Eventide MixingLink provide phantom power, making them suitable for condenser microphone setups when used correctly.

Can You Use Guitar Pedals with Saxophone?

Absolutely. Saxophone is one of the best instruments for this kind of setup. Delay, wah, octave, chorus, pitch shifting and reverb can all work beautifully on sax. The key is to use a proper microphone interface so the signal hits the pedals at the correct level and returns to the PA cleanly.

Can You Use Guitar Pedals with Violin, Cello or Strings?

Yes. Strings can sound incredible through ambient and modulation pedals. Violin and cello work especially well with reverb, delay, shimmer, freeze, looping and subtle saturation. If you are using a microphone rather than a pickup, a mic-to-pedal interface is strongly recommended.

Can This Work in Church or Worship Settings?

Yes, and it can be very effective when used tastefully. Worship vocalists, sax players, violinists and acoustic players can use pedals to create ambient intros, prayer moments, instrumental sections and controlled special effects. The most important thing is to avoid over-processing the main vocal. Effects should support the song, not bury the message.

Final Thoughts

Using guitar pedals with vocals, microphones, saxophone, strings and acoustic instruments is one of the most creative ways to expand a live or studio rig. But the connection method matters. A proper mic-to-pedal interface protects your signal quality, gives you better gain staging and makes the whole setup much more reliable.

If you want a rugged live performance tool, the Radial Voco-Loco is a strong choice. If you want maximum flexibility in a compact unit, the Eventide MixingLink is hard to beat. If you want a straightforward mic-to-pedal preamp, the Franklin Audio MP-10 is also worth considering.

Whether you are a vocalist, saxophonist, string player, acoustic guitarist, worship musician or experimental sound designer, the right interface can open up an entirely new world of pedal-based sounds.
