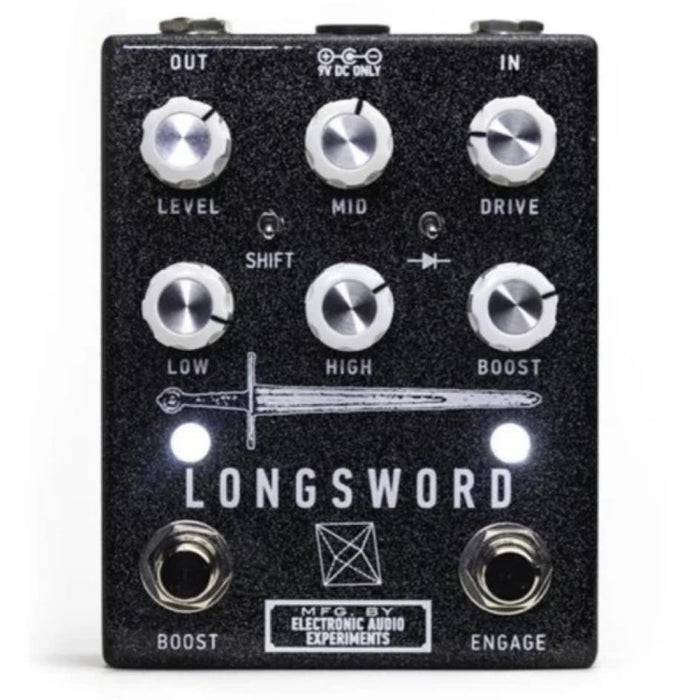

Electronic Audio Experiments Longsword Overdrive & Boost
or 4x fortnight payments of
$134.25 AUD
with
ⓘ
The Electronic Audio Experiments Longsword is a highly flexible op-amp drive and distortion pedal built to cover everything from clean boost and light grit through to thick, aggressive high-gain sounds. Cascaded gain stages provide a huge range of drive while retaining the clarity and tonal control needed to sit properly in a full mix.
A powerful three-band EQ sets the Longsword apart from more conventional overdrives. Low and High shelving controls are paired with an active Mid boost/cut and adjustable Shift control, allowing you to choose exactly where the midrange is shaped. Whether you need to tighten up a dark amp, push guitars forward through dense instrumentation or build a huge low-mid-heavy distortion sound, the Longsword gives you extensive control.
The three-position Diode switch changes the pedal’s clipping response and feel. Choose MOSFET clipping for moderate compression, remove the clipping diodes for maximum headroom and an open response, or select silicon clipping for a more compressed and saturated character. A dedicated footswitchable Boost circuit sits at the front end and provides up to 20dB of additional gain for pushing the Longsword into heavier territory.
With its broad frequency response, the Longsword works equally well with guitar, baritone and bass. The latest V4.6 revision also introduces intelligent momentary/latching footswitch operation and improvements to reduce switching noise, making an already versatile drive platform even more refined.
• Wide gain range from clean boost to heavy overdrive and distortion
• Cascaded gain stages for flexible drive shaping
• Level and Drive controls
• Low and High James/Baxandall-style shelving EQ
• Active Mid boost/cut control
• Shift control selects the frequency affected by the Mid control
• Three-position clipping selector
• MOSFET clipping: medium compression
• No-diode mode: minimal compression and increased headroom
• Silicon diode clipping: maximum compression and saturation
• Dedicated footswitchable front-end Boost
• Boost control provides up to 20dB of additional gain
• Suitable for guitar, baritone and bass
• Intelligent momentary/latching footswitch behaviour on V4.6
• Relay-switched true bypass
• Input impedance: 500kΩ @ 1kHz
• Output impedance: 1kΩ @ 1kHz
• Power: 9V DC, centre negative
• Current draw: 95mA
• Regulated isolated power supply rated for at least 100mA recommended
