Palmer | PWT12IEC | Universal Pedalboard Power Supply | Isolated 12-Output w/ USB

NEW ARRIVAL
ON SALE!
by Palmer
Original price $445.88
Original price $445.88 - Original price $445.88
Original price $445.88
Current price $379.00
$379.00 - $379.00
Current price $379.00

or 4x fortnight payments of $94.75 AUD with

Leave the noise behind

A pedalboard can be a noisy place, and choosing the right power supply can make a big difference to the noise level and clarity of your guitar tone. That's where the PWT 12 IEC comes in. With 12 high current, individually isolated, ultra low noise outputs - each with its own dedicated regulator and custom isolated transformer - the PWT 12 IEC represents the next generation of Palmer® isolated pedal power supplies. Featuring two variable voltage outputs, the PWT 12 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom to run your overdrive pedals, as well as the "dying battery" sound that many guitarists love.In addition, the Palmer PWT 12 IEC has a USB C and USB A output with 18W so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 12 IEC to address guitarists' main pain points when it comes to powering their precious effects pedals, so you can perform with complete peace of mind, so you can perform with complete peace of mind, knowing that your pedals and rig will sound as good as they can.

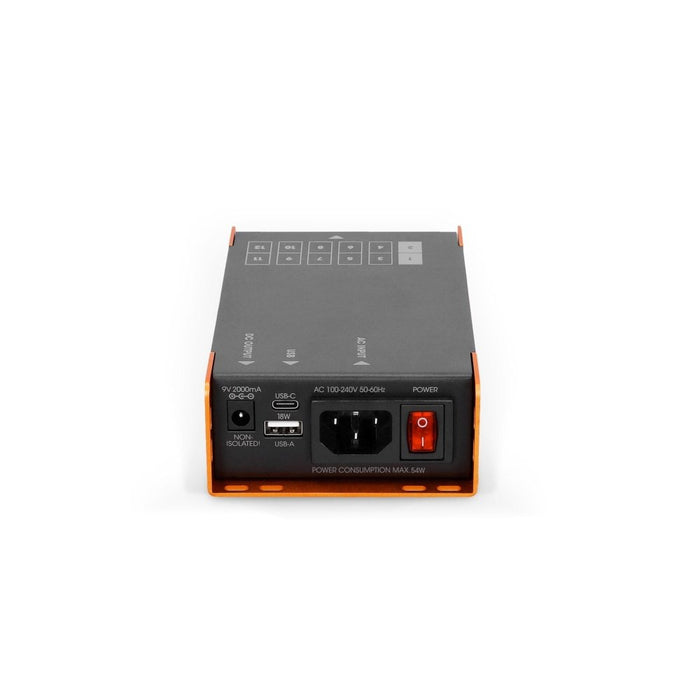

- Universal powersupply with IEC mains socket
- 1x 9V DC 2000mA non isolated power outlet for e.g. a PWT04

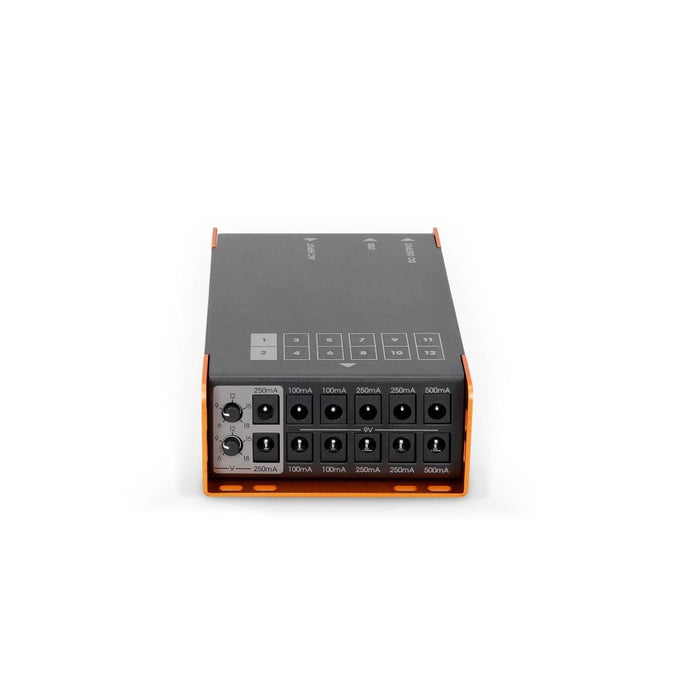

- 12x single isolated, centre negative 9V DC outlets
- 2x variable voltage outlets 6 - 18 V
- USB C and USB A power outlets with 18W
- Short circuit and overload protection for each outlet
Product type Power Supplies
Input voltage AC 100 - 240 V
single isolated DC outputs 12
Output 1-2 6 - 18 V (250 mA max)
Output 3-6 9 V (100 mA max)
Output 7-10 9 V (250 mA max)
Output 11-12 9 V (500 mA max)
non-isolated DC output 9 V (2000 mA max)
Output connectors 2.1 x 5.5 mm
Output voltage 6 V - 18 V
Max. Output power 36 W
Max. Power consumption 54 W
Individually isolated outputs Yes
Polarity Center negative
USB-C / USB-A output power 18 W max.
Indicators Power
Controls Mains switch, output voltage selector and switch
Depth 93 mm
Width 168 mm
Height 42 mm
Weight 0,55 kg
Accessories Mains cable, 15x DC cable (30 / 60 / 90 cm), 4x rubber feet
Noise < 40 µV (output 1 - 12)
Ambient temperature (in operation) 0 - 40 °C
Relative Humidity < 80 % ( non-condensing )
